What Is Conformal Coating on a PCB? Uses and Limits

A conformal coating, which is a very thin polymer layer, is applied to selected surfaces of an assembled PCB. Its purpose is to reduce specific environmental and electrical surface risks by following the contours of components, leads, and solder joints. It is not solder mask or a bare-board surface finish, nor does it necessarily indicate that the finished product is waterproof (IPC-CC-830C).

The term “conformal” refers to the fact that the polymeric coating is designed to follow the contours of the assembly; however, this does not mean that all surfaces of the assembly will receive coating. In some cases, such as connectors, test points, sensors, thermal interfaces, and grounding contacts, there may be explicit specifications indicating what needs to be coated or what should be left uncoated. The following are critical factors affecting the final results associated with applying conformal coatings: surface preparation, choice of material, coating thickness, cure, coverage, inspection, enclosure design, and product testing.

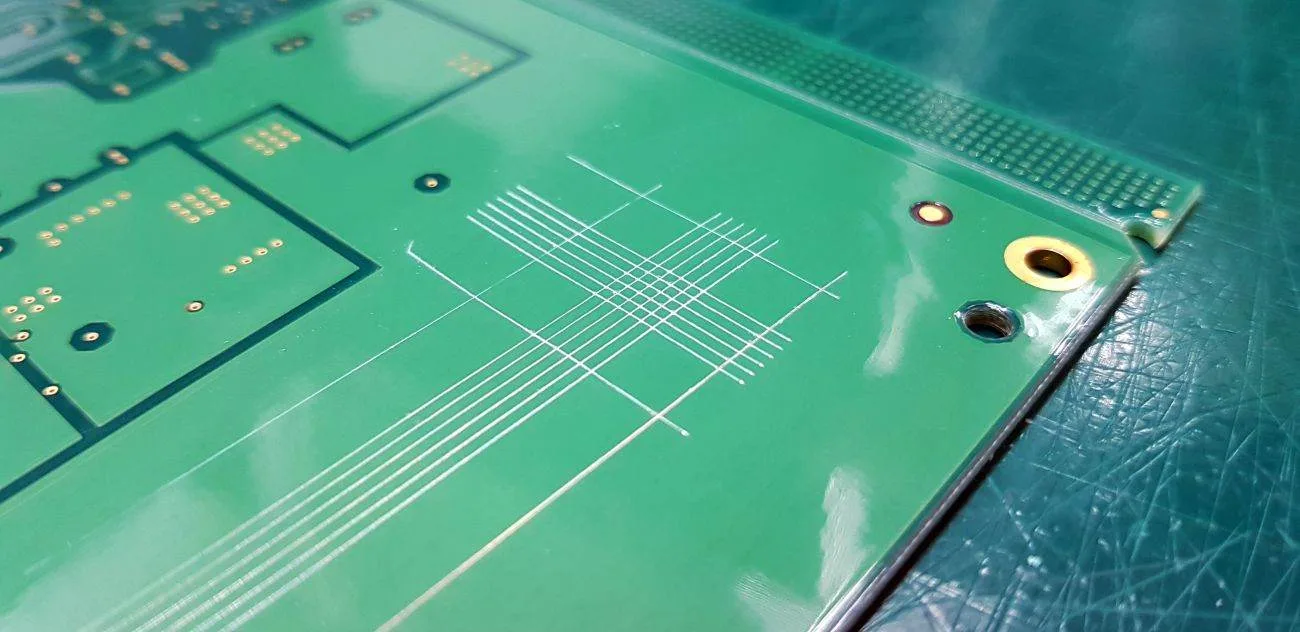

What Is Conformal Coating on a PCB?

A conformal coating is an electrically insulating layer of polymeric material that is placed on specific defined areas of an assembled PCBA. The coating closely follows the topography of the PCBA instead of becoming a structural board layer. It may cover component bodies, conductors, leads, and solder joints, while functional interfaces remain exposed or carefully controlled.

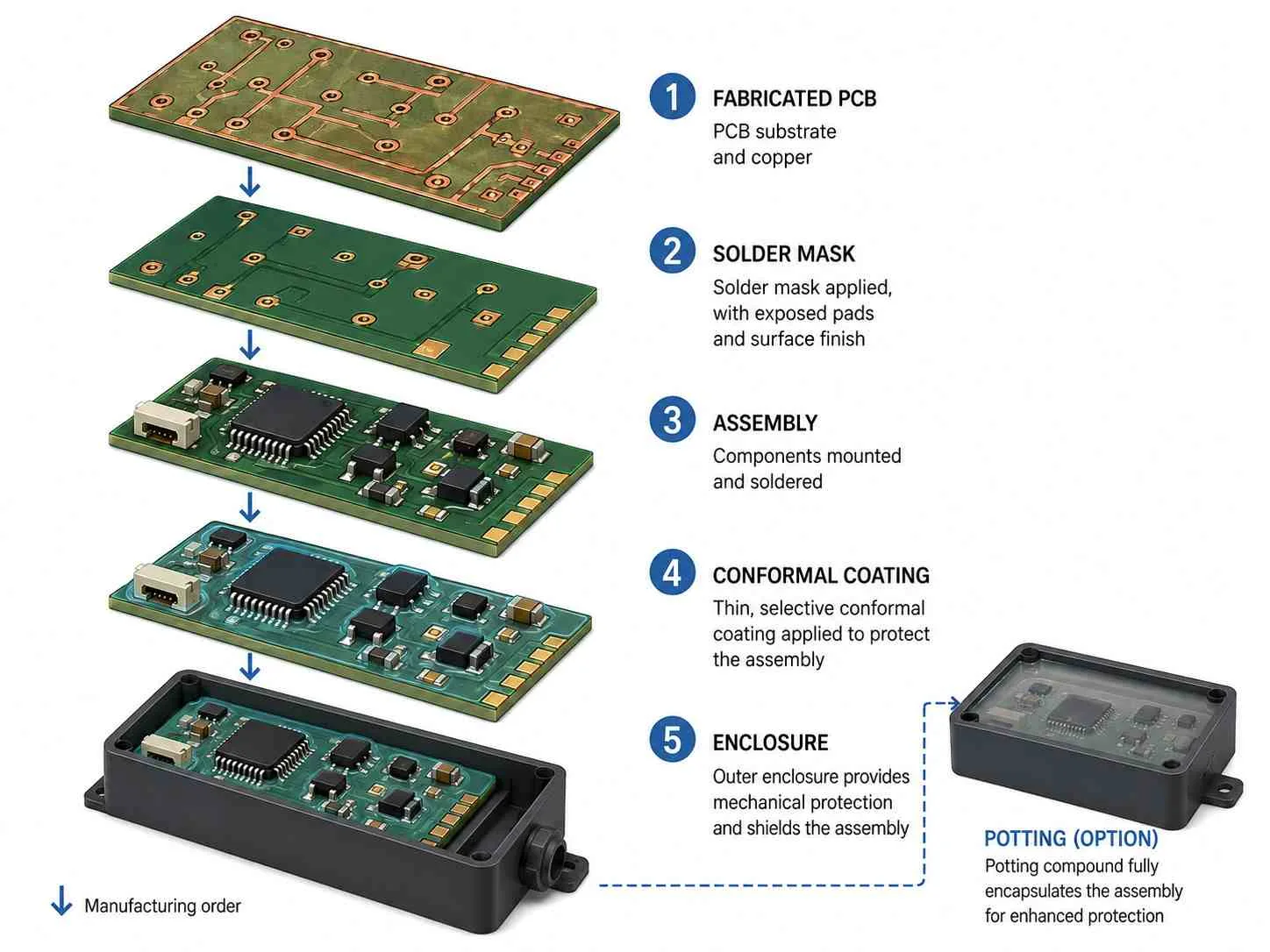

The substrate and copper form the fabricated PCB. Solder mask covers selected conductor areas, while surface finish protects exposed pads. Components and solder joints create the assembled PCBA. The conformal coating then provides an additional protective layer over specified assembly surfaces. An enclosure, or sometimes potting, forms a wider system boundary.

According to IPC-SM-840E, a PCB has solder mask applied to selected areas of its surface before it is fully assembled. A PCB surface finish protects exposed pads and contact features rather than the complete populated assembly.

Potting compounds are usually used to surround or fill a larger volume in an assembly with much more material. Neither the term “coating” nor the term “potting” proves that a waterproof assembly has been achieved.

What Does Conformal Coating Protect Against?

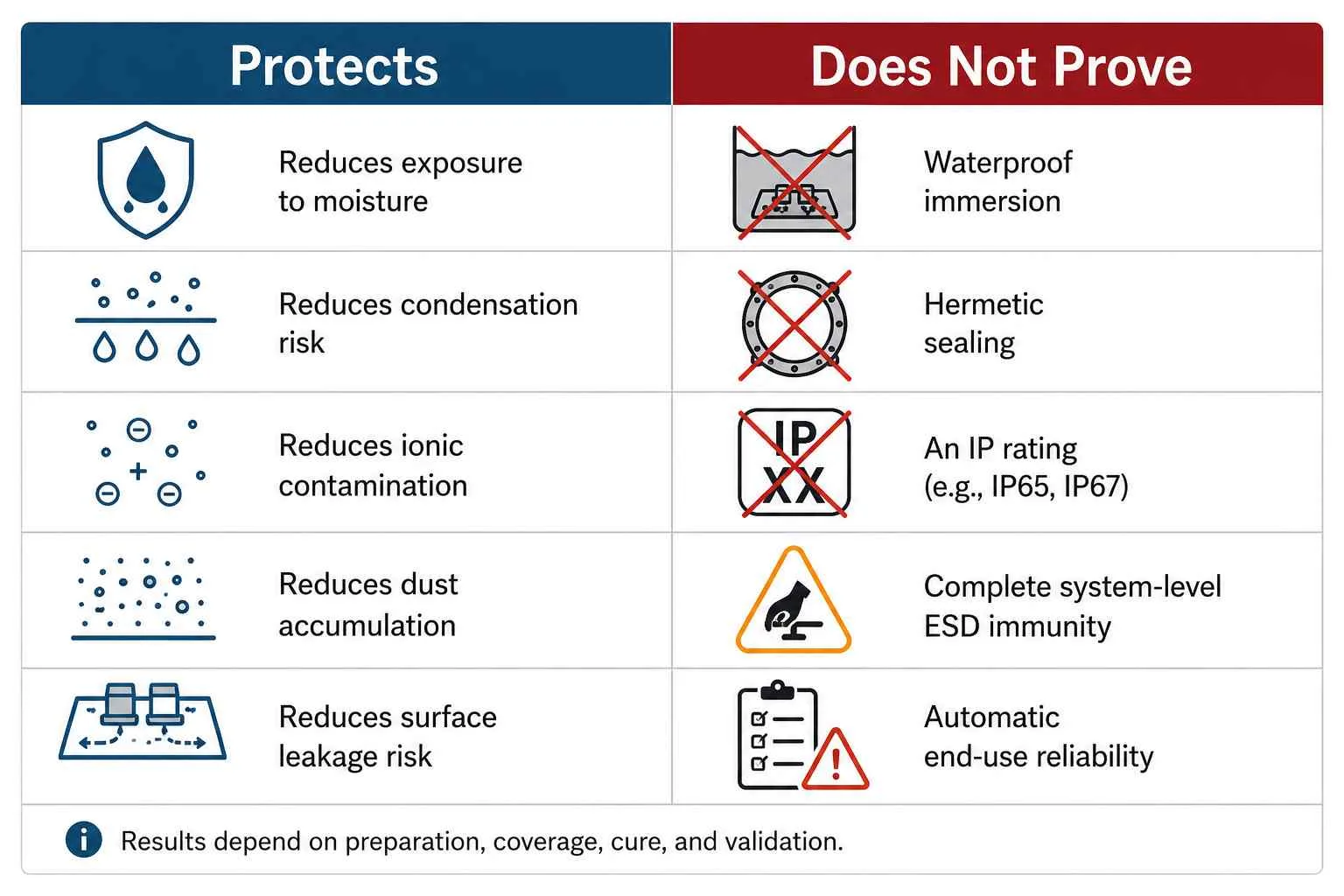

Conformal coatings can reduce the likelihood that specific circuit areas will come into contact with moisture, condensation, debris, ionic contamination, or compatible chemical exposure. Conformal coatings can help to reduce the likelihood of corrosion and surface leakage when the assembly is clean, dry, compatible, fully cured, and properly covered; however, a conformal coating cannot change an uncontrolled process into a reliable form of protection against environmental forces.

Moisture combined with ionic contaminants can produce electrically conductive paths on PCB surfaces. This moisture environment can create electrochemical migration and dendritic growth under an applied electrical bias. Contaminants may interfere with adhesion, while defects, edges, interfaces, and areas that are not covered may still define how an assembly’s performance is impacted.

A peer-reviewed cyclic-humidity study has demonstrated that moisture can reach PCB surfaces through the tested coatings, and the compatibility of no-clean flux residues with the conformal coating material affected the protection level provided by the coatings under specific test conditions. Likewise, the relationship between the surface-insulation behavior of conformal-coated PCBs and the control of contaminants located under the conformal coatings has been demonstrated in the CALCE study. Conformal coatings can be used to cover residue; however, conformal coatings will not make that residue clean.

Water Resistance, IP Rating, and ESD Limits

The terms “water resistance” and “IP rating” should not be confused with one another. IEC 60529 is the standard for “Degrees of Protection Provided by Enclosures (IP Code).” Thus, the protection classes in IEC 60529 concern the boundary of a product’s enclosure. Although board coatings can be part of the protection strategy, the finished enclosure and product must also demonstrate through appropriate design and test results that the applicable requirements are met.

IEC 61000-4-2:2025 is the international standard for ESD immunity testing of equipment at the equipment level, rather than a coating-only test. Protection devices, layout, exposed connectors and grounding can all still form part of the discharge path. According to Texas Instruments, exposed interfaces and protection placement near the source are also factors that must be considered in the overall ESD protection scheme (System-Level ESD Protection Guide). Although a dielectric film may affect a local discharge path, it cannot provide complete ESD control.

What Are the Main Types of Conformal Coating?

The main resin families commonly used to protect PCB assemblies include acrylic, silicone, urethane or polyurethane, epoxy and parylene. The resin selection for conformal coatings usually depends upon the expected exposure conditions, flexibility, chemical resistance, rework access, application method and specific product data, rather than just an industry-assigned label (Essential Guide to Conformal Coating).

UV-curable technologies, while specialized for their curing capabilities, are better treated as a curing or formulation category rather than a resin family equivalent to Acrylics, Silicones, Urethanes, Epoxies or Parylenes. Some UV systems use a secondary cure mechanism for shadowed areas, so each product has different cure requirements based on the manufacturer’s specifications (Essential Guide to Conformal Coating).

The selection tendencies shown in the table do not establish universal performance limits for all products; each product has specific temperature limits, dielectric strength, chemical compatibility and approved rework methods.

Which Areas of a PCB Should Stay Uncoated?

The coated areas of a PCB should include the specified surfaces that require the selected protection; however, connector mating surfaces or other identified “keep-out” areas must remain uncoated.

Coated, Controlled, and Uncoated Zones

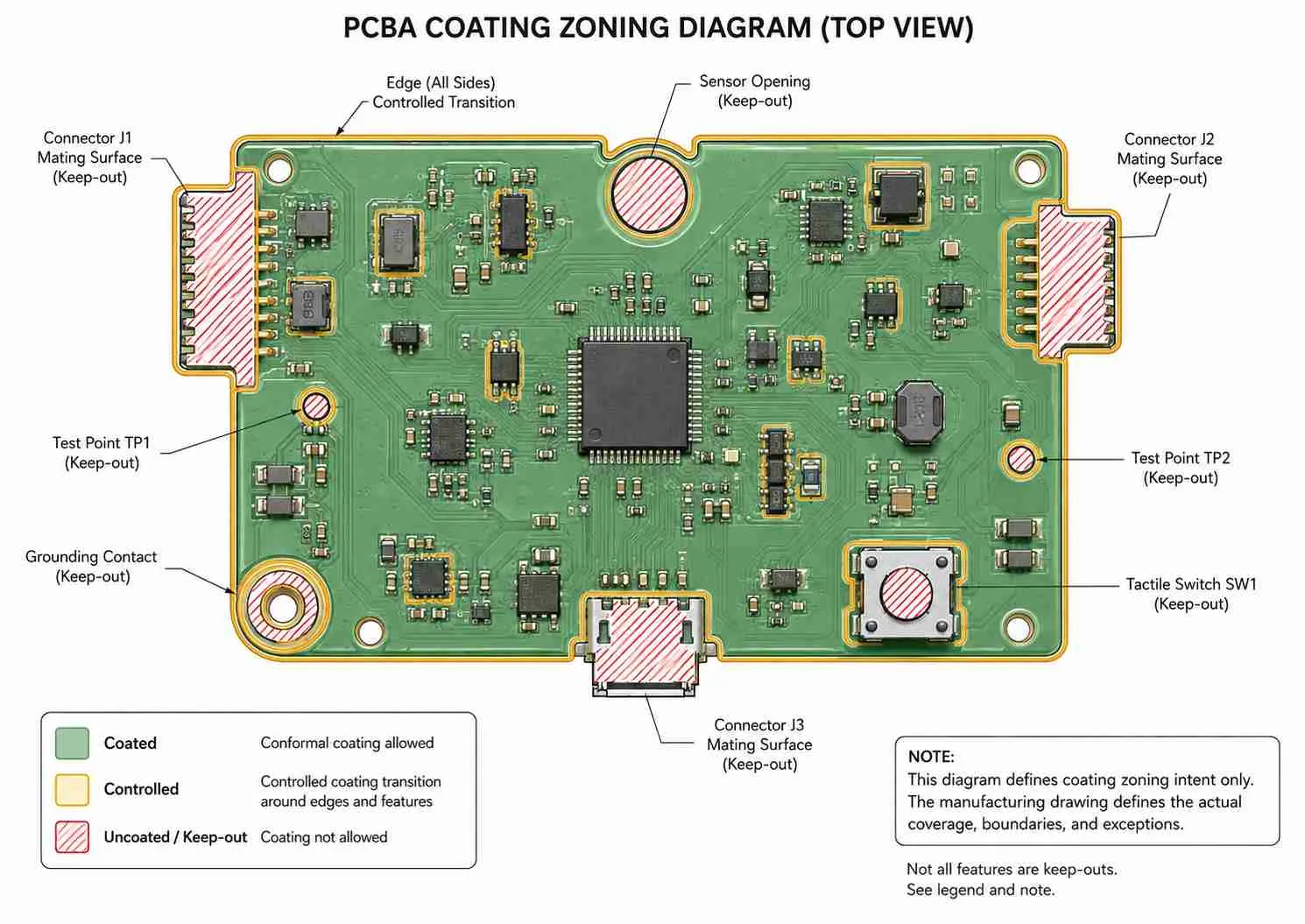

There are three distinct zones depicted on a coating drawing that will help to interpret a coating:

• The Coated Zone includes specified board surfaces where the selected barrier must be applied. These surfaces may include conductors, component bodies, leads and solder joints.
• The Controlled Zone includes edges, component interfaces, high-profile geometries and transition zones that require more explicit control over capillary flow, coating thickness and local accumulation of material.
• The Uncoated Zone includes all required keep-out areas, including connector contacts and any specified test, sensing, mating, grounding, switching or heat-transfer surfaces.

NASA-STD-8739.1B, as part of NASA’s workmanship guidance, requires that manufacturing documentation clearly define what surfaces must receive a coating and prohibits material on specified keep-outs and connector mating surfaces (NASA-STD-8739.1B). This standard provides a clear workmanship example. A commercial product may have different acceptance criteria, but it still must provide a clear definition of coverage.

Thus, masking is a process-control procedure that protects electrical and mechanical functions when a coating is applied and cured. Additional coverage may not provide any enhanced functionality, as coating the metal contact of a connector may prevent mating and may also obstruct the diagnostic capabilities of a test point. Furthermore, the presence of a film over the opening of a sensor or a heat-transfer surface may also change the behaviour of a product.

Material selection cannot repair an incomplete drawing; rather, coating keep-out locations should be defined in the assembly or coating documentation prior to manufacture instead of relying on operator interpretation.

The inspection process will compare the completed assembly with the approved boundary, rather than an ambiguous directive to “coat the board.”

Why Are Thickness and Cure Time Product-Specific?

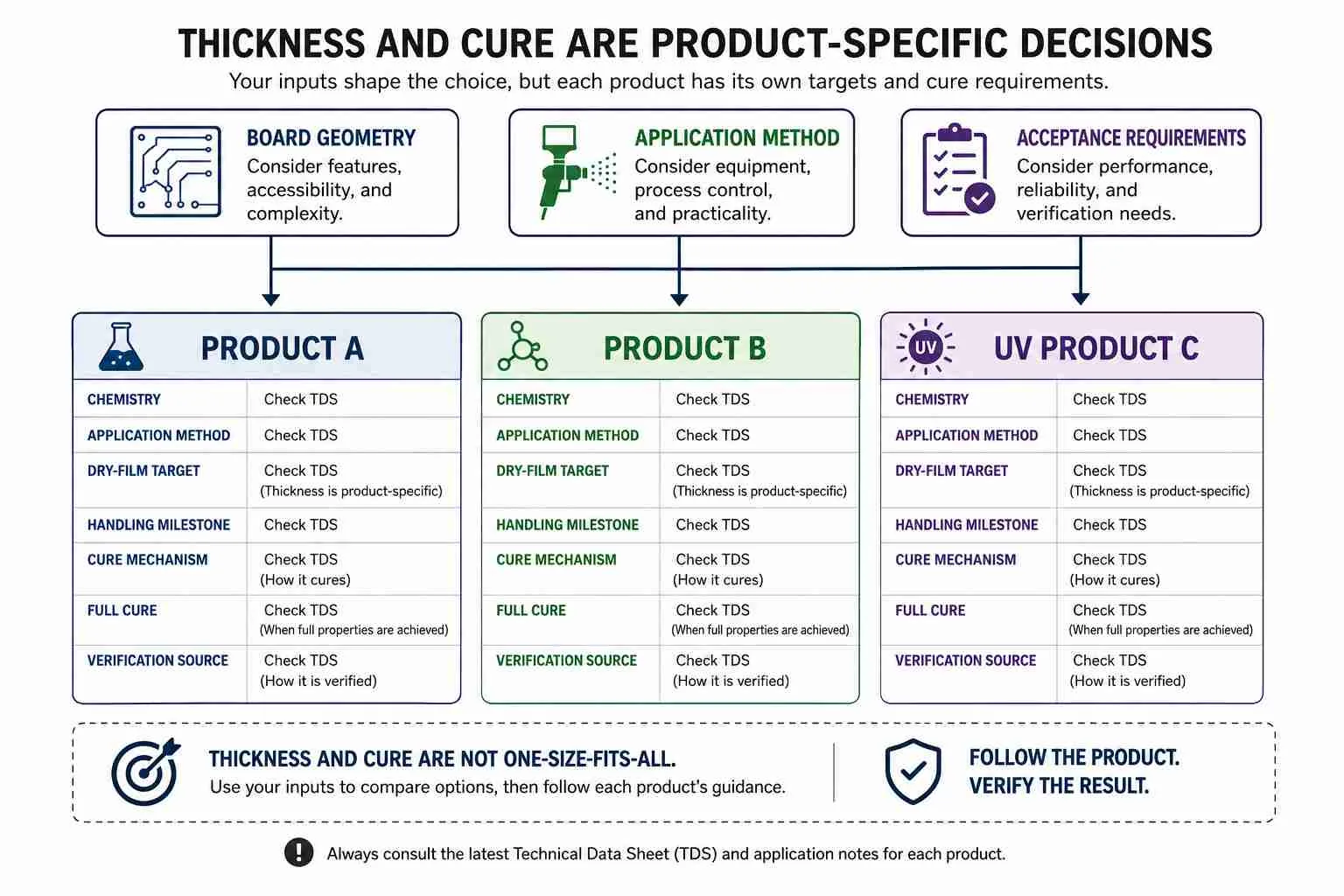

There is no one-size-fits-all conformal-coating thickness or cure time for all products. Each product’s chemistry, formulation, solids content, viscosity, application method, assembly geometry, environmental conditions, curing method and acceptance criteria will affect the requirement. Thus, the governing documents for determining thickness and cure time are the TDS for the specific product being used, the coating coverage drawing, as well as the applicable process and inspection specifications.

Cured Thickness Limits

Although the range of thicknesses quoted in the literature is generally considered to be between 25 and 127 micrometres (1 and 5 mils), this range matches the NASA limits for acrylic, urethane and epoxy but is not a definitive value that applies to all conformal coating chemistries. NASA-STD-8739.1B specifies different cured thickness ranges for its own workmanship applications.

These are NASA workmanship limits, not default targets for every commercial PCBA. NASA permits the use of either a wet-film gauge or micrometer to measure thickness during in-process operation only if this measurement is calibrated to the required final cured thickness.

IPC-CC-830C describes ultra-thin coatings (Type UT) at a target thickness of 12.5 micrometres (0.49 mil) or less. Type UT ultra-thin coatings are independent of chemical composition (IPC-CC-830C).

Cure Milestones and Product-Specific Schedules

Solvent or carrier evaporation, atmospheric moisture, heat, UV energy, or a combination may drive the curing process. Tack-free, handle, full cure, and optimum properties describe different milestones. A PCB may feel dry to the touch but still may not have achieved the conditions necessary for handling, testing, environmental exposure, or final acceptance.

HumiSeal 1B12 Technical Data Sheet recommends a coating thickness of 25-75 micrometres, states 10 minutes to handle, a 24-hour room-temperature cure or 30 minutes at 76 degrees C, and seven days to optimum properties (HumiSeal 1B12 Technical Data Sheet). These values pertain only to the HumiSeal 1B12 product.

Another acrylic conformal coating is represented by MG Chemicals 419D. The current liquid TDS for this product recommends a coating thickness of 25-75 micrometres, indicates 10 minutes to handle, and gives 24 hours at room temperature or heat-cure options of 30 minutes at 65 degrees C, 20 minutes at 80 degrees C, 10 minutes at 100 degrees C, and 5 minutes at 120 degrees C (419D Acrylic Conformal Coating Technical Data Sheet). These values pertain only to the MG Chemicals 419D product.

How Is Conformal Coating Applied and Inspected?

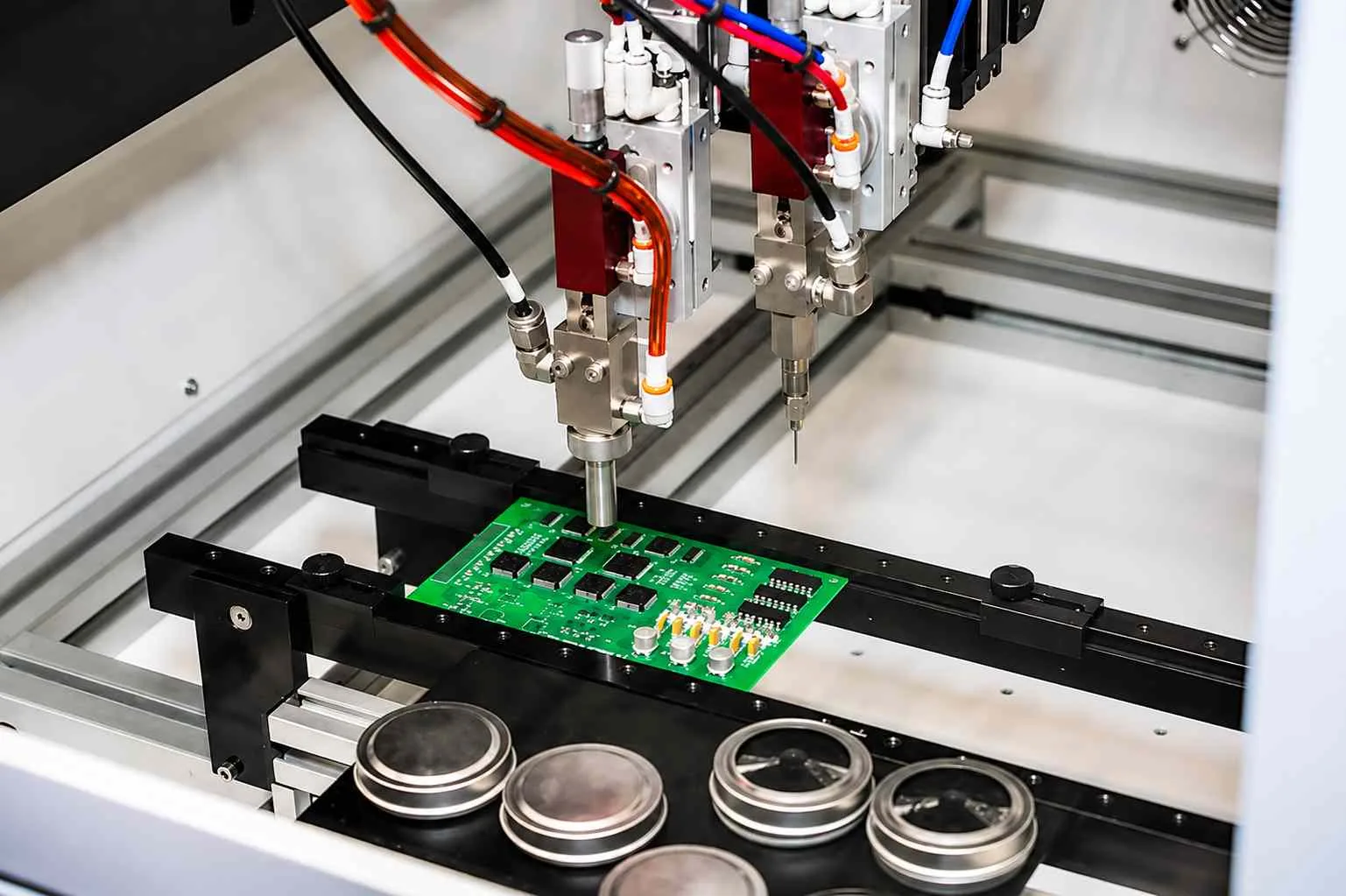

Application Methods

These application methods are not interchangeable process windows because each changes how masking, coverage, thickness, access, and shadowing are controlled. NASA-STD-8739.1B separately controls a number of techniques for conformal coating. There are separate categories for spraying, brushing, dipping, and vacuum deposition. Manufacturer guidance also distinguishes manual, automated, selective, and dip application processes (NASA-STD-8739.1B; Essential Guide to Conformal Coating). HumiSeal 1B12 identifies its recommended controlled immersion and withdrawal rate at a speed from 5 to 15 centimeters per minute, whereas MG Chemicals 419D specifies withdrawal at about 6 inches per minute (approximately 15 cm/min) (HumiSeal 1B12 Technical Data Sheet; 419D Acrylic Conformal Coating Technical Data Sheet). These are product/process examples and not an industry-wide dip speed.

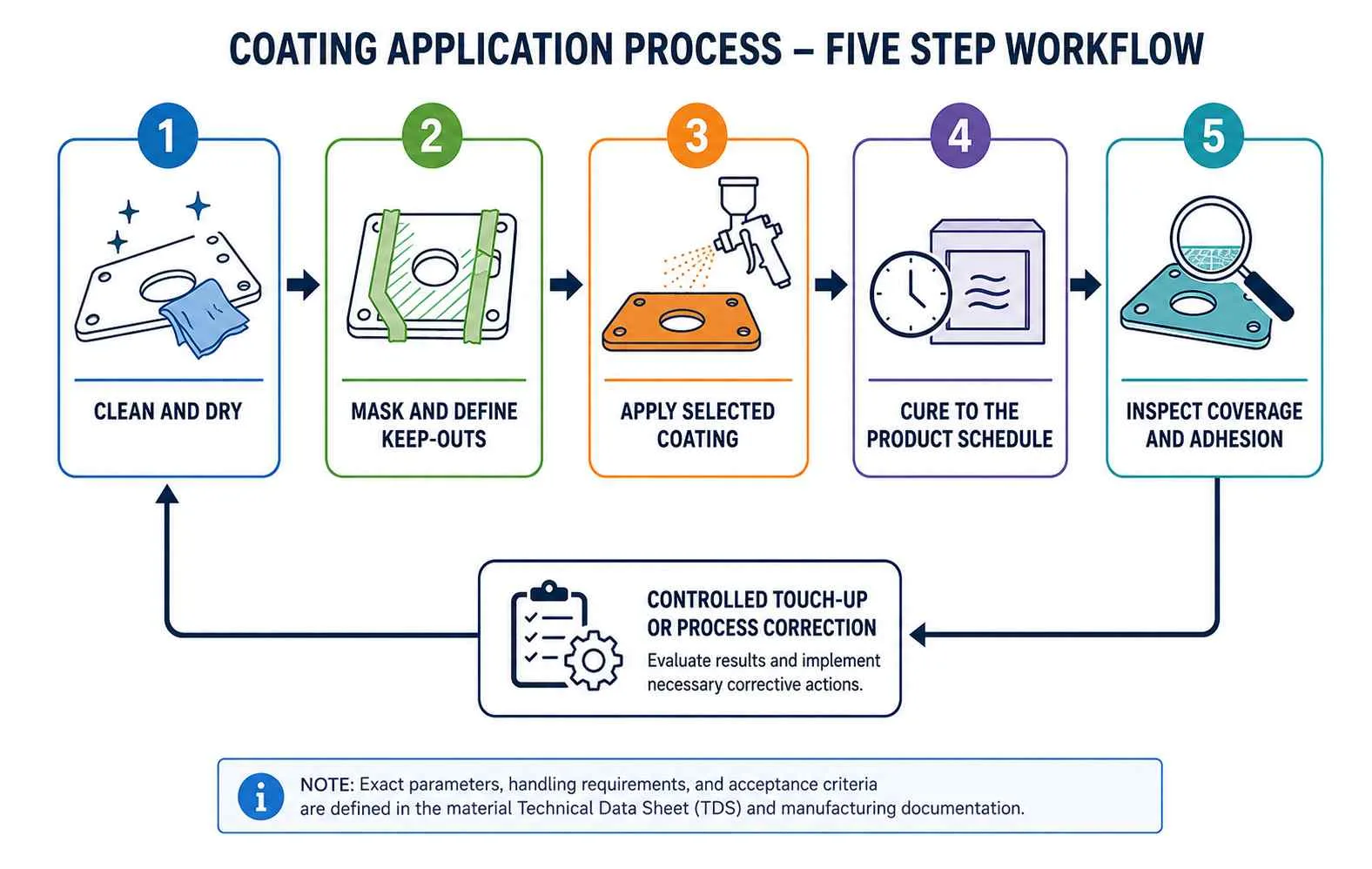

Coating Process Steps

1. Verify assembly condition – To ensure the assembly, materials, and surfaces are suitable for the planned coating process.
2. Clean and dry as necessary – To eliminate controlled residue and moisture before coating and ensure that unwanted contaminants will not be sealed beneath the coating material.
3. Define coverage and mask areas requiring no coverage – To protect keep-outs and establish where coverage or coating thickness needs control.
4. Apply the specified material using the approved method – To ensure all required product characteristics are achieved while accounting for access, edges, capillary flow, and shadowing.
5. Complete the defined cure – To ensure that all requirements for the product/process milestone are met prior to handling, inspection, or service.
6. Inspect and document – To ensure the product meets the defined coverage, continuity, defect, and acceptance requirements.

Post-Cure Inspection and Defect Diagnosis

Post-cure inspection should verify coverage, keep-outs, cure condition, adhesion, thickness, bubbles or voids, lifting or peeling, and exposed conductive areas. When using a fluorescent coating, UV lighting may be used to verify coverage; NASA-STD-8739.1B requires UV verification for fluorescent conformal coatings. Visual inspection can indicate potential problems; however, it does not prove the actual root cause.

Silicone-type mold-release residues or incompatible flux residues can lower the surface energy enough that the wet coating pulls back into “fisheye” patches during application, before cure begins. In most cases, these residues are introduced to the PCB before the coating process, and so the best source of evidence that can explain the dewettability issue will typically be found in the cleaning process and incoming inspection records rather than in what is visible after the coating has cured.

IPC currently lists IPC-CC-830 at Revision C (IPC Standards Revision Table). Its public coverage includes coating-material qualification, qualification retention, and quality conformance. However, it does not prove that a particular PCBA has been cleaned properly, masked adequately, coated in accordance with its drawing, cured properly, inspected according to the applicable requirements, or validated for its intended environment.

UL classifications or recognitions are also product-specific. MG Chemicals 419D lists UL 94 V-0 and IPC-CC-830B certification; however, those markings apply to that coating product rather than establishing the environmental performance of a finished PCBA.

While MIL-I-46058 will still be found in some legacy documents, the U.S. DLA marks this standard as inactive for new designs (ASSIST-QuickSearch Document Details – MIL-I-46058). A contract can still invoke legacy evidence, but MIL-I-46058 should not be considered the default current coating standard for a new design.

The presence of a conformal coating may change the way that components or other items on the PCB can be accessed for repair or rework. Rework on coated PCBs must follow the exact material’s approved removal and restoration process because solvents, heat, or mechanical removal of the conformal coating can damage electronic components, solder mask, or the PCB.

Repair work will also require that any repaired area meets the applicable thickness, coverage, cure, and keep-out checks.

When Should a PCB Use Conformal Coating?

Conformal coating isn’t necessary for every PCB. The decision depends on the expected environmental exposure, consequences of failure, and interfaces that remain unprotected. Also consider enclosure performance, service access, sensors, grounding, thermal paths, material compatibility, and validation. A coating family name alone cannot replace that engineering decision.

As periodic condensation occurs within the housing, designing for moisture protection may lead to the application of either an acrylic or silicone barrier coating over the exposed sensor board. However, this type of coating does not work alone. To permit trapped moisture to escape from the enclosure during periods of condensation, it is typical to use a vented, hydrophobic membrane rather than to create a sealed cavity within the enclosure. Without this provision, even if the exposed sensor board is coated, trapped moisture may still create failure by forming standing water against the sensor connectors.

Conformal Coating vs Potting

Conformal coatings and potting compounds solve related protection problems with different physical boundaries.

According to Henkel, conformal coatings are thin films that protect circuit boards and other sensitive electronic devices, while potting compounds encapsulate an assembly inside a housing (Conformal Coatings; Potting Compounds).

Before choosing either approach, manufacturers should define the type of exposure, keep-outs, the exact material, how the material is to be prepared, how it is to be cured, how the manufacturer will inspect the finished assembly, and what product-level validation is required. The fact that a material is labeled as either a conformal coating or potting compound does not establish finished-product performance.
