PCB Assembly Visual Inspection

What Is PCB Visual Inspection?

PCB visual inspection is a visual examination of the board, components, solder, and other visible conditions of a PCB before assembly and after it has been assembled into a PCBA. This process is used to verify that all visible and accessible features meet the required visual or dimensional acceptance criteria. Internal solder integrity, circuit state, and powered function require structural, electrical, or functional verification. PCB visual inspection is defined by five elements:

• Inspection object: bare PCB or assembled PCBA
• Manufacturing stage: before assembly, first article, in-process, final, or post-rework
• Visible condition: surface, edge, hole, marking, component, solder, mechanical, or contamination condition
• Inspection evidence: location, image, acceptance criterion, correction, and reinspection result
• Additional verification: a visible finding can trigger structural, electrical, or functional checks

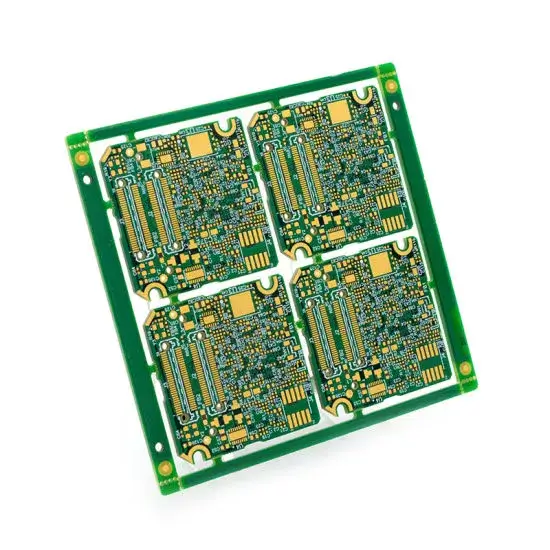

Inspection Before and After Assembly

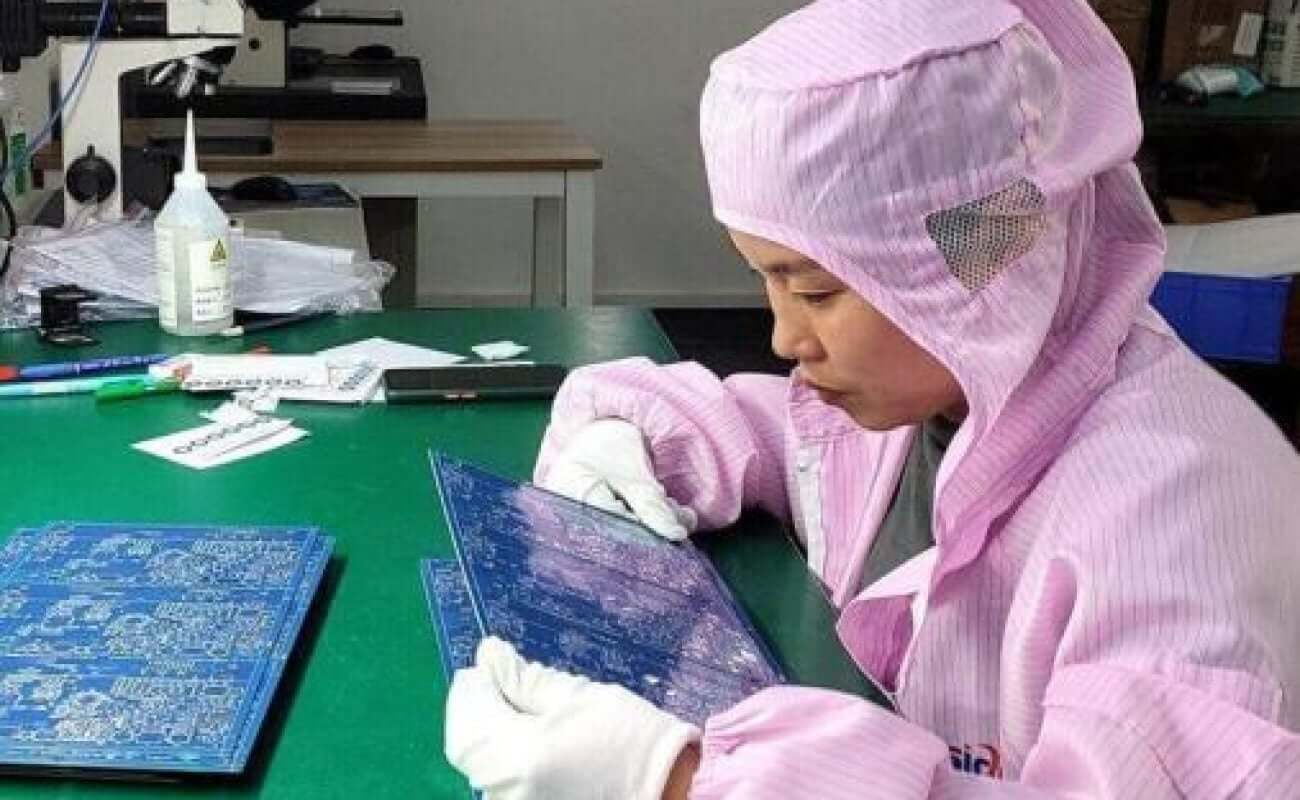

Before assembly, the inspector verifies the board identity against the current revision and checks all visible areas of the bare PCB, such as surfaces, edges, hole openings, conductor features, solder mask, and silkscreen. The inspector separates any visible incoming damage from other conditions that require further dimensional, structural, or electrical verification. All nonconformance findings are recorded by PCB location and corresponding acceptance criterion before the board enters the assembly stage.

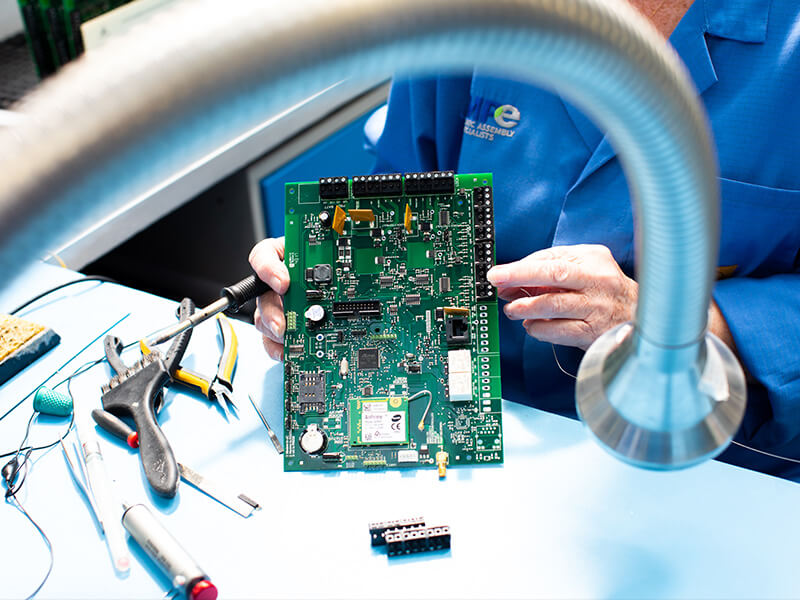

After components have been soldered to the PCB, the operator performs a visual inspection to verify component presence, positioning, orientation, accessible leads, visible solder joints, connector seating, mechanical damage, cleanliness, and approved manual modifications. The BOM, assembly drawing, polarity markings, and current revision guide the operator on the expected configuration.

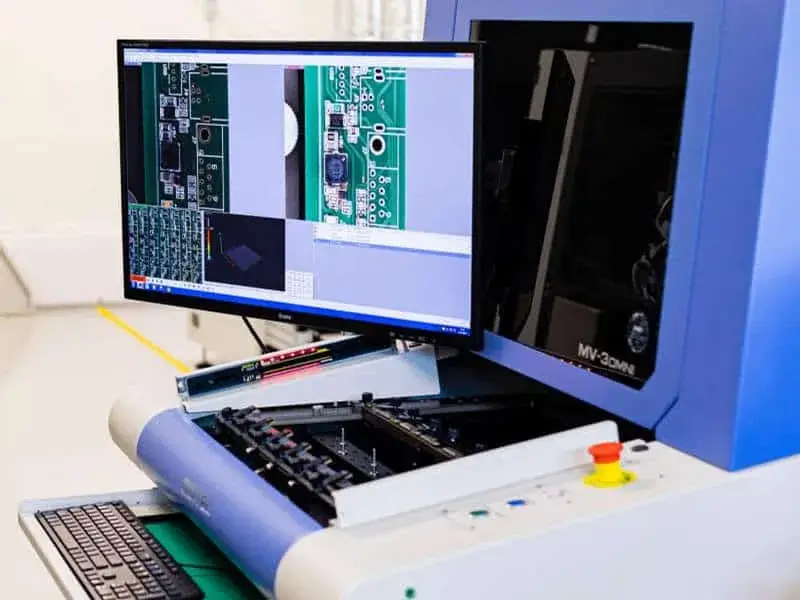

PCB Visual Inspection Process and Inspection Records

How Is Inspection Coverage Defined?

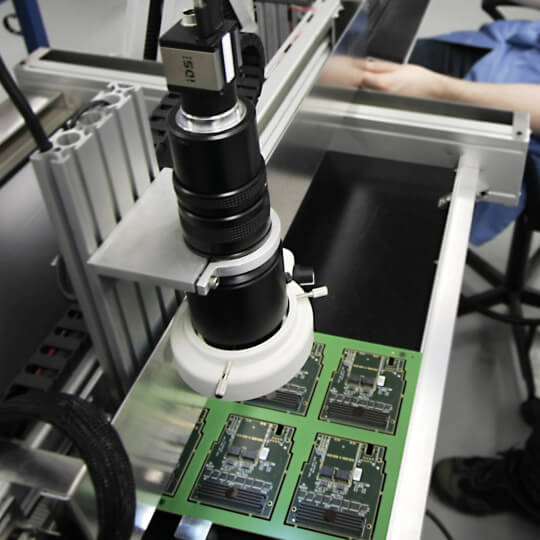

Coverage must clearly specify the inspected population and feature set; for example, incoming sampling, first article inspection, 100% board inspection, 100% programmed-feature coverage, or inspection focused only on defects that occurred or could have occurred after reworking the assembly. The term "100% AOI" refers only to the inspection of every feature included in the approved program; it does not mean that every solder interface is optically visible. The inspection documentation typically contains information about the revision, board side, panel position, sampling rule, programmed feature set, areas excluded or obstructed, and all locations transferred to manual inspection, X-ray, electrical testing, or functional verification.

Inspection Criteria and Board Identity

Criteria for bare boards are not applicable to assembled features, and boards with obsolete revisions cannot support a current product decision. The product part number, revision, panel position, and assembly documentation must match before a board or lot is released for use.

Maintaining a clean environment while handling assemblies helps prevent loose debris from being mistaken for a product defect. In addition, proper ESD controls protect the assembly from damage while it is being repositioned. Before visual scanning continues, SUGA establishes the clean-area requirements, handling methods, and inspection-tool status.

Inspection Sequence Across Board Areas

A fixed scanning order prevents the accidental omission of areas and makes it possible to compare results from previous inspections with the current inspection. The scanning process starts by inspecting the whole board to determine its identity and overall condition, then proceeds by board side, panel position, and defined zone. In each zone, scans become progressively more detailed, starting with the designators, accessible leads and joints, mechanical features, and finally cleanliness or revision markings. When preparing to reinspect, inspectors retain the same location reference used during the first inspection.

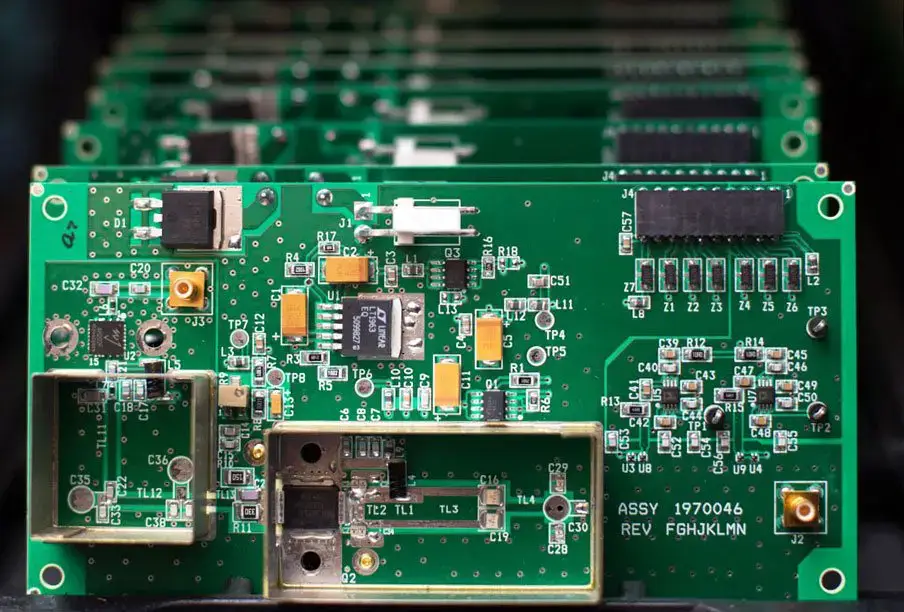

Defect Records and Reinspection Results

Usable defect records contain information regarding the board, revision, defect ID, designator or coordinate, defect image, observed condition, applicable criterion, disposition, corrective action taken, and reinspection result. One typical example of a usable defect record would state: Board A2317, Rev C, U14 pin 6, image VIS-042, visible solder bridge, bridge removed, same location reinspected, affected net passed short-circuit verification. The initial observation and final quality decision are recorded separately.

Reinspection occurs at the same location and under the same criterion as the first inspection. If there is a visible conductor gap, continuity verification is performed when circuit state must be confirmed; if there is a copper or solder bridge, short-circuit testing is performed; if a package interface cannot be visually verified, X-ray may be required; and if a functional area has been corrected, powered retesting may be required. The final inspection report retains the visual result and any additional test result as separate decisions.

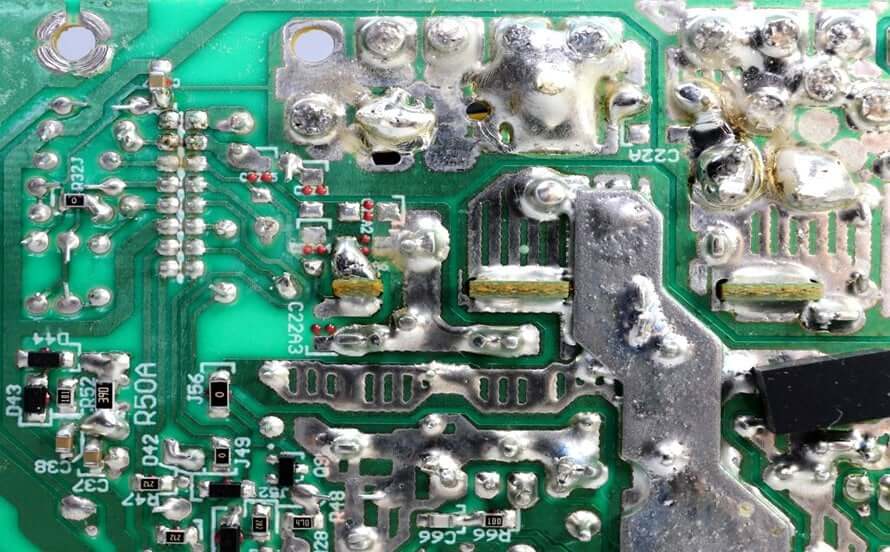

Visible Bare-Board Defects

Visual inspection allows identification and location of an external bare-board defect, but it does not confirm hole diameter, conductor spacing, internal plating, or complete circuit condition. Consequently, each defect description should differentiate between the observable signal and the measurement or electrical test required to determine the disposition of the defect.

Component Placement and Mechanical Defects

Actionable placement defects can only be identified if the required component states are understood first. Empty locations, incorrect designators, polarity reversals, shifted body positions, tombstoned components, bent leads, or poorly seated connectors can all be tied back to an image and board coordinates.

Visible Assembly Defects

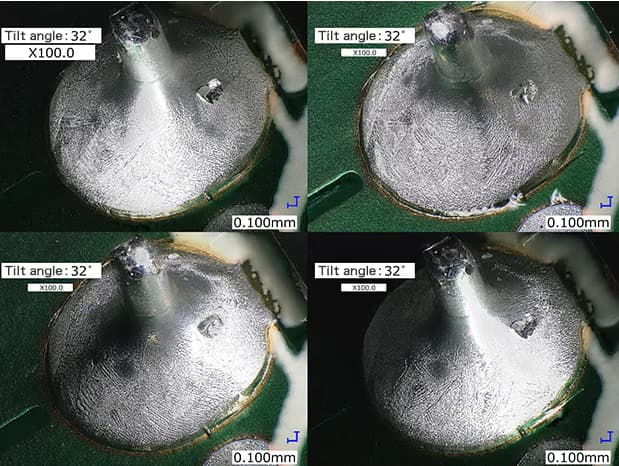

Visible assembly defects include solder bridges, insufficient external wetting or fillet formation, lifted lands, exposed copper, solder debris, prohibited residue, other foreign materials, or mechanical damage. The inspection record documents the exact location of each defect and indicates whether the defect was reworked, accepted according to documented criteria, or transferred to X-ray, electrical testing, or functional retest.

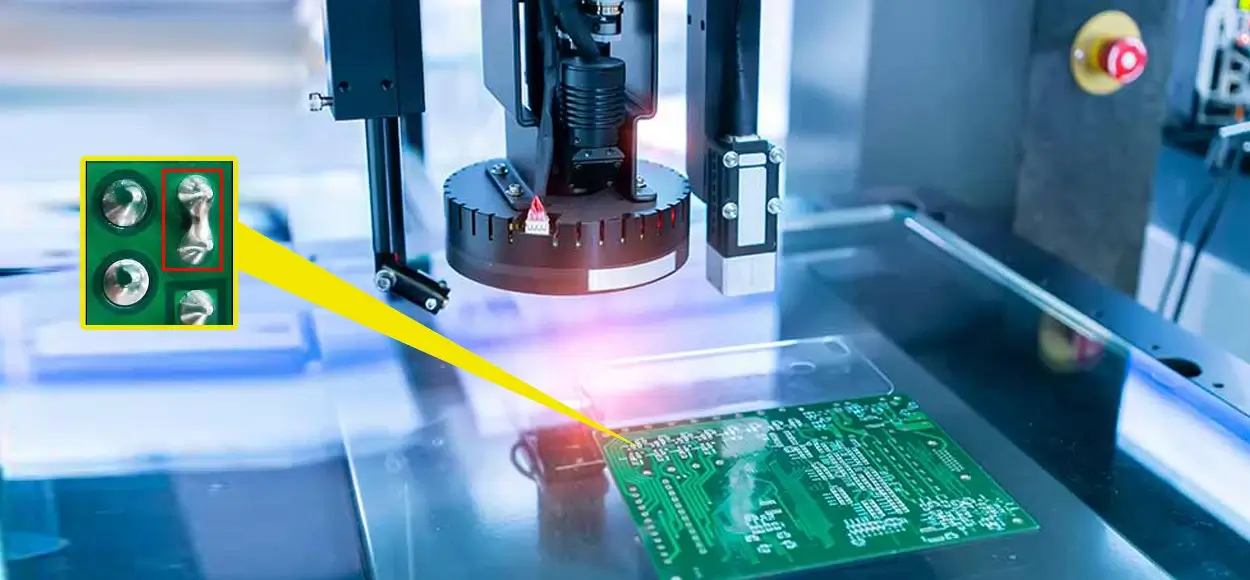

Manual PCB Inspection vs. Automated Visual Inspection

Although production volume is important, product maturity and revision stability are more important. The manual and AOI inspection cycles must include the entire decision-making process, including setup, alarm confirmation, and record retention. Alarms generated by automated machines remain unconfirmed until they are classified by inspection personnel.

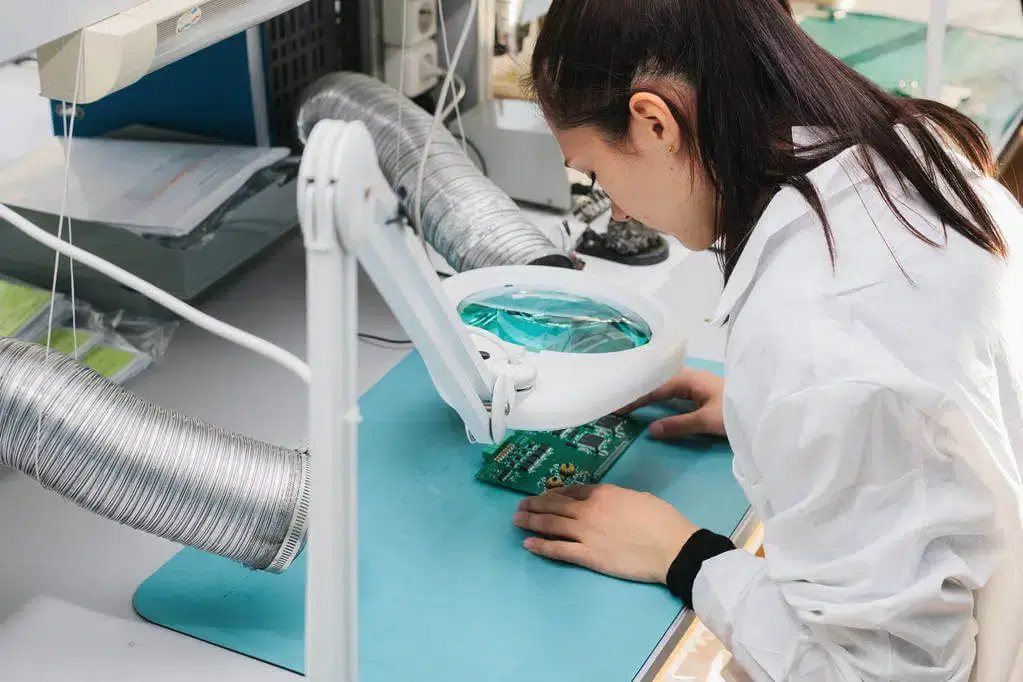

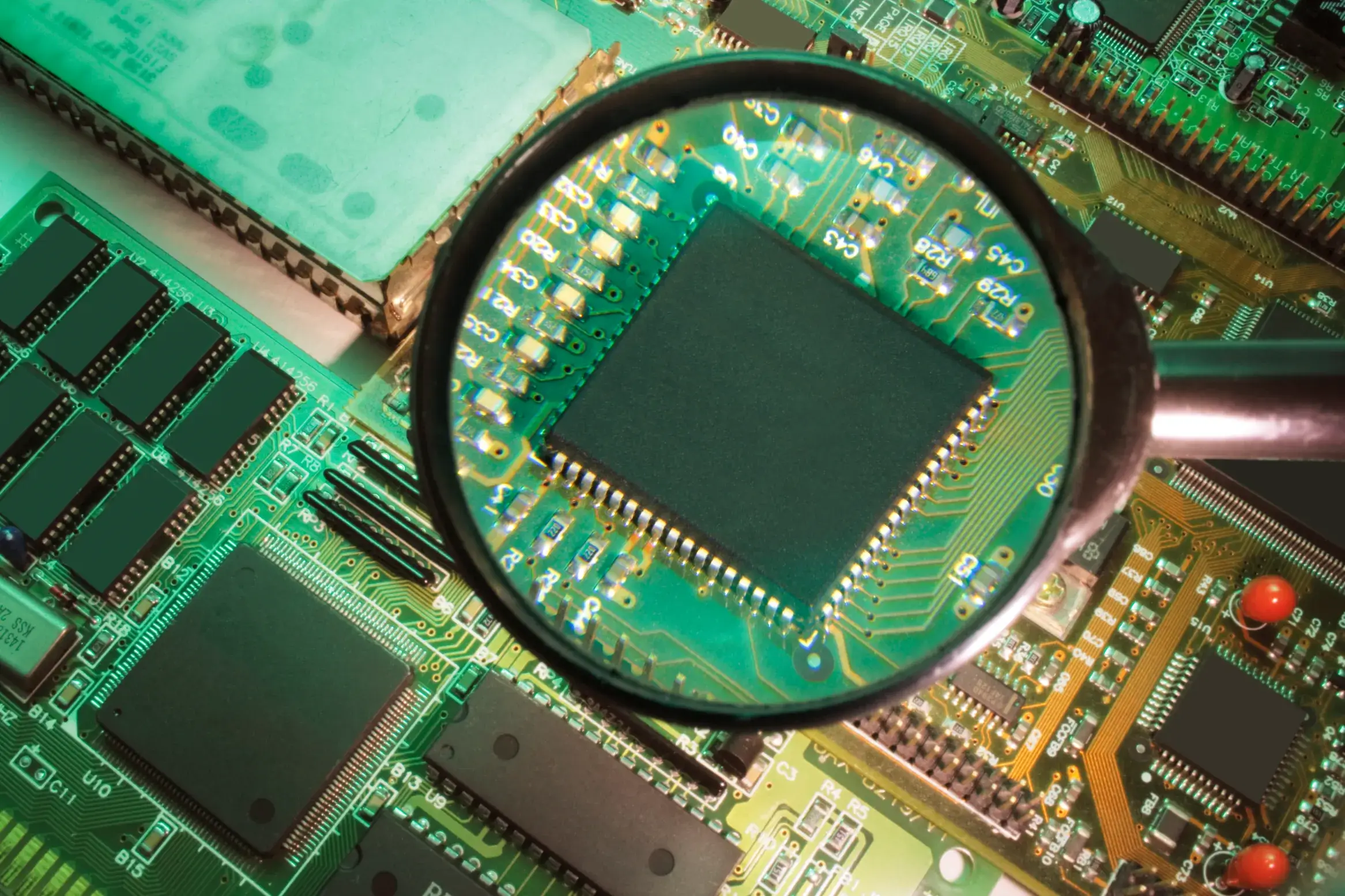

Manual Inspection Strengths and Limits

The inspector can change the viewing angle, magnification, and scan path depending on what is visible at the time of inspection. The inspector can exercise human judgement in situations where the inspected feature does not match stable image rules or when any area of the board requires particularly careful inspection.

The flexibility of manual inspection is determined by having clear inspection instructions, properly trained inspectors, and controlled viewing conditions. Therefore, as the number of inspected features and board complexity increase, inspector fatigue will reduce repeatability; hence, it is essential to have consistent decision rules and accurate zone-by-zone records for all inspected features.

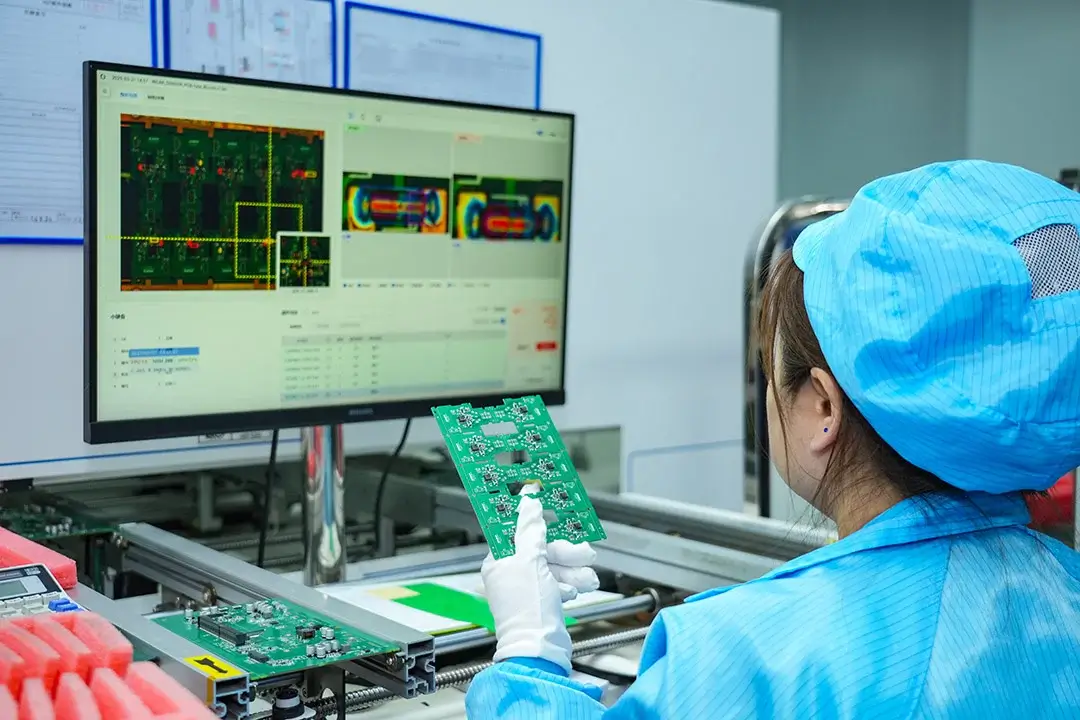

How Are AOI False Calls Controlled?

AOI uses repeatable imaging to generate a production decision through program setup, image models, thresholds, and alarm classification. The first step in setting up an automated visual inspection program is determining which optically accessible features will be compared. The camera provides image quality based on the imaging setup, while the thresholds determine whether an alarm is triggered. Inspection personnel must then review the image to validate and classify the visible condition.

To control false calls successfully, the AOI system must prevent overly sensitive thresholds from burying relevant findings and prevent weak thresholds from leaving defined conditions outside detection. Hence, SUGA tracks confirmed results instead of initial alarm counts.

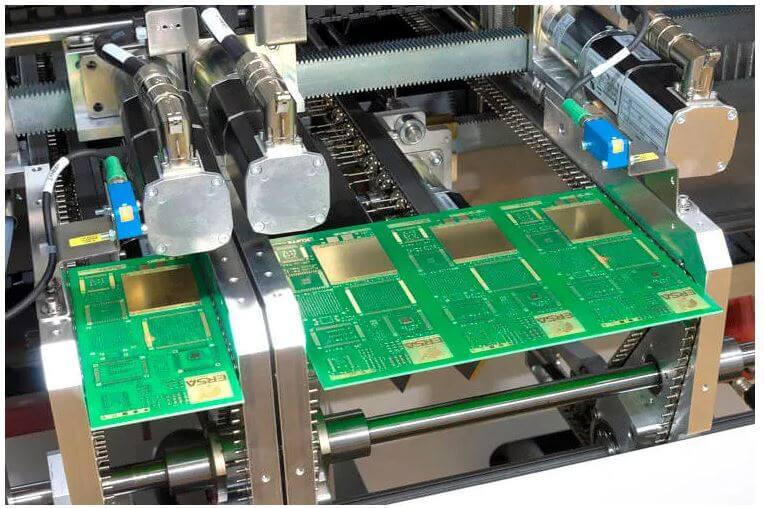

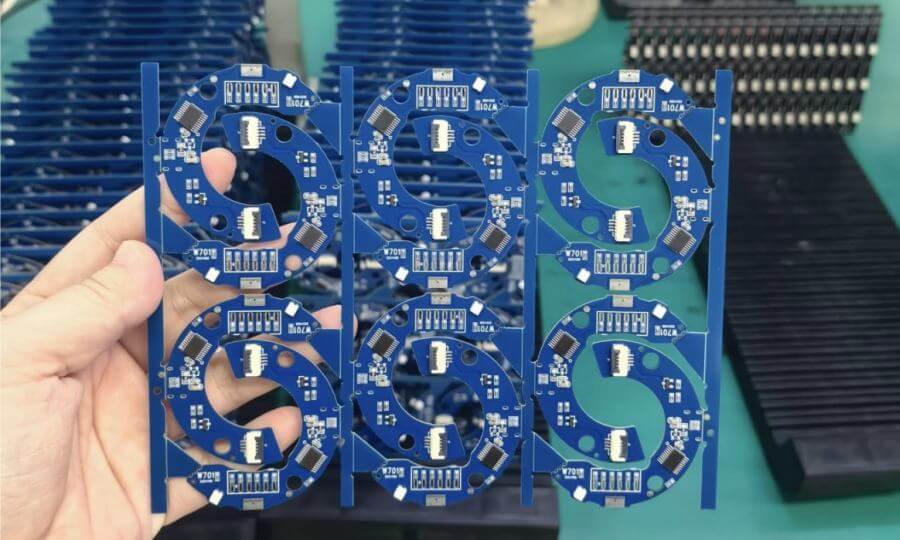

Production Volume and Changeover Tradeoffs

When program settings, image models, thresholds, and the visible feature set remain the same across repeated production runs, the setup becomes more economical. The approved program must remain linked to the current PCB and assembly revision. The comparison includes program creation, changeover, alarm classification, and data integration rather than only the equipment scan time.

Manual or mixed inspection remains applicable where there are frequent revisions or visible conditions that require inspector judgement. During stable runs, repeatable features can be placed under AOI. However, manual inspection must cover areas that AOI cannot see, such as obstructions, tall components, or atypical findings outside the programmed feature set.

Additional Verification After Visual Inspection

How Are Concealed Interfaces Examined?

Package bodies, shields, and connectors obstruct the optical path, which prevents the inspector from photographing or examining what lies beneath them. Visual inspection verifies placement, accessible leads, surrounding solder, contamination, and external damage around these features. For example, a package perimeter could appear clean and undamaged; however, this does not prove a sound physical joint beneath the package. Voiding, head-in-pillow, and similar conditions are not visually detectable; they fall under the category of structural findings, which must be verified using X-ray or another accepted structural verification method.

Electrical Verification After Visual Inspection

Electrical testing following visual inspection is conducted when the decision depends on the circuit state of a conductor gap, unexpected copper connection, or corrected solder bridge identified by location. The electrical test verifies actual circuit conditions, including an open, short, or restored working net, based on electrical results rather than visual evidence. Locations that pass visual inspection do not have to be retested electrically unless the acceptance plan specifies otherwise. The visual and electrical results remain linked to the same location and defect ID but are recorded as separate decisions.

Functional Verification After Visual Inspection

An external evaluation looks at component condition, accessible solder workmanship, mechanical integrity, cleanliness, and revision identity. Functional verification evaluates input and output response, timing relationships, interface behaviour, and performance under specified loads.
