5G Radio Module

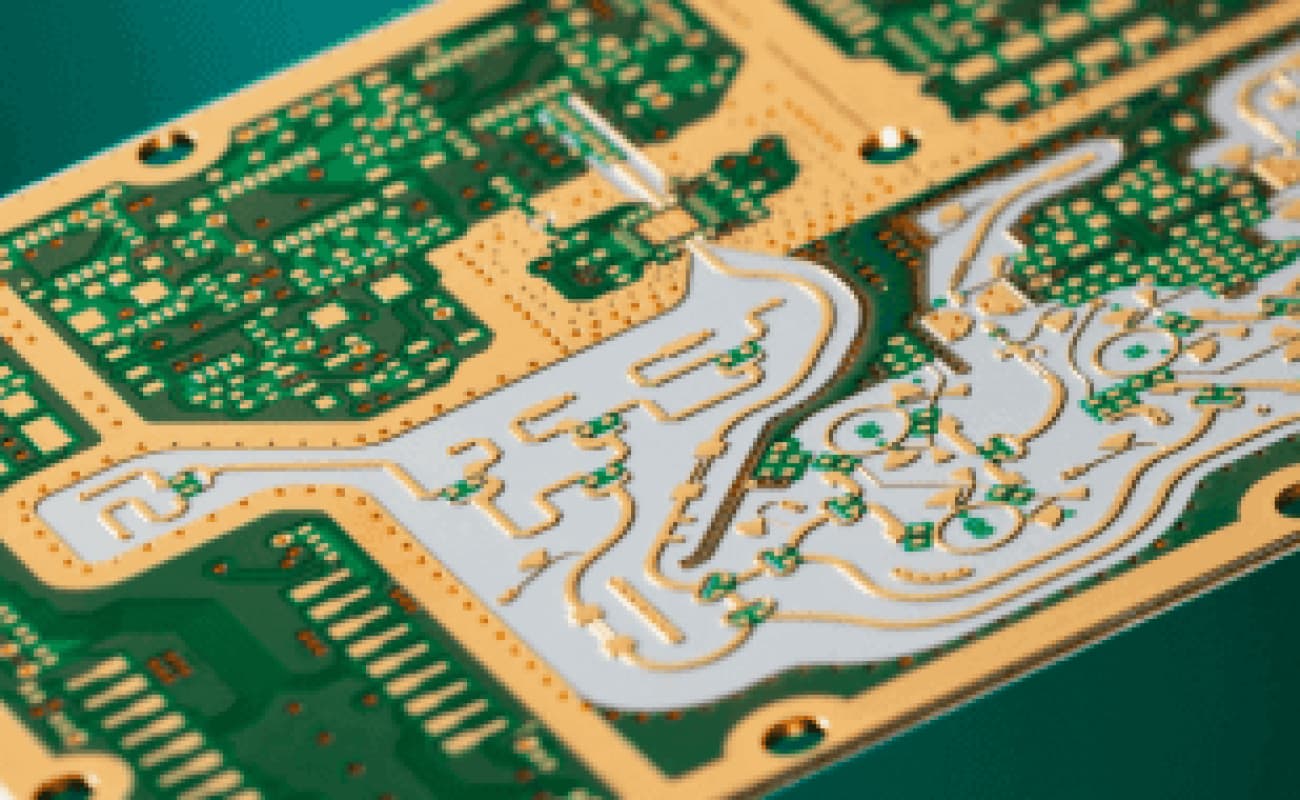

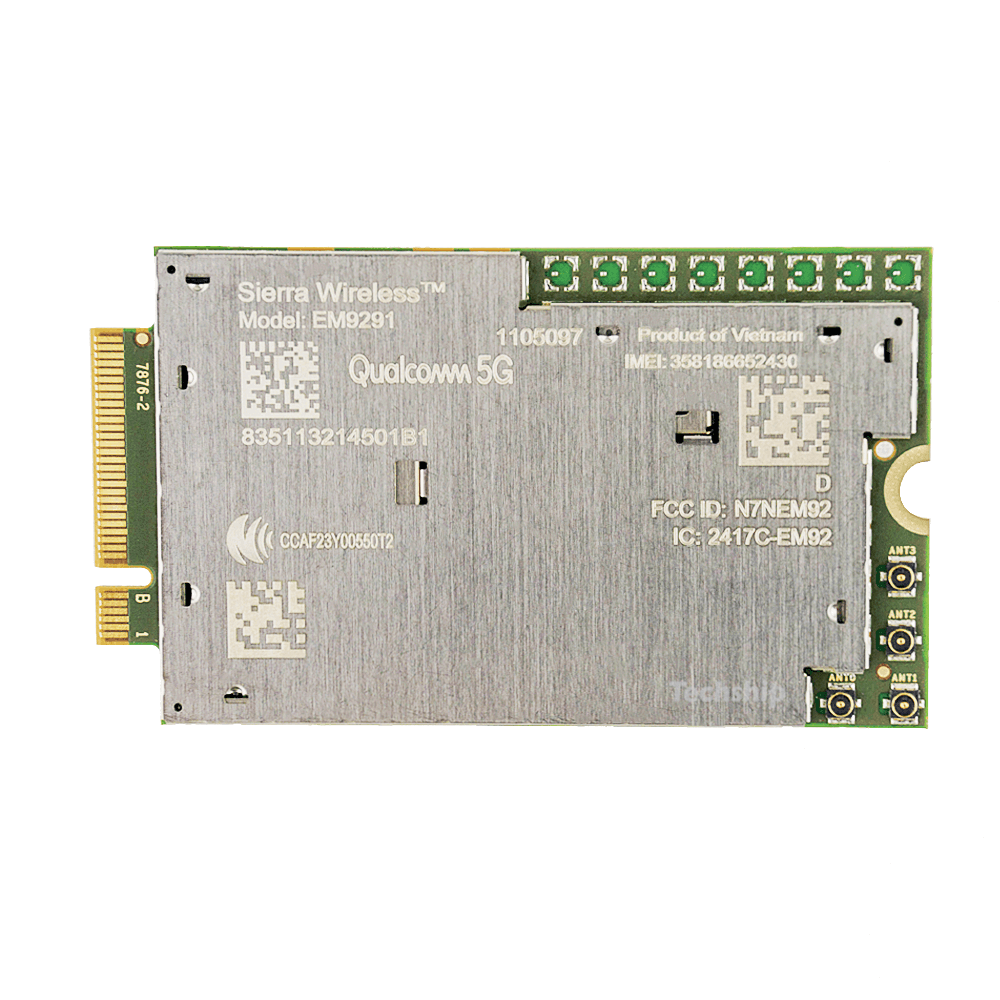

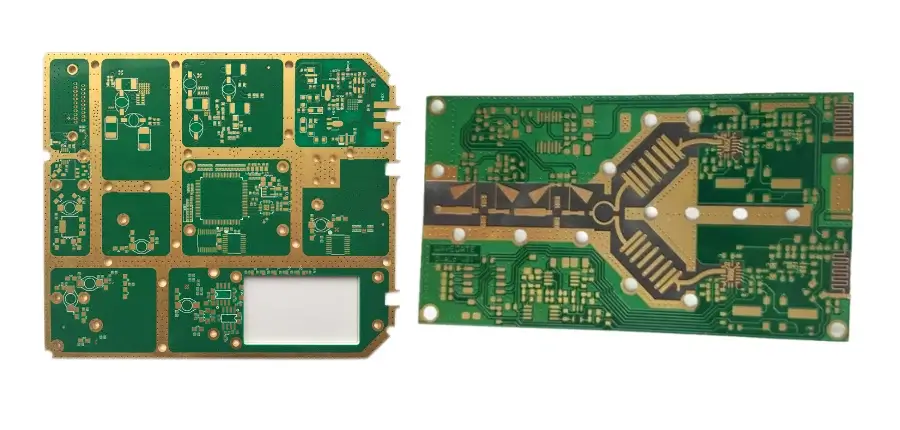

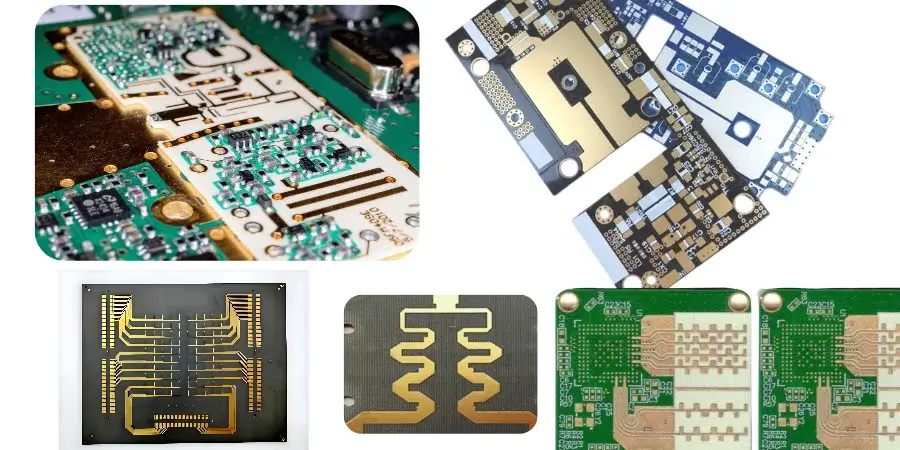

A typical 5G RF Module uses low-loss laminate, controlled impedance, a hybrid stackup configuration, grounded via structures, short RF transitions, and a controlled copper profile. To address impedance drift, interface discontinuity, and excessive insertion loss, material-lot control, dimensional inspection, TDR, and VNA or S-parameter measurement must be considered. Hybrid-material interfaces and copper roughness must be controlled because even small discontinuities can reduce RF channel margin. A common misconception is to qualify loss and impedance only on the low-loss core while treating the hybrid bond line and grounded-via transition as electrically neutral. Dk mismatch and via-stub reflection at this transition can add more phase and loss error than the base laminate. Therefore, quotation and acceptance should specify the operating band, laminate and copper-profile requirements, RF transition geometry, Impedance targets, insertion loss or phase limits, and coupon measurement ranges.

800G/1.6T Data-Center Switch

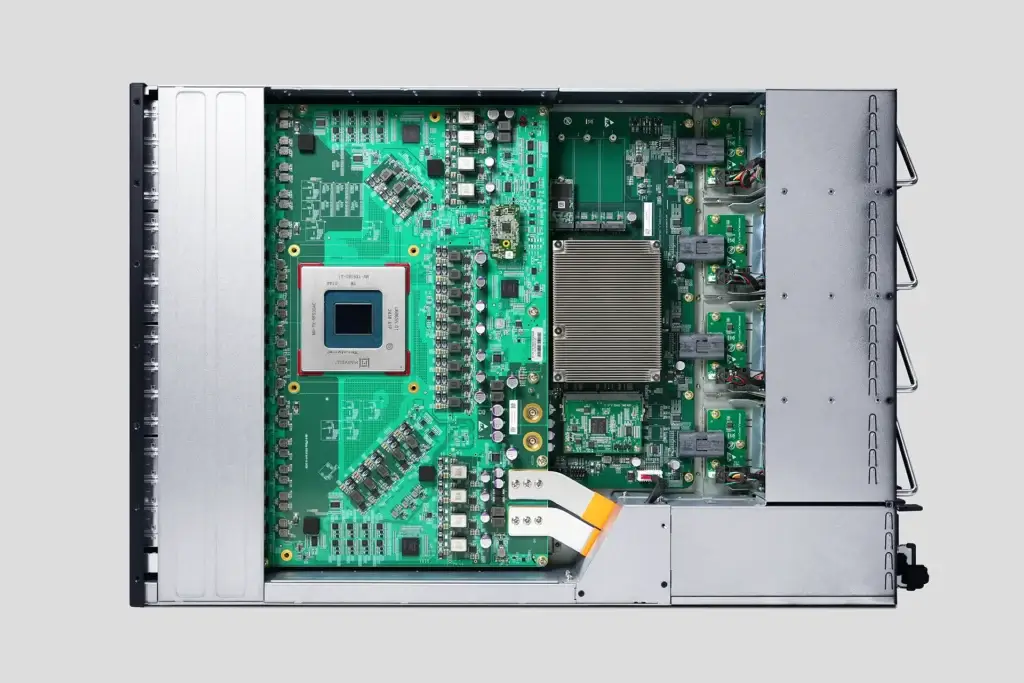

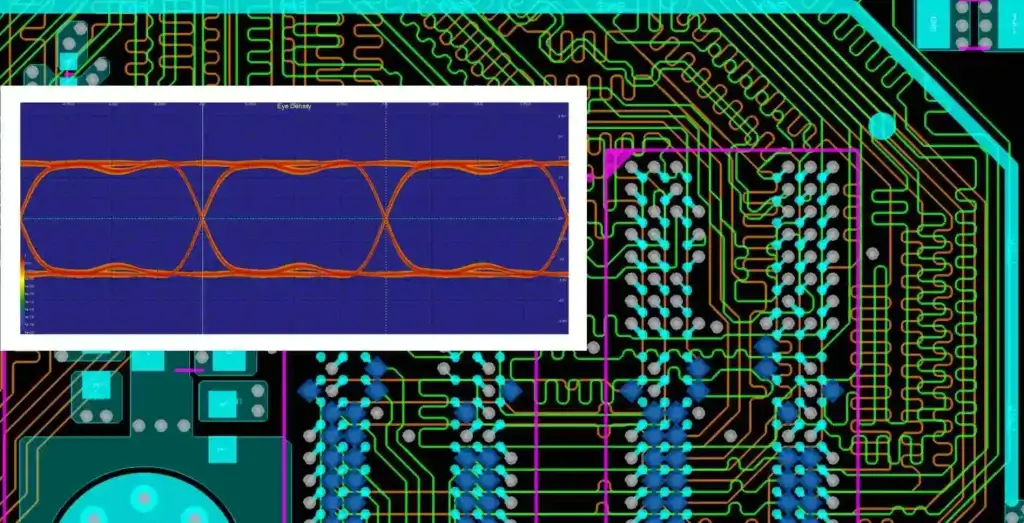

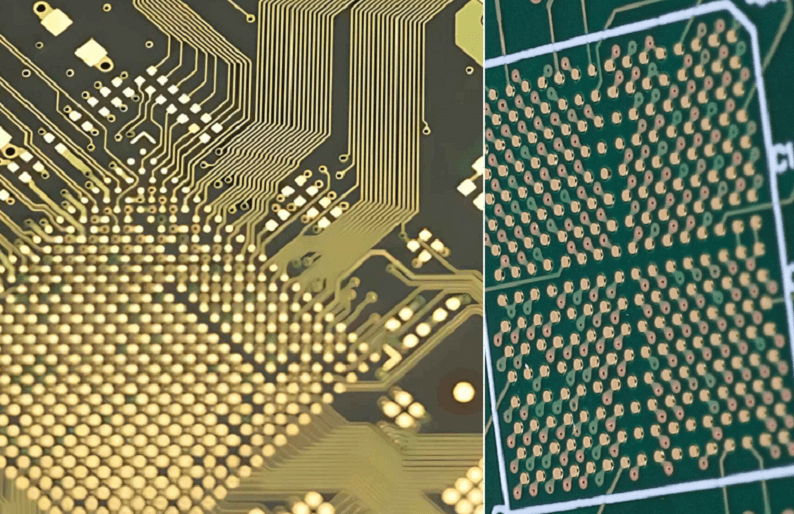

An 800G/1.6T Data Center Switch PCB incorporates a high layer count, 112/224 Gbps-class channels, ultra-low-loss materials, differential impedance, backdrilling, and dense BGA escape routing. Copper profiles, glass-weave alignment, residual via stubs, registration, TDR, insertion-loss measurements, and backdrill inspections determine whether channel margins are maintained. The residual-stub length must remain within the channel budget because every discontinuity adds reflection and loss. A common error is using the same stub lengths validated at lower data rates; the same stub length creates a resonant notch closer to the Nyquist frequency as data rates increase and must therefore be reverified against the actual channel rather than assumed from prior designs. The quotation review should include channel length, loss budgets, connector or package launch, residual-stub limits, material family, and required test frequencies.

Medical Wearable Flex

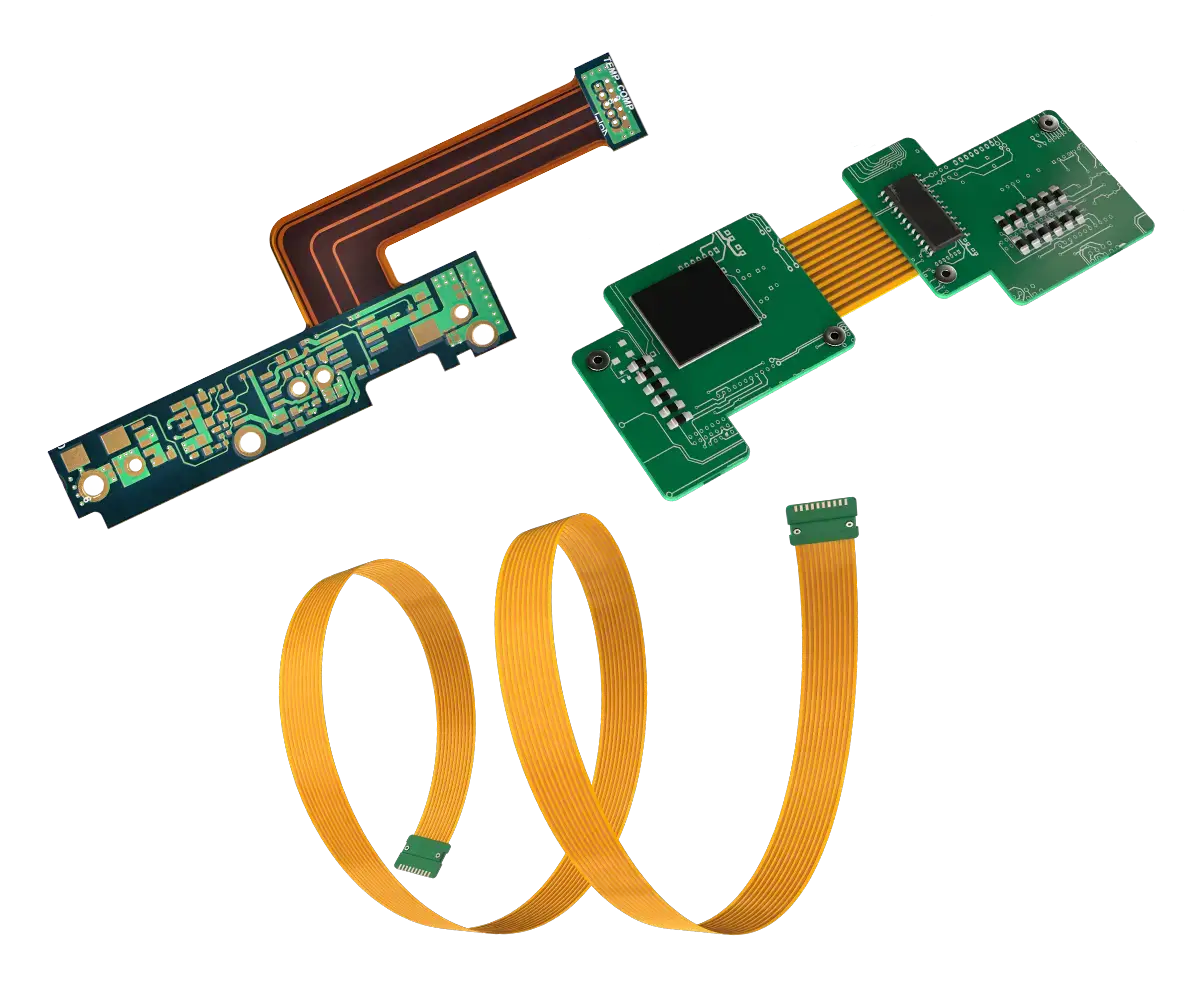

It consists of a flexible substrate with thin copper, stable dynamic bend zones, compact component areas, controlled cleanliness levels, and repeatable sensor and connector interfaces. Bend radius, copper orientation, transition geometry, cycle conditions, and inspection coverage control copper cracking, transition stress, and contamination.

Dynamic bend life and ionic cleanliness are controlled separately because the mechanical survival of a flexible PCB does not guarantee that electrical surface stability will be maintained. A PCB could survive the complete bend-cycle count but still fail due to ionic contamination, since flex fatigue and surface leakage develop through different mechanisms. The Manufacturing Package should clearly define whether each bend is static or dynamic, the minimum radius, expected cycle count, bend direction, flex-layer allocation, and the cleanliness method and limit.

Aerospace Avionics Rigid-Flex

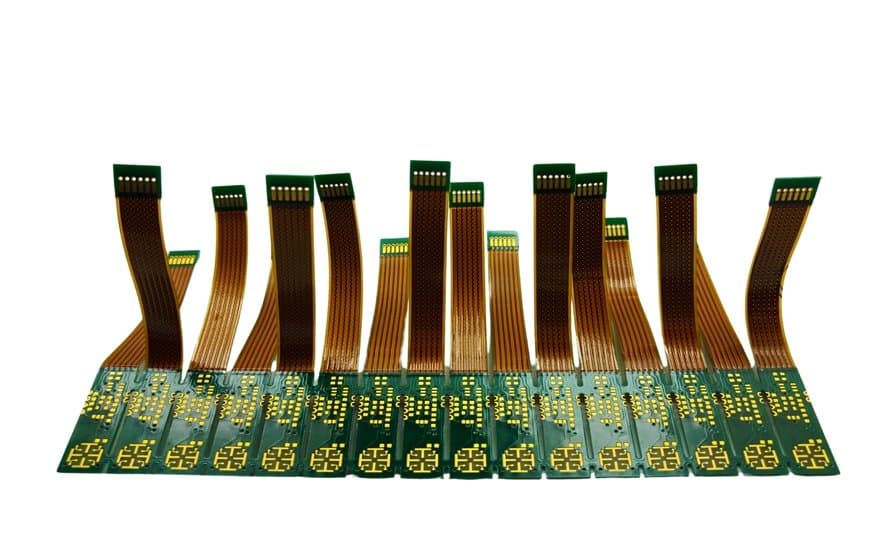

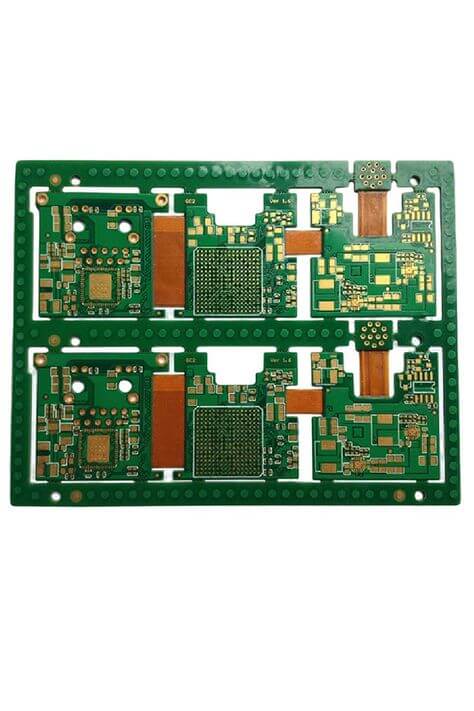

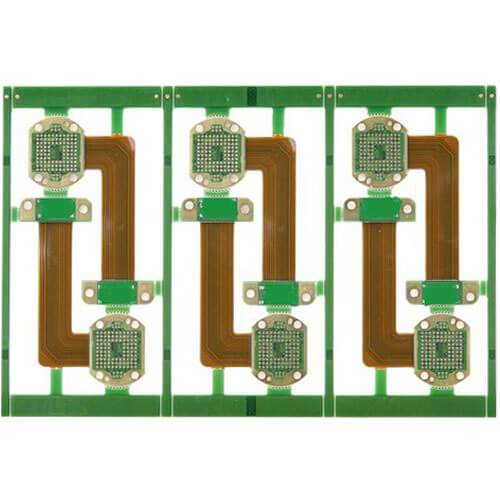

Aerospace avionics modules designed using Rigid-Flex PCB technology reduce the number of connectors required, allowing them to carry power and signals through a compact three-dimensional assembly exposed to vibration and thermal cycling. Reducing the number of connectors transfers more mechanical duty to the rigid-to-flex transitions, where vibration can increase local copper strain. A structure that passes bench continuity testing will not necessarily remain free from cracking at the transition edge after exposure to service vibration. These failure modes can be identified through combined vibration-and-thermal qualification testing.

The acceptance plan should clearly define the vibration and thermal profiles, rigid-to-flex transition geometry, stiffener terminations, plated-hole sampling, and post-stress electrical criteria.

77 GHz Automotive Radar

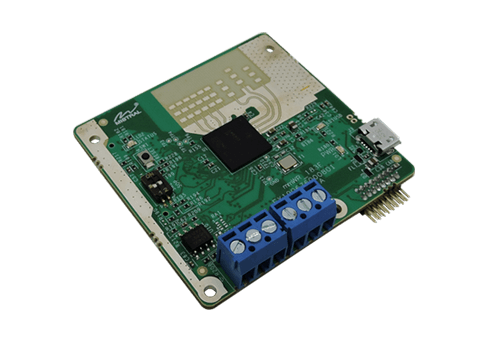

A 77 GHz automotive radar PCB uses microwave laminate, antenna feeds, controlled impedance, hybrid lamination, and compact power and digital sections. Material-lot control, dimensional inspection, TDR, and VNA or S-parameter measurement help address dielectric variation, copper-profile changes, phase inconsistencies, and RF-to-digital discontinuities. Antenna-region dimensional changes can alter phase balance even when the rest of the board remains electrically continuous. A common misconception is to apply the board's average dielectric-thickness tolerance to the antenna region, where the same variation may be large enough to detune the phase balance between elements. The antenna region should have its own dielectric-thickness, copper-profile, etch-tolerance, phase-matching, and measurement requirements.

Industrial Control and Power PCB

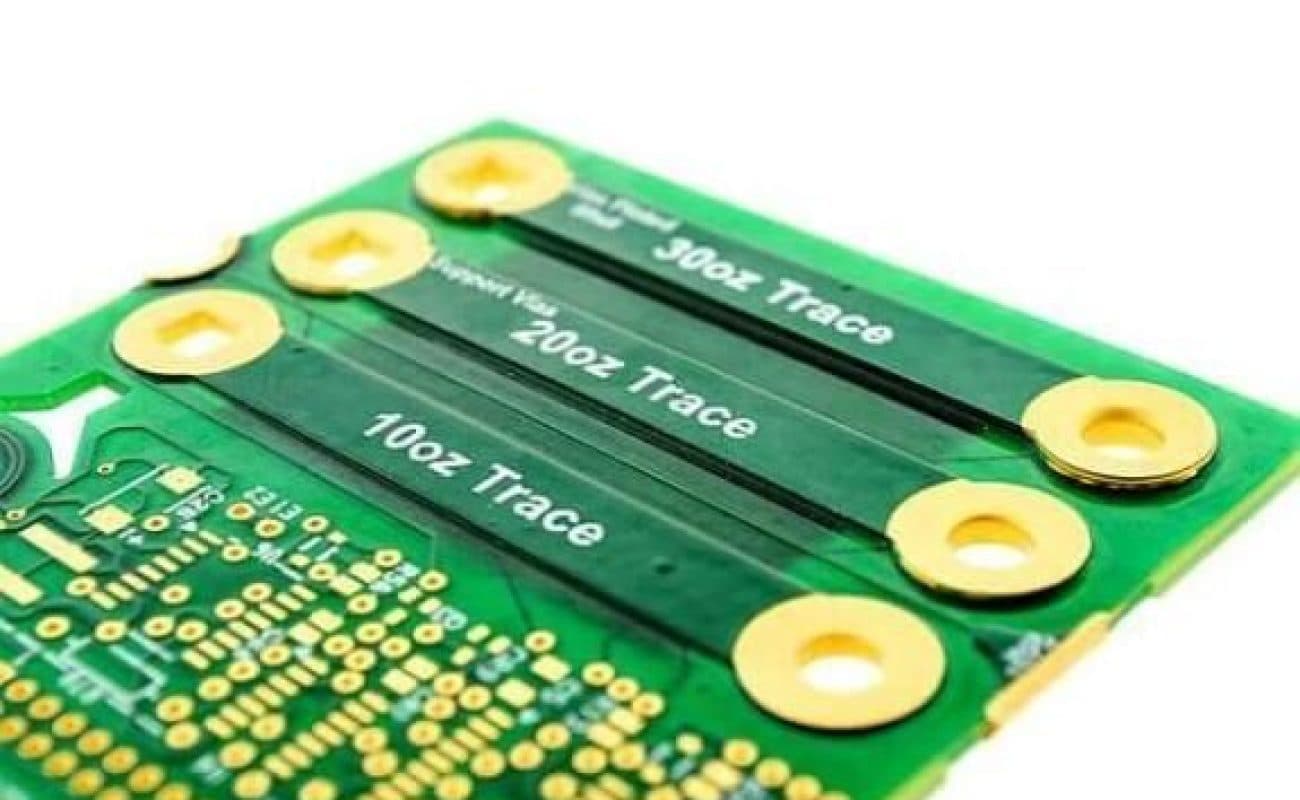

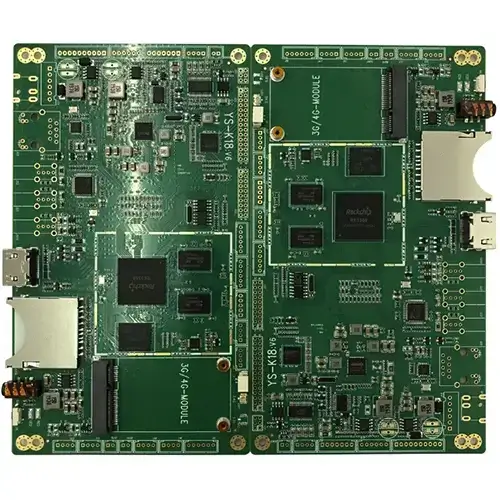

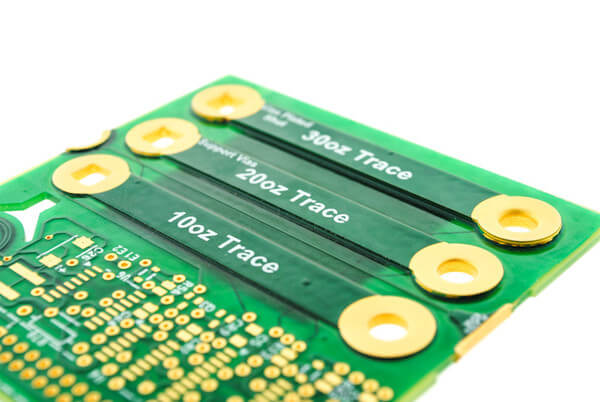

An industrial control and power PCB must balance high current, electrical isolation, creepage and clearance, thermal loading, and long service life. Heavy copper, copper coins, high-CTI materials, thermal vias, or metal-base structures are verified through copper-section inspection, insulation or hi-pot testing, thermal stress, and electrical testing. Simply increasing copper thickness will not resolve an inefficient current path or insufficient creepage and clearance. The limiting cross-section along the current-carrying path, rather than the average copper weight across the PCB, determines temperature rise. As a result, a narrow neck in the PCB layout can still overheat even when the board has heavy copper overall. The quotation must clearly define the current, allowable temperature rise, voltage and insulation requirements, heat-source location, copper cross-sectional area, attachment method, and thermal test conditions.

Edge-AI Wireless Gateway

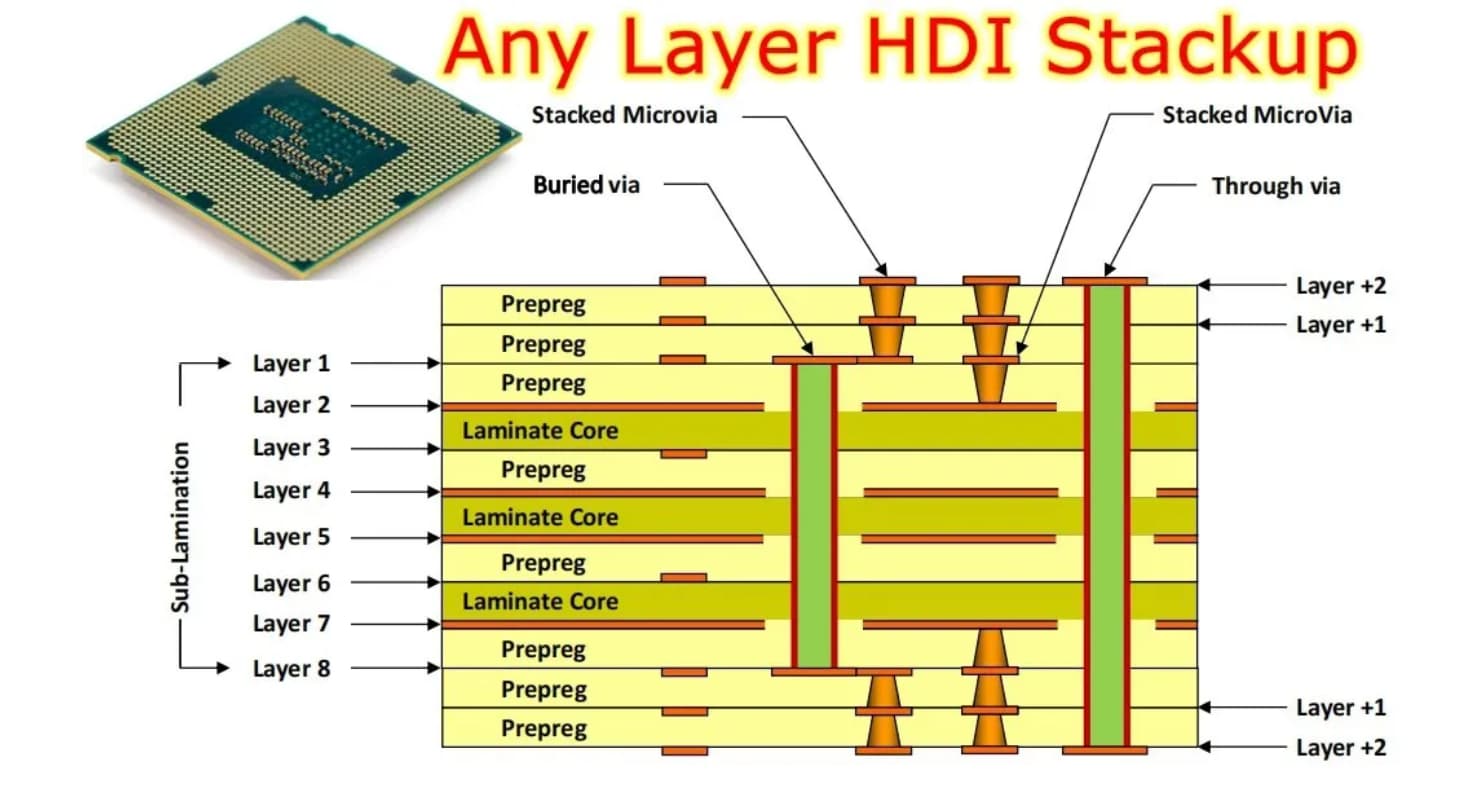

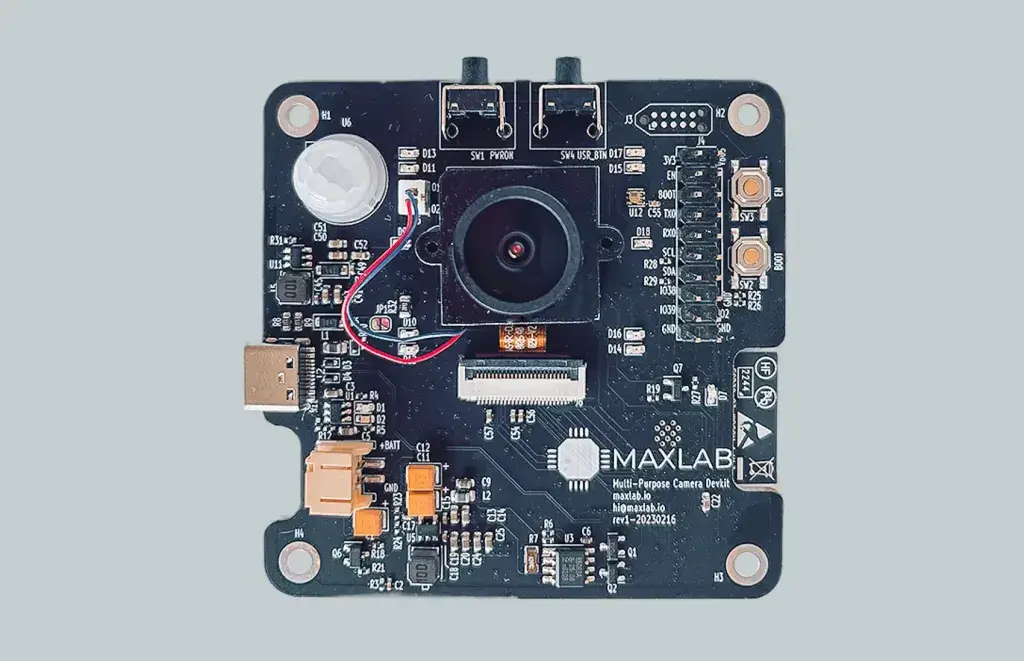

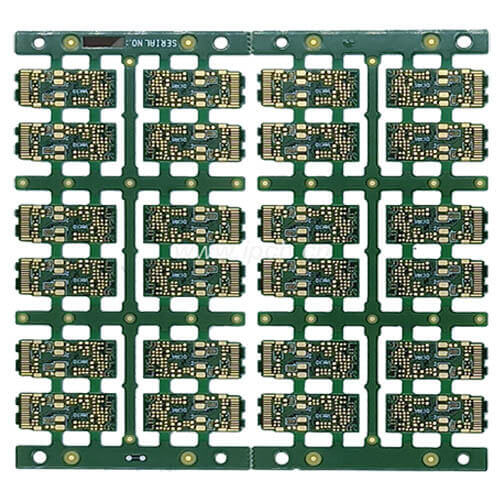

An Edge-AI or Wireless Gateway PCB has limited space, with processors, memory, radios, power-conversion components, and sensors housed on one PCB. Dense construction is achieved with microvias and via-in-pad technologies, while thin dielectric materials support fine-pitch escape. Pad Planarity, Registration, Electrical Testing, and Impedance Control address density, power-noise coupling, and assembly risk. Local Power Integrity must coexist with Dense Escape Routing because compact designs can couple switching noise into sensitive radios. Physically separating RF and switching regions on the PCB does not eliminate noise coupling if their return currents share the same reference plane; this is often overlooked during early stackup reviews. The stackup review must separate High-Speed, RF, and Power-Return requirements and define via-in-pad planarity, impedance targets, Reference-Plane Continuity, and assembly package requirements.

Wide-Bandgap Power Module Substrate

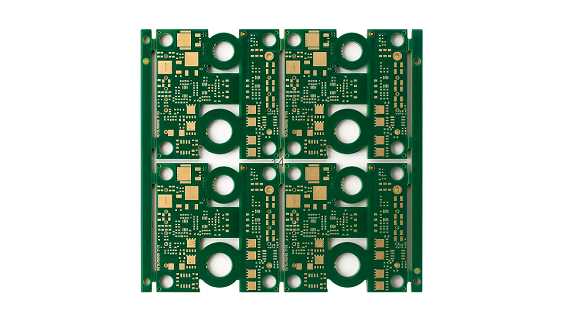

SiC or GaN Power Module Substrates can use AlN DBC or Si₃N₄ AMB to combine electrical insulation, Thick Copper, heat spreading, and power-cycle reliability. Metallization, the copper-to-ceramic interface, partial-discharge behavior, flatness, die attachment, and insulation are important when evaluating the substrate's response to Thermal Cycling and Power Cycling. Power Cycling applies repeated loading to the copper-to-ceramic interface; therefore, interface adhesion and partial-discharge behavior are critical. A substrate that meets room-temperature partial-discharge requirements can degrade after repeated thermal cycling because the CTE mismatch between ceramic and copper gradually weakens the same interface that the partial-discharge test checked only once. The substrate specification must define the ceramic type and thickness, copper thickness, insulation voltage, partial-discharge condition, interface-adhesion requirement, flatness, attachment method, and thermal-cycle profile.
