Flex & Rigid-Flex Assembly Scope
Flex and rigid-flex PCB assembly is a better choice when the electrical layout cannot be assembled as a simple flat FR-4 circuit board. These projects are often more complex than standard PCB assembly because they may combine flexible and rigid areas. They may have bend areas, flex tails, stiffened areas, and rigid-flex transition areas. SUGA will analyze these conditions through the assembly and manufacturing preparation stages, allowing alignment of the assembly route to the board structure, layout, and inspection access.
What We Assemble

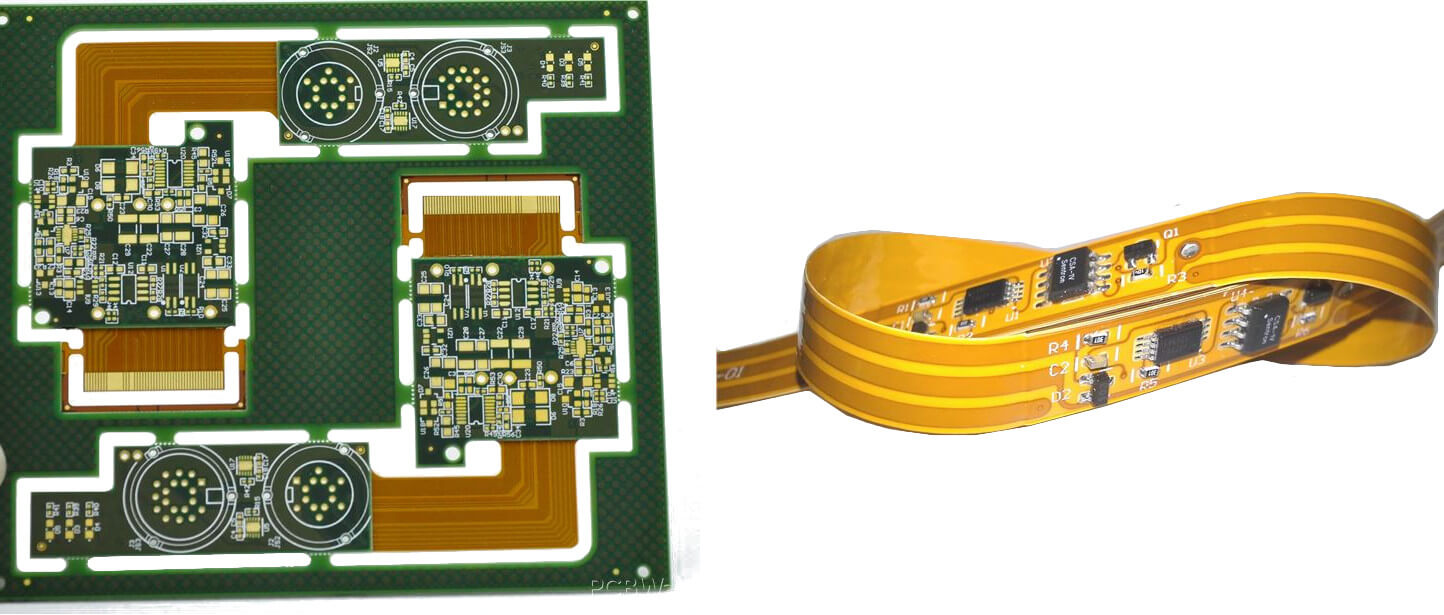

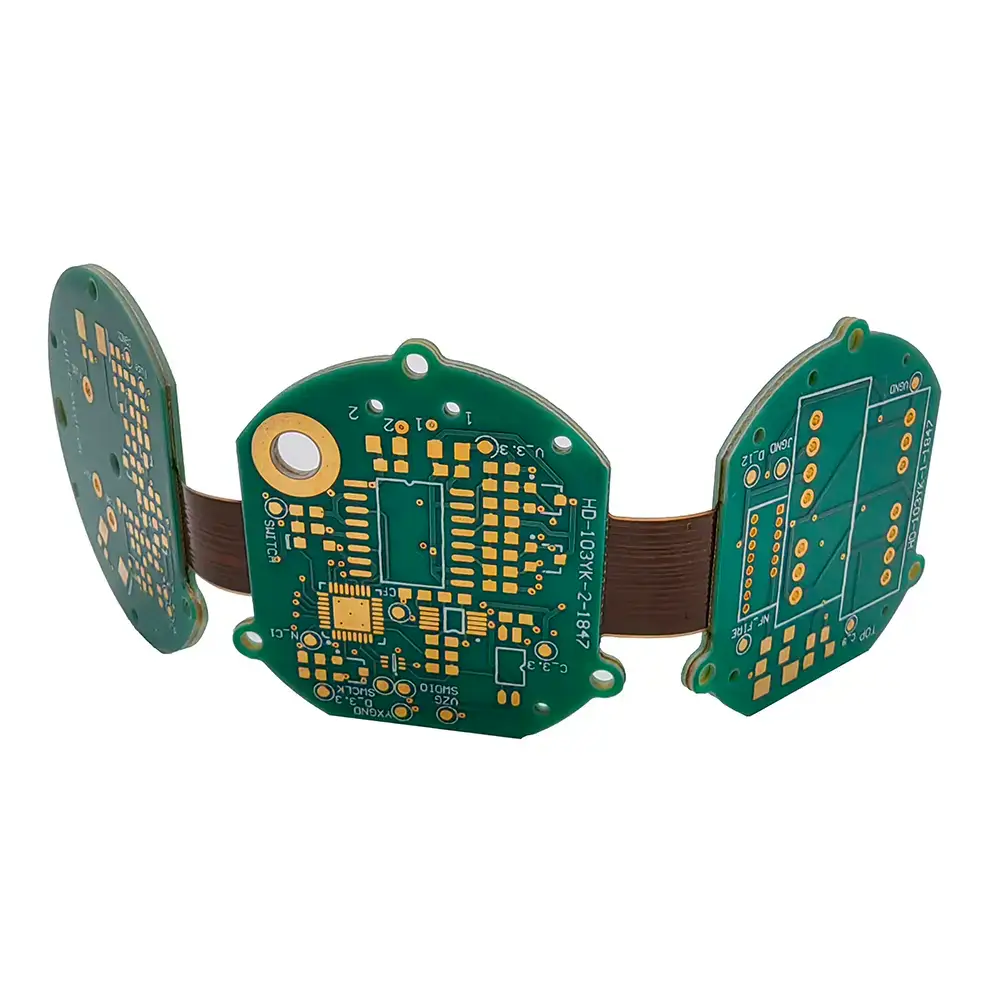

SUGA offers assembly services for flex-only PCB assemblies, rigid-flex PCB assemblies, and stiffened flex areas used in OEM PCBA projects. SUGA focuses not only on component placement, but also on how the flexible area is supported, handled during assembly and soldering, inspected, and protected.
A flex PCB assembly can also be used as a lightweight interconnect or bendable PCB section. A rigid-flex PCB assembly contains both rigid mounting sections and flexible parts. The rigid-flex assembly needs additional checks around the transition areas, including bend direction, copper routing, and local mechanical support.
When This Service Fits
This service fits projects that require assembly decisions based on items beyond the bill of materials. This includes areas that have a defined bend area, rigid-flex interfaces, stiffeners used on connectors or component areas, and controlled handling of flex tails that need to be assembled or inspected after soldering.
This service is also an appropriate fit for projects that require the buyer to have early confirmation of carrier and pallet needs, connector support, dimensional checks, or X-ray access to inspect hidden or difficult-to-see solder joints after assembly has been completed. These additional checks help prevent treating a rigid-flex assembly and flexible assembly as a standard rigid PCB assembly.
What Should Be Confirmed Separately
Certain aspects of the assembly requirements may require related or separate confirmation through other services. For example, PCB fabrication details, urgent schedule compression, prototype validation, BGA-specific inspection, through-hole soldering, full turnkey sourcing, and box-build integration should be reviewed under the relevant service scope.
This will ensure that scenarios regarding flex and rigid-flex assembly, handling, and inspection capabilities are focused on the items that directly affect PCBA manufacturability.

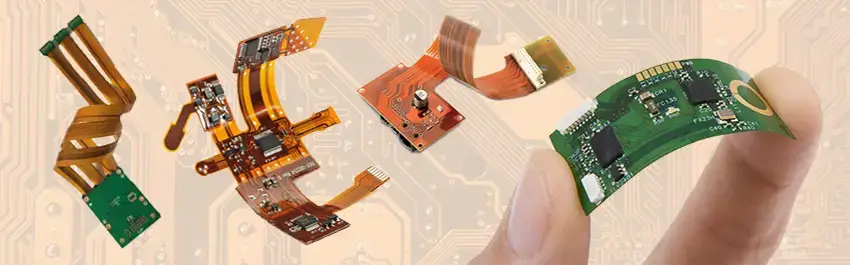

Bend Radius, Materials and Stack-Up Review
Bend performance is one of the primary checks for flex and rigid-flex printed circuit board (PCB) assemblies, as the assembly process adds thermal, mechanical, and handling stresses before the final product is put into use. Finished flex thickness, copper weight, complete layer count, adhesive structure, and bend conditions directly affect whether the assembly can be safely handled during printing, placement, reflow, inspection, and final assembly processes.
When an OEM buys a flex circuit, the primary question is whether the submitted stack-up has enough margin for the intended use, bend area, and assembly process.
Material and Thickness Checks
Most flex and rigid-flex projects commonly use polyimide-based materials, RA copper, coverlay materials, flexible solder masks, and either adhesive-based or adhesiveless constructions. The materials selected not only impact the bare board, but also affect how the circuit performs during reflow, fixture support, local stiffener bonding, and subsequent mechanical loading.
Adhesive-based PI may have adhesive thicknesses in the range of 25–50 µm. Compared with an adhesiveless construction, this added material can reduce the margin available for bending the assembly. Normally, ±0.10–0.15 mm can be treated as a planning value for coverlay opening tolerance. Coverlay tolerance should be monitored, as pads, fine-pitch areas, and local components may all be very close to the flex area.
Bend Conditions
Static and repeated-motion bending should be reviewed separately before comparing their bend-radius requirements. Static bends for 1-layer or 2-layer flex areas can be evaluated by using 6× finished flex thickness as a planning value. Multilayer flex areas should conservatively consider 10–12× finished flex thickness as the margin for static installation.
Dynamic bending areas should use a larger radius than a static installation bend radius. For example, a repeated-bend area could use approximately 100× finished flex thickness as the starting point for evaluation and design processes. A flex thickness of 0.085 mm can translate to approximately 0.85 mm for static installation and approximately 8.5 mm for dynamic bending. The significant difference can affect enclosure design, cable routing, stiffener placement, and whether additional information is needed before assembly planning may begin.
Stack-Up Risk Signals
When reviewing stack-ups, an engineering perspective is recommended that focuses on the technical issues that directly affect assembly and performance reliability. The key components of the stack-up that are critical to determining the overall design viability of any rigid-flex assembly with respect to assembly performance are finished flex thickness, copper weight, total layer count, adhesive structure, the bend area, and the distance between solder joints and the bend area.
In the case of any rigid-flex assembly, special focus should also be placed on the rigid-flex interface because stress concentration may occur when copper, vias, pads, and stiffener edges are poorly positioned.
Flex & Rigid-Flex Material, Stack-Up and Bend-Radius Data
| Feature | Data / Range | Applied Scope | Constraint |
|---|---|---|---|
| Flex base material | PI and RA copper | Flex and rigid-flex bend areas | Material choice affects bend fatigue and thermal behavior. |
| Adhesiveless PI | >150°C exposure confirmed at project start | Higher thermal exposure or reflow planning | Supplier material data and project conditions must be confirmed. |
| Adhesive-based PI | Adhesive thickness 25–50 µm | Flex areas using adhesive construction | Added adhesive can reduce bend margin. |
| Coverlay | Opening tolerance ±0.10–0.15 mm | Pad openings and local component areas | Registration affects pad exposure and soldering margin. |
| Flexible solder mask | Material and project dependent | Flexible areas where mask is used | Mask selection must match bend and process requirements. |
| Static bend radius, 1–2 layer flex | 6× finished flex thickness | Static or flex-to-install bend areas | Reference multiplier; final judgment depends on stack-up. |
| Static bend radius, multilayer flex | 10–12× finished flex thickness | Multilayer static bend areas | More conservative because layer count reduces bend margin. |
| Dynamic bend radius | Approximately 100× finished flex thickness | Repeated-bend zones | Not a cycle-life guarantee. |
| Bend-radius example | 0.085 mm flex: 0.85 mm at 10:1; 8.5 mm at 100:1 | Example calculation | Use only as sample planning math. |
| Medical flex assembly scope | IPC Class 3 when specified | Medical or high-reliability projects | Customer specification or contract defines the class and documentation. |
Final bend suitability depends on the submitted stack-up, copper design, bend use condition, and material data. If IPC Class 3, medical documentation, cleanliness, or additional reliability evidence is required, the requirement should be defined by the customer specification or contract.

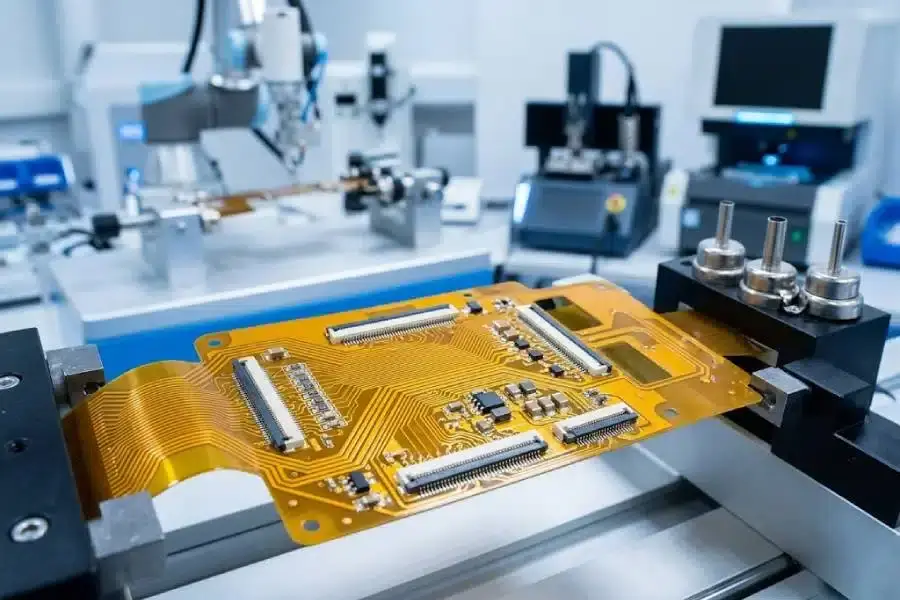

Rigid-Flex Transition DFM
The transition area between the rigid portion and the flexible portion of a rigid-flex PCB assembly is typically the most sensitive area of the assembly. The transition area is where mechanical stresses, copper routing, soldered components, stiffener edges, and board movement can interact. If the transition area is not checked before assembly, although the final PCBA may pass basic placement checks, the PCBA may have a greater risk of cracked traces, lifted pads, plated through hole (PTH) barrel cracks, delamination, or permanent creasing after installation.
SUGA will review the transition details for the rigid-flex section before assembly planning so that the submitted design can be checked against the soldering, handling, and inspection conditions for this project.
Bend-Area Geometry
Bend-area geometry determines how strain will be distributed through the flexible section. Trace direction, copper width variation, sharp corners, and routing proximity to the bend line can all increase local stress. Practical checks for smooth arcs and the avoidance of 90-degree corners help reduce stress in areas that may bend during assembly, installation, or product use.
In static bends, the primary concern is whether the installed position causes concentrated strain. With dynamic or repetitive bending, routing and copper placement become increasingly important as fatigue risk increases over time.
Stress Points Near the Bend Area
The area closest to the bend zone should be handled carefully. Conductive pads, PTHs, vias, solder joints, and stiffeners have increased rigidity compared with the surrounding flexible material. Thus, they may act as stress points when the PCB is bent or handled. As the bend radius becomes smaller, the location of these features becomes more important.
This is why a flex-to-rigid connection cannot simply be viewed as a mechanical transition, but rather as a point where trace routing, copper balance, component placement, and support design should be evaluated together for assembly risk.
Transition-Zone Failure Modes
Issues that arise in the rigid-flex transition usually cannot be attributed to only one visible defect. Poor transition design or inadequate support can increase the likelihood of cracked traces, cracked vias, damage to PTHs, pad lifting, delamination, warpage, twisting, or permanent creasing. These problems may develop during assembly handling, reflow exposure, final integration, or field use.
The following evaluations are focused on bend areas and rigid-flex transition zones before assembly decisions move forward.
Flex Bend-Area and Rigid-Flex Transition Zone DFM
| Review Factor | DFM Rule | Applied Area | Failure Risk |
|---|---|---|---|
| Bend classification | Define static or dynamic bend before review | Flex bend areas | Incorrect bend assumptions and fatigue risk. |
| Trace direction | Check trace direction relative to the bend axis | Bend areas | Copper fatigue or concentrated strain. |
| Trace geometry | Use smooth arcs and avoid 90° corners | Bend routing | Stress concentration and copper cracking. |
| Neutral-axis control | Keep critical copper closer to the neutral axis when possible | Dynamic or multilayer flex | Tensile or compressive strain on copper. |
| Via and pad keep-out | Avoid vias, pads and PTHs in dynamic bend areas | Bend zones | Barrel cracks, pad lift and copper fatigue. |
| Static bend keep-out | Keep rigid features away from minimum-radius bends | Static bends near minimum multiplier | Localized stress and permanent creasing. |
| Teardrops and fillets | Use where appropriate at trace-to-pad transitions | Pad and trace transitions | Copper fracture at stress points. |
| Rigid-flex transition zone | Review transition details before assembly planning | Rigid-flex interfaces | Delamination, barrel cracks and pad lift. |
| Copper balance | Check copper symmetry and density near the transition | Rigid-flex transition areas | Warpage, twist and stress imbalance. |
| Failure modes checked | Review cracked traces, cracked vias, PTH barrel damage, pad lift, delamination and permanent creasing | Bend and transition zones | Missed failure risks during assembly planning. |
These items support design review before assembly, but do not replace the customer’s design rules, stack-up approval, or reliability qualification. If a submitted design contains a high-risk transition feature, the next step is to define the design intent and assembly condition before entering production planning.
Handling, Carrier and Stiffener Planning

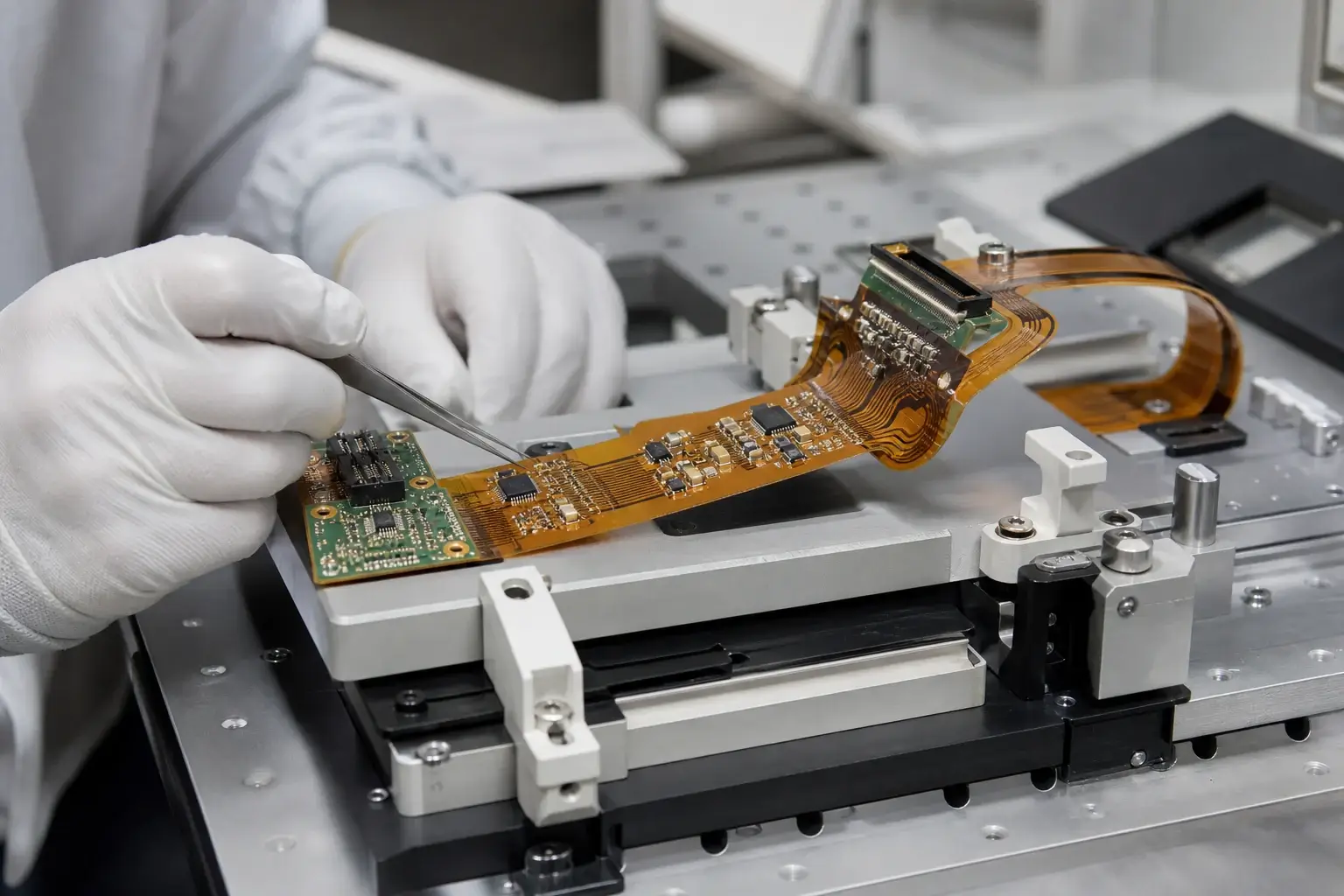

Flex and rigid-flex PCB assemblies require different handling methods compared with a standard FR-4 board. For example, thin flexible areas may shift during printing and component placement, bend during transfer, absorb moisture before reflow, or sustain damage during panel release. If these conditions are not adequately considered before assembly, what may appear to be a placement issue may actually be a support, handling, or mechanical-loading problem.
Before entering production planning, SUGA verifies carrier support, stiffener areas, connector zones, moisture management, and panel release methods. These verifications help validate that the submitted structure can be assembled with stable registration and controlled support.

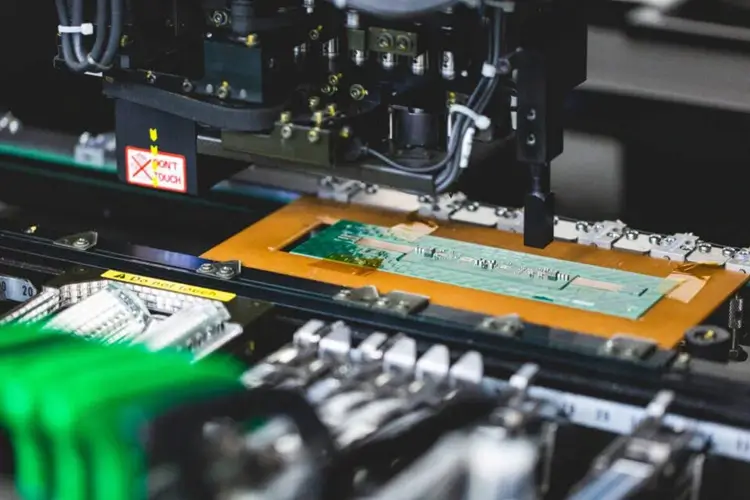

Carrier and Pallet Support
Flexible sections typically need carrier or pallet support during solder paste printing, component placement, and reflow processes. A flex thickness range of 0.05 mm to 0.25 mm may require additional support to keep the substrate flat and registered during the assembly process. Without adequate support, movement, lifting, and distortion of the board may occur during printing and component placement.
Carrier planning also affects stencil contact, component alignment, and how assemblies are moved between process steps. The required support for flexible circuits is primarily based on flex thickness, panel format, component loading, stiffener position, and whether the flexible area needs to remain free to bend after assembly.
Stiffener and Connector Areas
Stiffeners can typically be used for connector zones, component mounting regions, and local soldering locations where mechanical support is required for a flexible circuit. The material used as a stiffener, such as PI or FR-4, may depend on the project structure, local rigidity requirements, and connector loading.
Connector zones require special consideration for assembly planning, as multiple parameters, including insertion force, mating force, cable pull direction, and local support, can affect the mechanical load limits of the electrical interface. To ensure that the assembly plan can accommodate connector housing position, strain relief, and stiffener coverage, the assembly plan should verify these critical factors, in addition to the distance between solder joints and flexing locations.
Moisture, Reflow and Panel Release

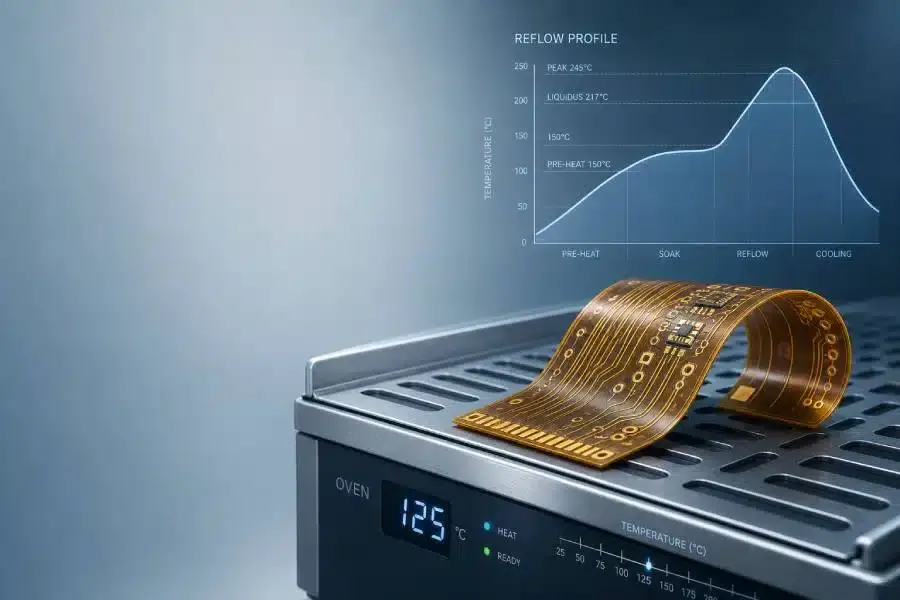

Prior to the reflow process, it is necessary to confirm how flexible circuit materials and constructions absorb moisture. A 105–125°C / 4–6 h bake condition can be used as a reference point; however, material, finish, thickness, and supplier recommendations should be followed.
Thermal expansion characteristics of many rigid-flex assembly materials also need to be considered. For example, FR-4 may have X/Y CTE values of approximately 14–17 ppm/°C and Z-axis CTE values of 50–70 ppm/°C below Tg. In comparison, PI material may have approximately 14–20 ppm/°C in-plane CTE. Differences in these CTE characteristics can create high-stress levels in rigid-flex transition areas during reflow and cooling processes.
Panel release needs to be considered according to the selected release method. Tooling holes, breakaway tabs, routing, laser scoring, and die-cutting have inherent risks of damaging flex tails. Therefore, the method ultimately depends on panel design, production volume, flexible circuit geometry, and the amount of mechanical force that the flexible area can withstand.
The following controls summarize the handling conditions that affect the stability of flex and rigid-flex assemblies.
Flex & Rigid-Flex PCB Assembly Handling and Verification Controls
| Control Area | Process Stage | Control Method | Limit / Risk |
|---|---|---|---|
| Moisture sensitivity control | Before reflow | PI substrate baking: 105–125°C / 4–6 h reference | Depends on finish, thickness and supplier requirements; not a fixed recipe. |
| Carrier or pallet handling | Printing, placement and reflow | Support 0.05–0.25 mm flex thickness for registration | Not a full capability limit; support depends on panel design and component loading. |
| Rigid-flex thermal support | Reflow and cooling | FR-4 X/Y CTE 14–17 ppm/°C; FR-4 Z-axis CTE 50–70 ppm/°C below Tg; PI in-plane CTE 14–20 ppm/°C | CTE mismatch can affect transition stress; values vary by material. |
| SMT stiffeners | Local assembly zones | PI or FR-4 stiffener under connector or component areas | Added bonding step may affect cost and schedule. |
| Component placement near bends | Placement planning | Keep components and solder joints away from bend lines as needed | Bend stress can damage solder joints or local copper. |
| Connector and cable zones | Connector loading | Define insertion cycle count and mating force per project | Connector force can stress flex tails and solder joints. |
| Depanelization methods | Panel release | Tooling holes, breakaway tabs, laser scoring, routing or die-cutting for volume flex | Edge damage and flex-tail damage risk. |
| Coverlay and mask control | Printing and inspection | Check coverlay and mask opening alignment | Misregistration can expose or cover pads. |
| Inspection scope | Inspection phase | AOI, visual inspection, dimensional check and X-ray where access is limited | Inspection scope depends on the agreed plan; no default 100% inspection is implied. |
Baking conditions, CTE values, flex thickness ranges, and carrier requirements should not become locked-down process settings that apply to all projects. Final handling decisions should be based upon the submitted board structure, material data, component loading, and customer acceptance requirements.
Quality Records and Inspection Evidence
Flex and rigid-flex PCB assemblies will typically require inspection evidence based on the actual structure of a particular assembly rather than a generic checklist. The type of information contained in the quality records and inspection records should be based on the visibility of solder joints, connector areas, stiffener locations, hidden solder joints, and other mechanical characteristics that affect the buyer review process.
SUGA uses inspection planning for each specific project based on the project drawing, component layout, package access, and mutually agreed test requirements so that the records used in this quality assessment process will not treat each flex or rigid-flex assembly the same.
Inspection Scope

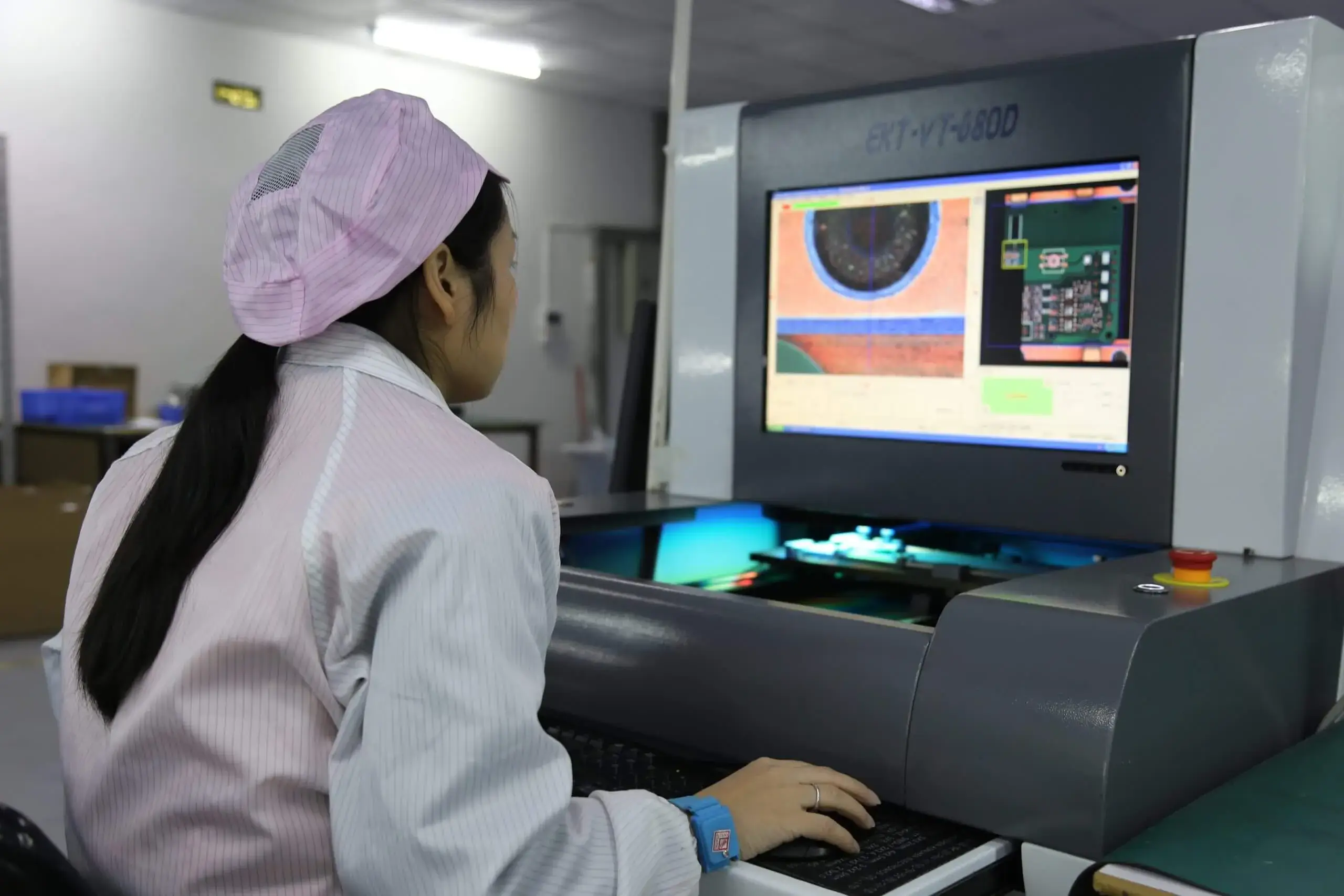

Inspection scope can include AOI, visual inspection, dimensional measurements, and X-ray inspection when solder joints are hidden from view or otherwise difficult to access physically. AOI provides visible solder and placement verification, while visual and dimensional inspections can confirm connector locations, stiffener alignment, flex-tail conditions, and local mechanical characteristics.
X-ray is useful for determining solder joint condition when it cannot be confirmed using standard surface inspections. Any X-ray procedure should be developed based on package type, board structure, and solder joint access, and not be presented as a default requirement for all flex or rigid-flex assemblies.
Records for Buyer Review
Procurement, QA, and engineering teams can use these records to determine whether the completed assembly meets the purchase agreement. Buyer review records for flex and rigid-flex assemblies may include solder inspection, dimensional inspection, and, where applicable, X-ray review and functional or electrical testing.
ICT, ATE, or functional test may be required depending on the product design, but these tests require test access, feasible fixture development, and fulfilled buyer acceptance criteria. ICT, ATE, or functional test should not be an automatic requirement for every project.
Acceptance Criteria
Acceptance will be determined based on customer drawings, assembly requirements, and agreed-upon test and inspection plans. This is especially important for flex and rigid-flex assemblies because there are significant differences in the way bend and stiffener areas are constructed, as well as the visual accessibility of components within the assemblies.
If any additional documentation or records are required by customers to meet IPC Class 3 expectations, medical documentation, cleanliness records, or supporting test documentation, they must be specifically defined in the customer specifications or contractual agreement before production planning.
Management system information may support supplier review but is independent of project-level inspection records. SUGA may refer to documented quality and environmental management system information available for supplier review as appropriate.

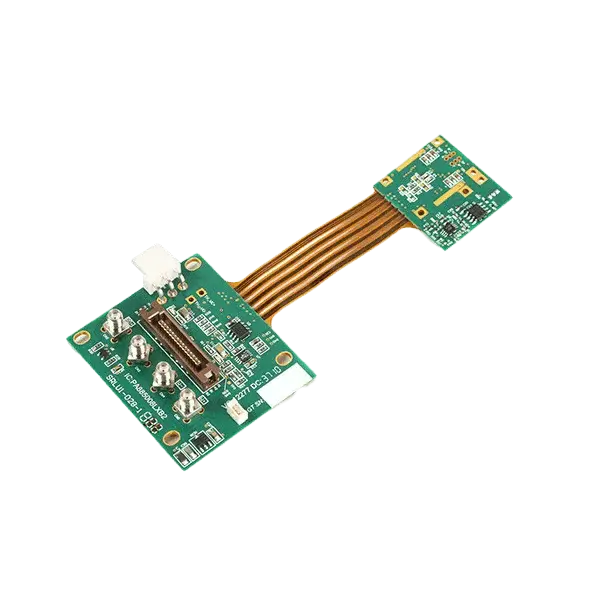

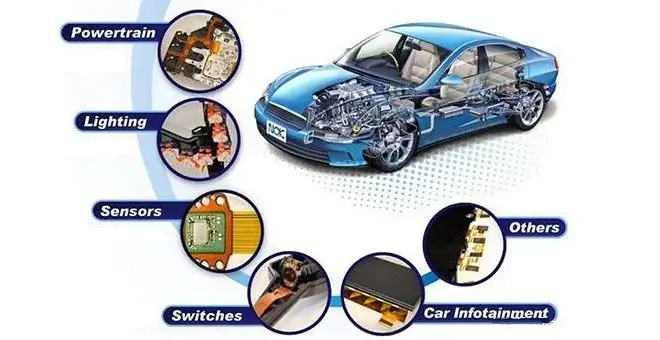

Where Flex & Rigid-Flex Assemblies Fit
Flex and rigid-flex assemblies are typically utilized when mechanical or routing limitations exist for product integration due to the inability of a flat rigid PCB to overcome them satisfactorily. Height, connector count, wiring labor, bend routing, or the requirement for mounting rigid elements and flexible interconnects drive the need for flex and rigid-flex assemblies.
All flex and rigid-flex assembly projects undergo an examination where SUGA reviews the flex area of the assembly to determine where additional support is needed, how the flex area is to be bent, and whether the assembly will allow inspection after it has been assembled.

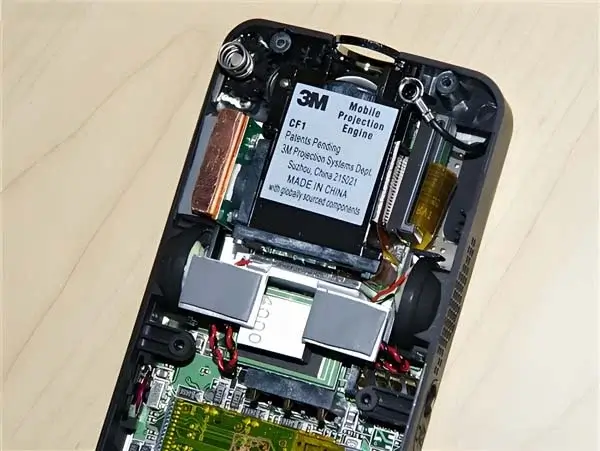

Limited Internal Space
Flex or rigid-flex constructions fit well into situations where additional board-to-board connectors, wire harnesses, or manual interconnect steps cannot be utilized due to enclosure limitations, assembly height restrictions, increased wiring labor, or the risk of wires being routed improperly. In these cases, a flex structure can route signals through a controlled flex section instead of using individual wires for each signal carried by the assembly.
Before commencing with an assembly review, it should be verified that all bend areas, stiffeners, component locations, and post-assembly inspection access can be practicably produced, rather than assuming that the size of the package will automatically simplify the assembly.

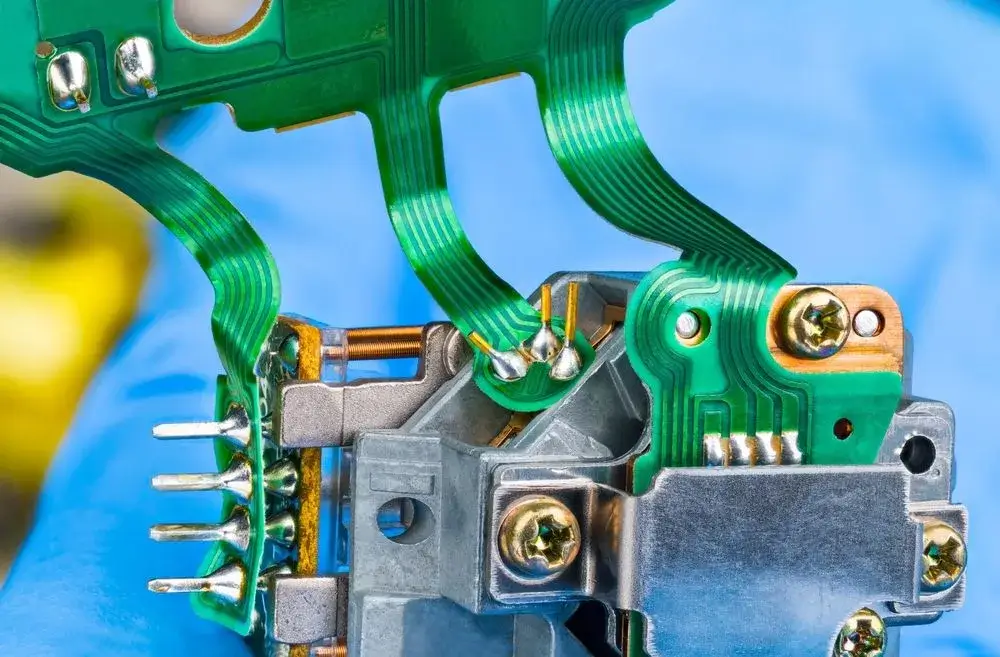

Bend or Motion Requirements
Flex circuits are used to create an assembly designed to allow bending during installation. Some flex circuits are expected to experience multiple cycles of low-cycle bending throughout product use. These two applications will require different bend radii, copper routing, and strain relief design decisions.
The transition area between the rigid and flexible portions of rigid-flex assemblies should be addressed during assembly planning, as that area can experience a greater concentration of mechanical forces associated with handling, installation, and movement. Proper transition-zone design should be considered to reduce the chance of damage created by flexing the assembly at the junction between the rigid and flexible areas.
Connector and Cable Reduction
Flex and rigid-flex assemblies are effective at reducing the number of cable assemblies and board-to-board connectors required and at reducing wiring labor. Typically, when a connector is too tall, requires excessive manual wiring labor, or has unreliable routing due to height restrictions, the potential for integrating the cable assembly within the flex or rigid-flex assembly is of the greatest benefit.
Any resulting mechanical loads placed upon the interface between the rigid-flex assembly and the flex tail or stiffener edge should be verified to ensure the selected assembly adequately supports both the assembly load requirements and the assembly’s product integration requirements.

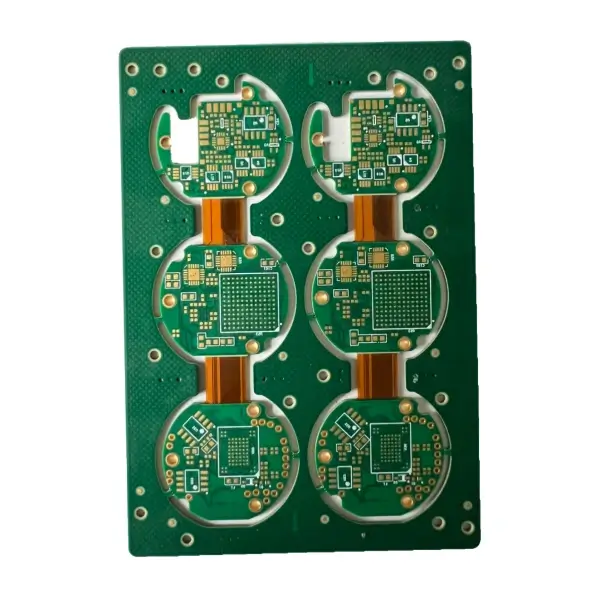

What Affects Cost and Schedule
Engineering preparation is one of the primary contributors to the cost of flex and rigid-flex PCB assembly. Key variables include the material structure, stack-up complexity, support fixtures, handling steps, inspection or testing requirements, and whether a complete set of construction files was submitted with the design.
Material and Stack-Up Variables
The material selected will impact the amount of time required to prepare the material and the risks associated with purchasing. PI material, RA copper, construction type, copper weight, number of layers, and final thickness of the flex can have a major effect on how much time is required to check stack-up and bend margin before assembly.
Assembly Support Variables
Carrier or pallet support, stiffener bonding, connector reinforcement, or method of depanelization will require more or less setup time depending on how the board is held, supported, and released. All of the above items will also affect the ability to reduce handling risk before reflow and final inspection.
Verification Variables
Requirements to inspect or test the product are additional cost drivers because they add X-ray review, dimensional confirmation, functional testing, ICT, ATE, or customer-defined acceptance criteria. In order to determine costs, the determining factor is not the inspection name only but the access, fixture, record, and acceptance requirements associated with it.
Delayed evaluations occur due to missing stack-up details, undefined bend zones, undefined stiffener notes, or incomplete inspection requirements; any of these items may require additional engineering clarification and may lead to Design for Assembly (DFA) evaluations before a reliable quote or production plan can be developed.
Quote Preparation Checklist
Having a well-defined project file set, including assembly engineering files, enhances SUGA’s ability to assess flex and rigid-flex PCB assembly risks. The quote for such jobs cannot be based solely on BOM and quantity; additional items such as bend areas, stack-up, stiffener notes, connector details, and acceptance requirements may also influence assembly planning.
When files are incomplete, engineering questions may be needed before providing a reliable quote or production plan.
Design and Fabrication Files
Flex geometry, rigid-flex construction, finished flex thickness, copper weight, bend areas, and transition-zone locations are described in Gerber files and stack-up documentation. If the project has a defined bend radius, dynamic bend area, flex-to-install region, or stiffened flex tail, these items should be included in the design files.
When dealing with projects that contain transition areas, local stiffeners, connector zones, or limited visibility, rigid-flex notes are especially important. Specific rigid-flex notes allow SUGA to identify whether the project will require carrier support, special handling, or additional design-for-assembly evaluations.
Assembly Files
For flex and rigid-flex projects, the BOM, centroid file, assembly drawing, polarity marks, component orientations, and placement notes help define the board assembly method. An assembly drawing for flex and rigid-flex assemblies should also include information regarding the location of stiffeners, the areas in which connectors will be placed, component keep-out zones near bends, and mechanical constraints that affect handling.
Connector-related information can help identify how factors such as mating force, cable pull direction, insertion cycle expectations, and local support requirements will affect local solder joint or flex-tail stress.
Verification Requirements
Verification and testing requirements should be submitted to SUGA whenever they are known. Examples include X-ray expectations for hidden or limited-access solder joints, dimensional checks, functional tests, ICT or ATE expectations, and customer acceptance criteria.
SUGA can assist in determining what should be confirmed before production planning based on the board structure, component layout, and buyer requirements when no fixed inspection plan exists.
Upload BOM and Files
FAQ
Generally, the cost to assemble a flex or rigid-flex PCB is higher than that for a simple rigid PCB. This is due to the additional cost associated with bend-area checks, special handling, and potentially carrier or stiffener support for flexible or mixed rigid-flex structures. The increased costs associated with turning a flexible or mixed rigid-flex PCB into a stable assembly route are the key drivers, not simply the term “flex.” A project that requires repeated bends, has a rigid-flex transition zone, or has limited inspection access may require additional work before production planning can begin.
The cost of assembling a rigid-flex PCB is determined by the data and decisions needed to define the route the product will take through assembly. Some key drivers for determining assembly cost are stack-up clarity; finished flex thickness; copper weight; adhesive-based or adhesiveless construction; any required carrier or pallet; any required bonding of stiffeners; connector loading; depanelization method; and any required testing or inspection records. Providing complete files for quotation can reduce engineering questions and improve response time. If complete files are not provided, such as missing bend notes, stiffener details, acceptance criteria, or other pertinent data, it may take longer to determine quotation costs and schedules.
Both flex and rigid-flex PCB assemblies can be reliable if the bend area, stack-up, transition zone, support method, and inspection plan are checked prior to assembly. Most reliability risks stem from inadequate bend-radius planning, routing of copper close to the bend area, vias or pads located in high-stress zones, weak local support, or limited inspection access. For flexible PCBs that are bent multiple times, the bend radius must be larger and the fatigue margin greater than for a static installation bend.
The main risk factors for flexible PCBs during assembly are: 1) flex movement during printing or placement. 2) Inadequate carrier support. 3) Stress near bend areas. 4) Misalignment of stiffeners. 5) Exposure to moisture before the reflow process. 6) Damage to the assembly due to panel release. 7) Limited access for inspection. These risks differ from those associated with standard rigid PCBs. The flexibility of the material allows for motion, bending, and deformation during handling. Also, there are several other considerations involved with the material and stack-up of a flexible PCB design that will affect the assembly outcome. Some examples include finished flex thickness, copper thickness, adhesive thickness, coverlay opening tolerance, bend condition, and the distance of components from the bend area.
A flex PCB is made with a flexible circuit material that allows it to bend or route through limited space. A rigid-flex PCB combines rigid and flexible PCB sections into one integrated design, where the rigid areas typically support components or connectors, while the flexible PCB sections are used for routing, movement, or space-saving interconnects. While the rigid-flex PCB provides more routing options, rigid-flex PCB assembly projects typically require more attention to the transition zone between the rigid and flexible sections, whereas flex-only assembly projects typically focus on the bend area, stiffener, carrier support, and connector flex-tail handling.
When considering flex or rigid-flex PCB assembly, an OEM needs to determine whether the application can accommodate separate board-to-board connectors, wire harnesses, or flat rigid-board routing without increasing height, adding labor, or reducing reliability. Some common triggers include flex-to-install methods, repeated or low-cycle flexing, connector reduction, and the need for integration between rigid mounting areas and flexible sections. The OEM must check the design parameters against bend radius, finished flex thickness, component placement proximity to bend areas, and inspection access.
A flex PCB may connect to a rigid PCB through a connector, soldered flex tail, stiffened flex area, or an integrated rigid-flex transition structure. In developing an assembly plan, the assembly method must take into consideration both the electrical connection and the way the flexible PCB will be subjected to mechanical stress at the connection area. In the transition or connector area, the design should be checked against bend direction, stiffener coverage, connector force, strain relief, and component placement. Vias, pads, PTHs, and solder joints should not be located in areas where bending creates concentrated stress points.
A typical package for requesting a quote for flex or rigid-flex PCB assembly should consist of a BOM, Gerber files, centroid data, stack-up, assembly drawings, polarity notes, bend-area notes, stiffener notes, connector notes, and inspection or test requirements. Stack-up and bend-area information in rigid-flex PCB projects is especially important since these factors will determine bend margin, transition-zone risk, carrier support, and inspection planning. The more complete the files received, the better SUGA can identify engineering questions at the earliest stage of assembly and prepare a more accurate assembly plan.
