Smart Manufacturing & MES for PCB Assembly
MES-Linked PCBA Traceability for OEMs
In printed circuit board assembly (PCBA), smart manufacturing cannot be claimed just because a manufacturing execution system (MES) exists. The original equipment manufacturer (OEM) must verify three things before this claim has value: traceability depth, the completeness of the trace package, and whether the traceability work is included in the quote.
To evaluate a practical MES, bill of materials (BOM) and approved vendor list (AVL) records, material lots, program setup, inspection and test records, nonconformance closure, and shipment history should be tied to the proper board, panel, or production lot.
- BOM and AVL records
- Material lots and program setup
- Inspection and test records
- Nonconformance closure and shipment history

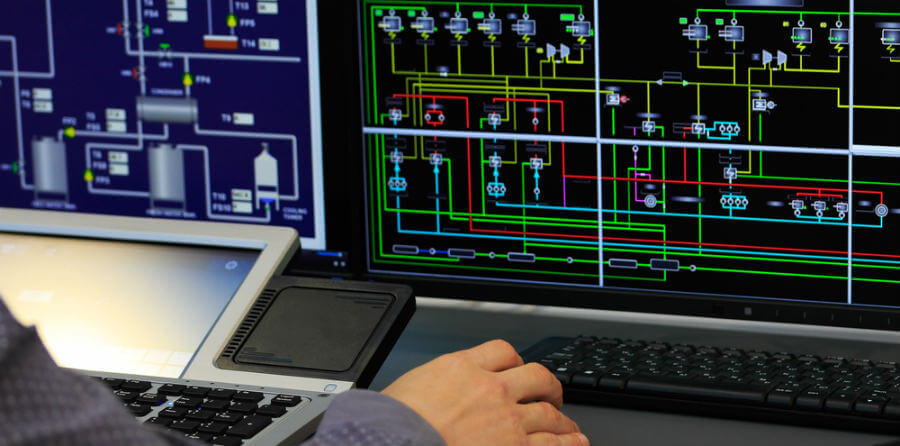

MES in Electronics Manufacturing: Records, Not Labels
An OEM may see MES listed in an EMS supplier’s capability statement but still have no access to release records, rework closure, or traceability. When evaluating a supplier’s MES, an OEM must look at the records it can retrieve, not the software label.
ERP Planning vs MES Build History
Enterprise resource planning (ERP) systems deal with commercial and planning records, such as purchase orders, work orders, inventory movement, and shipment tracking for finished goods. MES is located closer to the manufacturing area of the PCB assembly process. The value of MES to the PCB assembly build process lies in its ability to tie together the approved BOM, AVL, Gerber files, assembly drawing, production lot, material scan, station activity, and inspection or test result without losing the context of the build.
For an OEM, ERP-level progress cannot determine whether the build used the right material lot, whether the build is connected to the correct program revision, or whether the inspection records are linked to the build.
When reviewing an electronics manufacturing services (EMS) supplier, ask what production history the MES can retrieve and in what format it can be provided. This helps compare EMS suppliers’ builds on available records rather than progress updates.
Build IDs Make Machine Data Traceable
Equipment logs must link back to the build record. A build identifier, such as a production lot number, panel ID, or board ID, is essential for traceability.
Logs such as design parameters, operator activity, equipment status, and alarms provide only part of the history. To connect machine logs to the production record, the logs must relate back to the build identifier assigned to the assembly during production.
The existence of machine logs alone is not sufficient to establish build traceability. Machine logs must be able to answer the required release questions, such as which lot was built, which materials were loaded, which station logged the event, which result was logged, and whether any open issue remained before shipment.
OEE Is Not Build Traceability
Machine logs used for overall equipment effectiveness (OEE) and smart factory analysis may describe how a manufacturing facility conducts day-to-day operations, but they do not provide a link to project-level records or establish build history. Smart factory or Industry 4.0 PCB assembly claims should still be judged by build-level traceability, not dashboard or equipment-efficiency claims. OEMs cannot establish build history based solely on OEE claims.

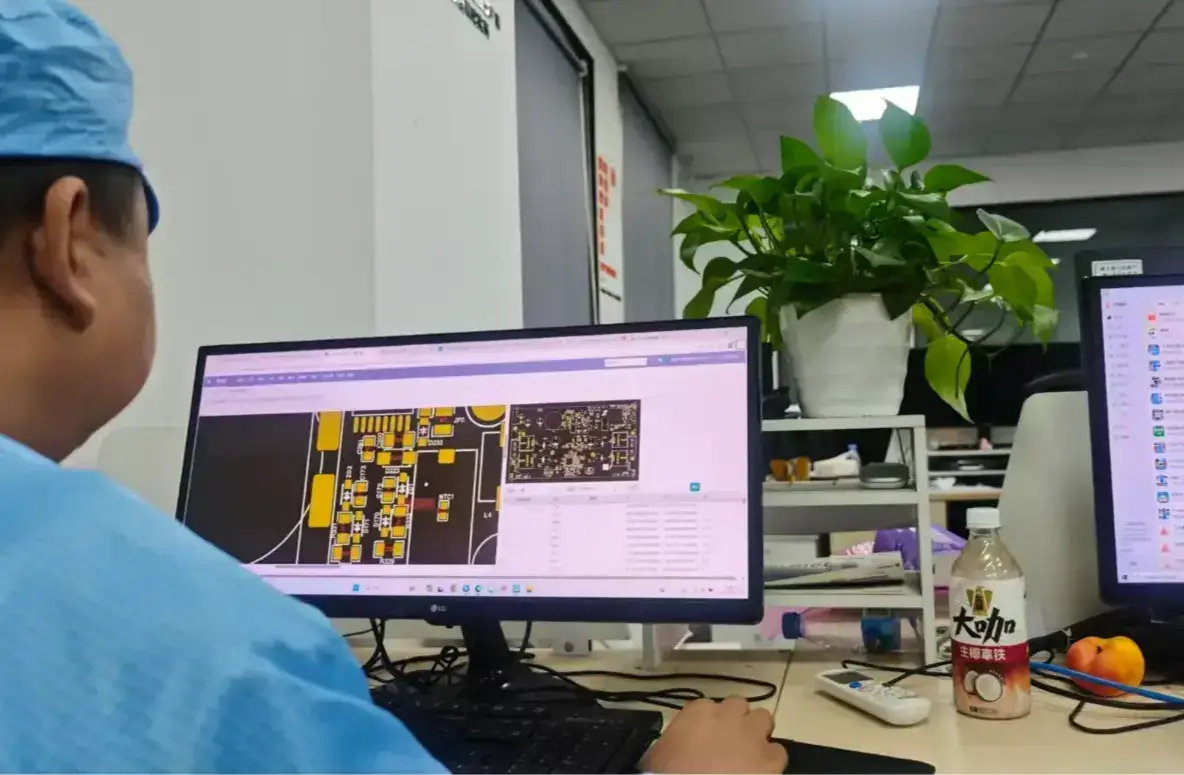

MES Traceability Records for PCBA Release
The trace chain is the connection between captured manufacturing records, release documents, and the build identifier. For PCB assembly, digital traceability only has release value when production records can be tied to a lot, panel, or board identity. Once the depth of traceability is defined, the next step is to understand the construction of an MES trace chain. For PCBA manufacturing, a good traceability record identifies five elements: tracked object, linked fields, capture point, release use, and record form.
By maintaining this structure, factory-produced records will not remain as isolated logs. The OEM understands what is being tracked, where the data was captured, how it supports the release process, and what records can be examined later.
MES Traceability Chain for PCBA Manufacturing
| Traceability Object | Linked Fields | Capture Point | OEM Use | Record Form |
|---|---|---|---|---|
| Work order and revision | Approved BOM, Gerber, assembly drawing, revision, quantity | MES job setup before production start | Build basis matched to approved order | Work order sheet with BOM revision and build quantity |
| BOM and AVL material match | BOM line, manufacturer part number (MPN), manufacturer, approved alternate rule | Incoming issue and line-loading scan | Loaded material matched to approved source | Material loading log with MPN and lot ID |
| Component lot ID | Component lot, date code when captured, supplier label, storage condition | Material receipt and surface-mount technology (SMT) or through-hole technology (THT) loading | Component batch tied to assembly lot | Supplier label image set with lot ID and storage condition |
| PCB panel or board ID | Panel ID, board serial, production lot ID | Barcode or QR scan through production stations | Unit or panel linked to production sequence | Panel traveler with board serial and station scans |
| SMT program file | Product revision, placement program, machine station | SMT line setup check | Program matched to approved revision | Program setup tag with machine station and revision code |
| Inspection images and results | Solder paste inspection (SPI), automated optical inspection (AOI), X-Ray, visual, or first article inspection (FAI) result required by quality plan | Inspection station capture | Inspection records tied to build identity | Inspection trace sheet with board ID and lot ID |
| Electrical or functional test result | In-circuit test (ICT), functional circuit test (FCT), flying probe, or electrical result governed by test plan | Test station capture by defined identity level | Tested unit tied to pass or fail result | Test trace sheet with board ID and lot ID |
| Nonconformance report (NCR) and rework action | NCR, repair instruction, follow-up inspection or retest result | Rework station closure | Corrected unit tied to verification result | Rework trace log with NCR ID and retest result |
| Shipment label and packing lot | Packing list, carton label, lot ID, shipment date | Final packing scan and shipment setup | Released units tied to outbound lot | Shipment trace package with lot ID and carton label |
Revision and Lot Setup Before Production
Before production starts, the work order should lock the approved BOM, Gerber files, assembly drawing, revision, and build quantity. Later material and inspection records are only useful when they can be traced back to this locked build basis.
The issue of revision must be addressed before production. OEMs need to verify which files used to set up their products are the correct revisions recorded in the product history. A revision mismatch can make two build records appear comparable when they are not.
Lot, Panel, and Board-Level Traceability
Lot-level traceability allows a manufacturer to check a batch of products that were produced together. Panel-level traceability relates to capturing movement records through a manufacturing facility and how the panels were assembled. Board-level traceability allows the manufacturer to identify one specific product through one specific product history record. For manufacturing purposes, the difference between board-level and lot-level traceability is critical in helping identify products. The required lot, panel, or board level should be determined before production.
The assembler may only perform lot-level traceability and therefore may not have traceability records for retesting or inspection associated with one unit. If that level of detail is needed, clarify it with the supplier before establishing the setup plan, not after a field issue or shipment hold occurs.
From MES Logs to Build Records
Once the assembler delivers collected MES records in a trace package, the OEM team can use them for verification and validation before receiving the order. Depending on the agreed records, deliverables may include a material-loading log, a panel traveler, an inspection trace sheet, a test result sheet, a rework-trace log, and a shipment trace package for comparison against the approved build basis.
Once material has been placed on a PCB, the material source, such as the OEM-approved supplier list, the material condition, such as moisture-sensitive component handling, and program controls, such as product revision, will determine whether the traceability chain has maintained its integrity.

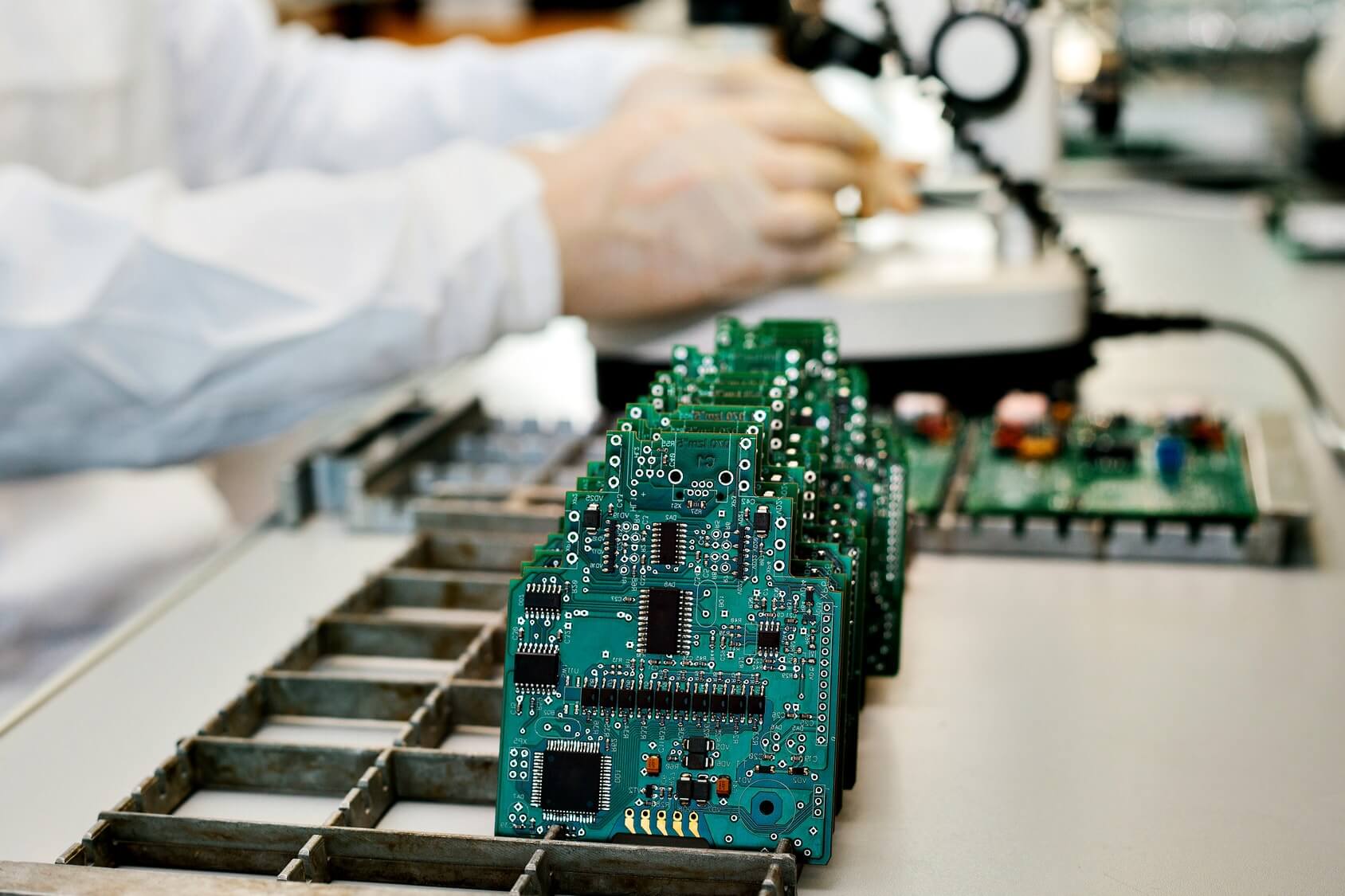

MES Checks Before PCB Assembly Starts
Traceability failure typically begins before placement, as the material type and condition, including moisture-sensitive handling and baking if applicable, and application program must all be approved before being placed onto a PCB assembly line for production. MES supports comparison between the approved build records and the items scanned, set up, or packed before they create a quality control or shipping issue.
With respect to the build of a PCBA, traceability must extend beyond the component lot ID. The more critical component of material traceability is whether the loaded material meets the following requirements: approved BOM line, approved MPN, approved manufacturer, approved AVL, and approved alternate permission. If the SMT program is not tied to the approved revision of the product design, checks later in the traceability process may validate an incorrect setup.
MES Controls for Material, Program, and Shipment Accuracy
| Controlled Item | Matched Fields | MES Match Rule | Control Record | Risk Controlled | Required Document or Label |
|---|---|---|---|---|---|
| Production order launch | BOM revision, drawing revision, build quantity | Build start uses locked order and engineering fields | Revision lock sheet with BOM revision and build quantity | Wrong revision or incomplete build basis | Approved BOM, Gerber, assembly drawing, order line |
| Material issue | BOM line, MPN, lot ID, alternate permission | Line loading matched to approved material fields | Material scan log with source and lot fields | Wrong part, wrong lot, unapproved alternate | BOM, AVL, supplier label |
| Moisture-sensitive component use | moisture sensitivity level (MSL), floor-life time, bake timestamp, dry-pack flag | MSL condition checked before SMT placement | MSL exposure card with floor-life time and bake timestamp | Moisture-sensitive component misuse before reflow | Component label, handling instruction |
| Machine program setup | Product revision, program name, machine station | Selected program tied to approved build revision | Program setup traveler with station ID and revision tag | Wrong program or outdated setup | Engineering package, machine setup file |
| First-off check | Board ID, first-build result, setup-change reason | First unit checked before lot continuation | First-off report with board ID and check result | Repeated setup error | Assembly drawing, first-off result |
| Inspection disposition | Defect type, image ID, disposition action | Failed unit assigned disposition before shipment clearance | Defect disposition sheet with defect code and action code | Open quality issue | Inspection result, defect image ID |
| Test completion | Test type, board ID, pass or fail rule | Tested unit matched to completed result | Test completion sheet with board ID and retest flag | Missing or unresolved test result | Test plan, result sheet |
| Rework closure | NCR ID, repair step, verification result | Repair action linked to verification result | Repair closure sheet with NCR ID and verification result | Unverified repair | NCR, repair action log, retest result |
| Packing check | Label ID, carton quantity, lot ID | Packout matched to approved label and lot fields | Packing checklist with carton label and lot quantity | Mixed lot or wrong label | Packing instruction, shipment lot |
BOM, AVL, and MPN Match Before Loading
It’s important that the scanned component lot is validated against the approved material list for that BOM line item. For programs using an AVL and controlled alternate sources, MES or the loading-control process should verify the BOM line item, MPN, manufacturer, lot ID, and alternate permission before material reaches the production line.
If alternate permission is not obtained before manufacture, the shipping record may confirm that the part was loaded into the shipment but will not confirm that the source was approved. The OEM should provide the BOM, AVL, approved alternate part numbers, and all sourcing restrictions for each part number to ensure compliance before the beginning of any manufacturing operation.
SMT Traceability Starts with Program Revision
Machine setup is another critical point in traceability through the production record where machines can deviate from the original approved manufacturing requirements. The placement program, product revision, and machine station should all correspond to the engineering package before the beginning of lot continuation. The first-off check provides the ability to verify not only whether a machine was set up properly, but also whether the setup belongs to the build record rather than just the machine file name.
This situation has ramifications when a revision occurs, when updates occur in the placement program, and when setups are repeated after a hold. If there is not enough setup detail from the revision-level setup, defects could potentially be found later without demonstrating whether the correct placement program was used from the outset.
MSL Records Before Reflow
Moisture-sensitive components require a separate traceability element from typical loaded material, and the traceability of moisture-sensitive components must be controlled before SMT assembly: loaded lot, MSL level, floor life, bake date, and dry-pack status.
The necessity for MSL records should be determined by the component instructions provided and the build requirements. If the build contains moisture-sensitive components, it must be established whether exposure or bake records are required. If not, then the material-loading record may suffice.

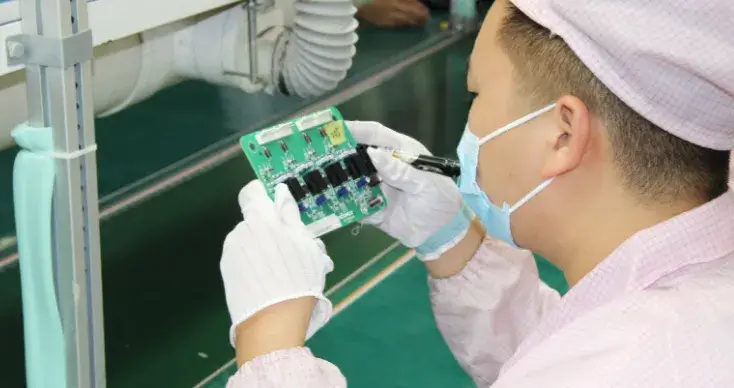

Linking Inspection, Test, and Rework Records
The inspection and test names of AOI, X-Ray, ICT, FCT, and flying probe do not guarantee traceability to the build. For release records, the relationship between the inspection or test results and the specific build is established by maintaining that connection so the results are not mixed together or lost. The required release fields provide traceability to inspection and test records.
The most important fields for inspection and testing during a release check include: board identifier or lot identifier, image identifier, finding, pass/fail status, retest flag, NCR, repair action, and verification result. For basic release checks, the primary focus would be on open findings and shipment clearance; however, high-control builds may have to use trend or station logs captured by MES for additional verification and quality assurance processes used in assembly and test of the specific build.
Quality Signals, Trend Analysis, and Closed-Loop Actions
| Quality Signal | Data Source | Detection Stage | Analysis Basis | Trigger Condition | Documented Record | Release Decision |
|---|---|---|---|---|---|---|
| Solder Paste Geometry | SPI result when used | Paste printing | Trend chart or pad-level variance for volume, height, area, offset | Repeated alarm or deviation from approved setup | SPI trend sheet with affected pads and process adjustment reason | Printer setup check or paste-process adjustment |
| Placement Offset and Polarity | AOI result and placement data | SMT placement and post-reflow inspection | Defect Pareto or image comparison | Recurring offset, missing part, polarity mismatch, rotation issue | AOI image set with defect code and board ID | Placement setup correction |
| Visible Solder Joint Defects | AOI or visual inspection result | Post-reflow or final visual check | Defect category sorting against approved inspection criteria | Repeated bridge, insufficient solder, lifted lead, tombstone, non-wetting | Solder defect report with images and disposition | Rework, acceptance check, or lot hold decision |
| Hidden-Joint X-Ray Findings | X-Ray result required by drawing, package risk, or quality plan | Hidden-joint inspection | Image comparison against approved criteria | Hidden bridge signal, voiding concern, package shift, drawing-defined BGA, QFN, or LGA check | X-Ray image set with package ID and finding code | Hidden-joint disposition or rework decision |
| Workmanship Acceptability | Visual inspection or FAI result required by first-article instruction | Workmanship inspection | Defect category mapped to approved criteria or IPC-A-610 reference when drawing, contract, or first-article instruction requires an A-610 class | Recurring workmanship defect or disputed acceptability | Workmanship criterion sheet with acceptance basis and image ID | Acceptance clarification or corrective action |
| Electrical or Functional Test Failure | ICT, FCT, flying probe, or electrical result | Test station | Failure code grouping by board ID | Repeated failed net, power-up failure, firmware mismatch, functional fail | Failure list with board ID and failed net or function | Retest, debug, or shipment clearance decision |
| Rework and Retest Closure | NCR, repair action, retest result | Rework and verification | Closed-loop match between defect, repair, and verification | Repeat repair, missing verification, unresolved NCR | Closed-loop NCR summary with repair pattern and retest outcome | Rework acceptance or lot shipment decision |
| Process Parameter Deviation | Machine or station log when captured | SMT, inspection, or test setup | Parameter comparison with approved setup range | Setting deviation, abnormal machine alarm, repeated station issue | Parameter log with station setting and adjustment reason | Process adjustment or hold decision |
| Unclosed Quality Issue | Inspection, test, rework, shipment fields | Final quality and shipment check | Open issue list before shipment | Missing result, open disposition, incomplete recheck | Shipment clearance checklist with closed issue IDs and lot ID | Shipment approval or additional verification |
Inspection Images by Board and Finding
Inspection images can have value when associated with a specific board, package, panel, or production lot. For example, images that document a solder joint or a package shift should not remain isolated inspection files; to connect these images to the production history and disposition of the completed assembly, they must have enough identifiers attached to them.
AOI finds visible solder or placement issues on packages. X-Ray will be needed for hidden-joint packages when the drawing, package risk, or quality plan requires it. These methods record the findings; however, the details regarding whether the finding was acceptable remain in the inspection plan.
Test Records with Results and Retest Flags
A test step creates traceability value when the results can be associated with the tested unit or lot. For ICT, FCT, flying probe, and other electrical testing, the value of the test record is determined by the following fields captured on the record: test type, lot, panel, or board level, pass/fail result, failed net or function when captured, and retest status when a failure is repaired.
An unresolved test result should block shipment clearance when the quality plan requires final test closure. If a retest is part of the acceptance path for the product, the trace package should show first-pass status, failure record, repair action, and final closure for the product.
NCR Closure After Repair and Retest
A complete trace chain records both the defect and the closure action. When a nonconformance is repaired, the build history must connect the NCR ID to the repair instruction, verification result, and follow-up inspection or retest result.
A shipment may appear complete without assurance of closure-related criteria; there may still be open issues. For build types that require a formal disposition, the quality plan should specify which fields associated with NCRs, repairs, and retests are required for shipment clearance.
Drawings and Quality Plans Set Acceptance
While the MES will hold inspection records, test results, historical NCR data, and shipment-clearance status, it does not create the acceptance rules. The basis for acceptance is still determined according to the drawing, contract, first-article instruction, test plan, or quality plan.
For assembly workmanship, IPC-A-610 can be used as a reference when indicated by the drawing, contract, or first-article instruction that requires an IPC-A-610 class. However, not all assemblies will automatically be reviewed to the same class under IPC-A-610, nor will the MES be considered a default compliance program.

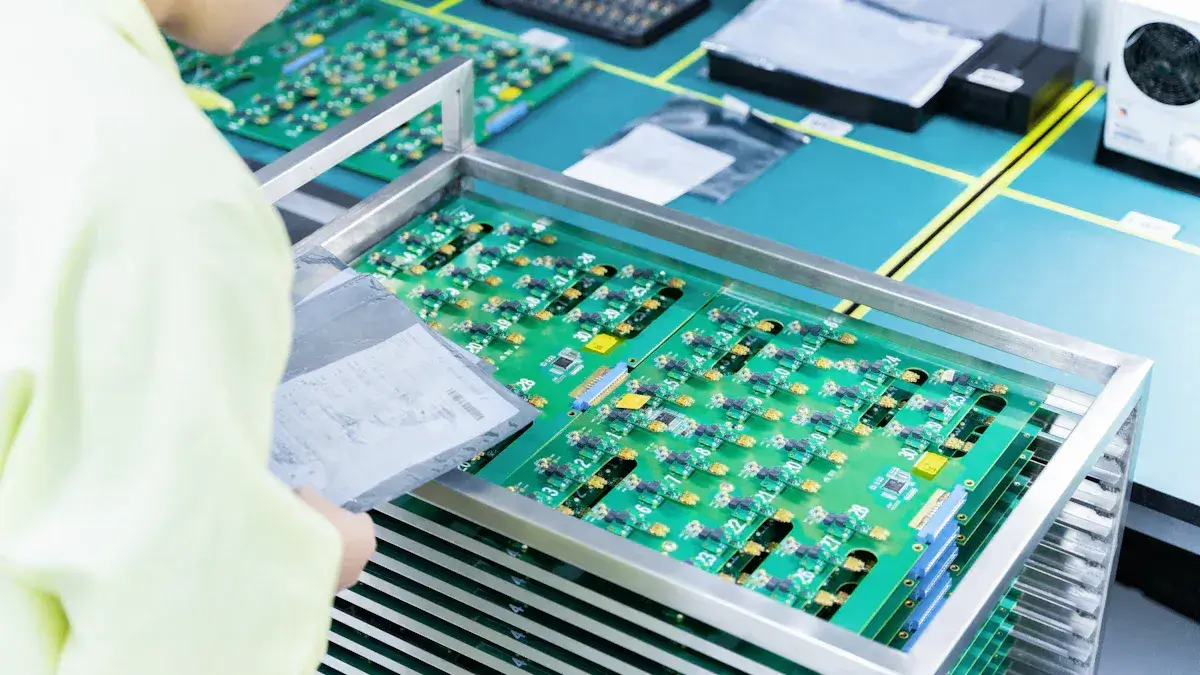

MES Outputs for WIP, Travelers, and Shipment Records
Work in process (WIP) visibility should be defined by the output the OEM receives from the supplier, not by an ambiguous statement that “the factory is connected”. An exported record can include an extracted file, inspection extract, test result sheet, WIP update, or traceability package that can be checked by the OEM outside the factory. The helpful question is not whether an OEM receives direct dashboard access; instead, it is the output format and the level of detail it supports.
The supplier may need to export the production history with additional fields specific to the request. Not every request requires direct MES access or the same level of system configuration.
Production Visibility and Record Outputs
| Visibility Area | Captured Fields | Capture Point | Record Output | Defined In |
|---|---|---|---|---|
| Production stage | Current station, lot quantity, next operation | MES station scan | WIP status email with lot quantity and current station | Order agreement defines lot-level or station-level update |
| Lot movement | Stage entry, stage exit, operator ID or machine ID when captured | SMT, THT, inspection, test, packing stations | Lot traveler extract with stage entry and exit fields | Production setup defines station-level or lot-level history |
| Material usage | MPN, manufacturer, lot ID, loaded quantity | Material issue and line loading | Material usage log with MPN and loaded quantity | Material scan setup includes or excludes lot field capture |
| Exception condition | Material mismatch, missing engineering package, failed inspection, failed test, open NCR | MES alert or quality hold list | Open-issue list with hold reason and action owner | Quality plan lists hold categories and closure fields |
| Inspection data | SPI, AOI, X-Ray, visual, or FAI result, image, defect code | Inspection station | Inspection extract with board ID and finding code | Quality plan includes or excludes each inspection step |
| Test data | Test type, board ID, pass or fail result, measured result when captured | Test station | Test extract with board ID and pass or fail result | Test plan sets board-level result capture or lot-level result capture |
| Shipment readiness | Packing lot, label check, released quantity | Packing and final shipment check | Released shipment extract with carton detail and lot quantity | Packing instruction lists label, carton, and lot fields |
| ERP and MES order alignment | PO, work order, material issue, production lot, shipment fields | Planning and production data link | Order-progress extract with PO, work order, and lot ID | Access setup defines email update, exported sheet, or confirmed system access |
WIP Updates for Station and Quantity Review
WIP updates should answer specific production questions: where the lot is, how many items the lot contains at that operation, and whether the update matches the expected quantity for that build cycle.
WIP emails or progress extracts also provide supply-chain teams with visibility into what the production partner has provided. However, WIP updates should not be confused with the full manufacturing record of the product being produced.
If a lot-level WIP update is required as part of the order agreement, board-level history should not be assumed unless it is included in the agreed records.
Traceability of lots between stations should be clearly defined and separated from a basic lot update.
Traveler and Material Usage Extracts
A lot traveler extract provides visibility into how a build progressed through the manufacturing process, and a material usage log provides insight into which MPNs, manufacturers, lot IDs, and loaded quantities were used. These two items combined are useful to confirm the manufacturing history of the product against the approved BOM, AVL, and build requirements.
One risk in these two tools is the assumption that each field will be included by default. Some builds are only required to provide lot movement, and some builds are required to provide loaded quantity, component lot, operator ID, machine ID, and finding code. The order agreement, quality plan, or test plan will define which fields will be provided in the expected extract.
MES Access vs Exported Records
Direct MES login access is a separate agreement, and it is different from receiving exported outputs.
An assembler may send usable extracts without granting direct access to the MES.
For procurement and quality assurance teams, this is an important distinction to ensure there are no misunderstandings. While production visibility may be sufficient for tracking an order, it is insufficient to prove what was released or to investigate returns without first defining the required records in advance.
Traceability Requirements Change PCB Assembly Quotes
If two PCB assembly quotes differ on board-level traceability, inspection extracts, and retest closure, they are not directly comparable even when unit prices look similar.
A defined traceability requirement does not mean every record is included; required records may be excluded or priced separately as release documents. This affects the setup work, capture effort, release time, and shipping documentation.
Early Estimates Hide Traceability Assumptions
An estimate can be provided when build files are incomplete. However, the estimate will likely include commercial assumptions, and the assumptions made by the assembler may be inaccurate.
For example, if the BOM, Gerber files, centroid, assembly drawing, AVL, test requirements, inspection extract requirements, and packing instructions are incomplete, the assembler will likely make assumptions regarding the build.
The assumptions may ultimately create change requests, such as added serialization requirements after setup, added inspection extract requirements before shipment, and retest closure required after the first failures are checked. Although the estimate is still potentially useful, it cannot yet be directly compared to other quotes.
Comparable Quotes Define MES Outputs
The requirements for PCB assembly quotes should include identification of the required traceability depth, record format, inspection or test extracts, NCR closure requirements, and shipment trace package. In addition, the quote should identify any excluded items when they are not needed.
One way to avoid requesting large amounts of unnecessary records is to first identify the type of records that affects release checks, compliance checks, field investigation, and shipment documentation, and then compare suppliers against the same set of criteria.
Same Unit Price Can Hide Record Coverage
Two suppliers can quote the same assembly and include different records. One quote may only include build and shipment records, while the other quote includes material lot linkage, serialization, test result extraction, NCR closure, and shipment trace packages.
The risk appears later when a field return, quality hold, or shipment question requires a level of records that was never provided. Before you compare unit prices, determine what level of traceability, linked inspection and test records, rework closure, and final output format will be required.
Upload BOM & Gerber
Frequently Asked Questions
MES captures and connects production-floor records in electronics manufacturing. When evaluating an EMS supplier, ask what production history the MES can retrieve, whether it supports lot, panel, or board-level traceability, and what trace package it can provide for release checks.
While MES has an IT component, OEMs should not consider it only a software system. The practical value of MES is on the manufacturing floor: what records are collected, what stations are connected, and whether the supplier can provide adequate production history for release checks.
In PCB assembly, smart manufacturing involves linking and recording production records to facilitate manufacturing control and, in some cases, support the release process. The production records may include material scanning, machine program verification, inspection records, test results, rework closure, and shipment traceability.
MES will only enhance traceability when the production records are connected to defined lot, panel, or board identifiers and are provided in a form that is available for release checks. A label alone will not suffice; the EMS partner will need access to the appropriate material, production station, inspection results, test results, rework results, and shipment records if release confirmation is required.
The data should include the approved build basis, material source, production lot, board or panel identifier, inspection status, test status, rework closure, and shipment lot. The specific records required will depend on the drawing, quality plan, test requests, and depth of traceability.
Yes, as long as the test or inspection station is capturing results at the board serial level. AOI, X-Ray, ICT, and FCT records are sources of record. The acceptance criteria for each method are found in the quality plan for that test or inspection. MES links the method results to the production history.
ERP is responsible for collecting, managing, and distributing records related to purchasing, inventory, and shipping. Equipment signals, such as alarms and other status records, are collected by supervisory control and data acquisition (SCADA) systems or other machine data systems. MES integrates these production records with build history and context, allowing users to see the material, machine station, inspection, testing, and shipping records associated with each production signal.
Product lifecycle management (PLM) manages the lifecycle of a product and the supporting engineering records, including design releases, engineering revisions, and approved files. ERP focuses on the overall product order, inventory control, and shipment forecasting. MES documents the manufacturing events for an OEM to link the released engineering documentation to actual production performance.
OEE is an operational performance metric for measuring equipment or production effectiveness. While some MES platforms may provide data for OEE calculations, that should not be considered a substitute for build-level traceability. An OEM requires traceability of materials, inspection records, test status, and shipping records to complete an accurate release check.
For establishing PCBA traceability, manufacturers require the BOM, Gerber files, centroid data, assembly drawings, AVL, approved alternate components, inspection requirements, testing requirements, traceability depth, and expected record formats. The manufacturer should specify whether traceability will be performed by lot, panel, or board.
Beyond the concept of smart manufacturing, EMS suppliers must be evaluated on their ability to correlate material lot numbers, program setup, inspection and test records, NCR closure, and shipment history of the products produced to the correct build identity; therefore, the supplier must provide exportable records such as extracts, trace packages, and result sheets.
