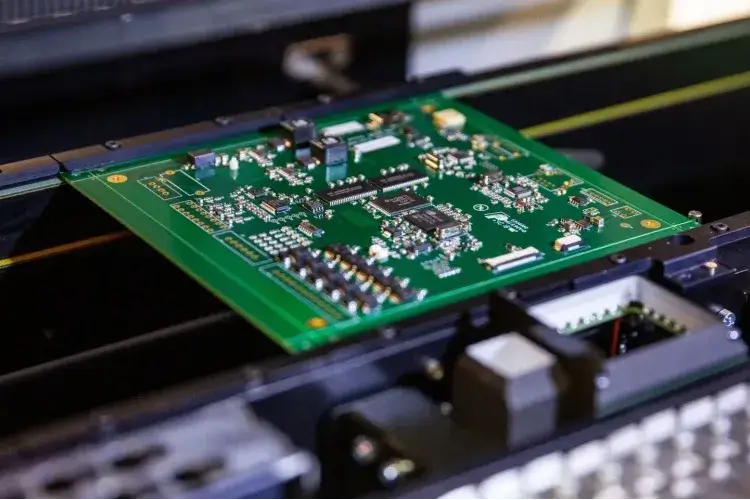

Micro-BGA and 01005 in SMT Assembly
SMT, BGA, Micro-BGA, and 01005 are often discussed together during the early sourcing; however, they do not represent the same thing. SMT is the assembly process. BGA and Micro-BGA are package types that are added to a PCB using SMT equipment. 01005 refers to a micro passive package size used for very small resistors and capacitors. Treating them as the same type of assembly can result in asking the wrong assembly question: it is not only whether a factory can use SMT, but whether the factory supports the package size, solder paste deposit, placement data, and inspection method appropriate for the components on the board.

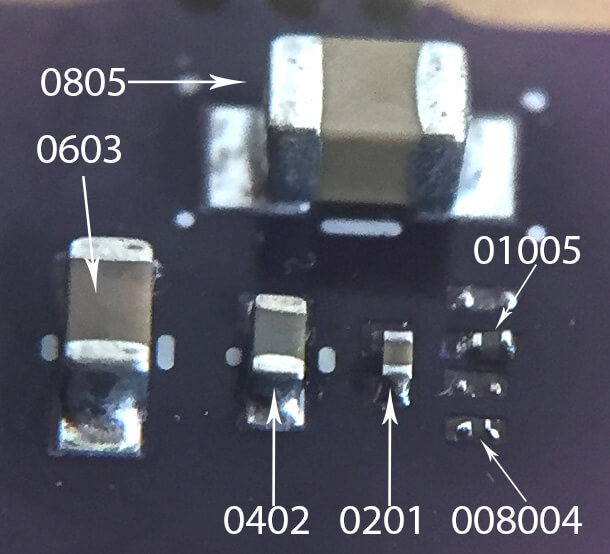

01005 as a Micro Passive Package Size
When a 01005 component is used in a PCB assembly, the assembly risk increases due to its small size and the reduced margin for pad imbalance, solder paste deposit variation, placement offset, and nearby component crowding. In addition, it is important to have the package datasheet and land-pattern data when evaluating the assembly process, as the same nominal package size can still require different handling based on termination style, polarity if applicable, reel condition, feeder setup, and board density. The practical question with respect to procurement is whether the BOM, Gerber, CPL, and assembly drawing provide enough data to determine the placement and soldering risk prior to commencing the build.

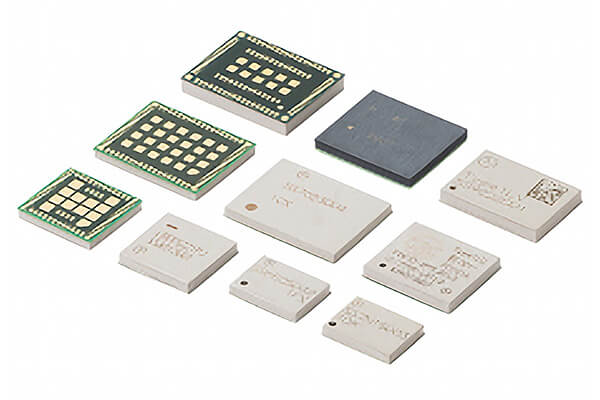

Micro-BGA as a Hidden-Joint Package
Micro-BGA PCB assembly changes the method of inspection because the solder joints are located under the package body. Visible inspection and automated optical inspection (AOI) alone cannot positively identify these hidden solder interfaces. The engineering checks must connect the ball map, pin-1 orientation, placement side, package outline, solder mask clearance, and X-ray location before forming any production evidence. Pin-1 orientation means the package mark or corner used to align the first pin or ball with the board data. If the Micro-BGA is closer to a broader BGA requirement, it may be better suited for a BGA assembly service. Issues related to routing, via-in-pad, and stackup should be reviewed through PCB design or HDI checks rather than SMT assembly capability evaluation.
File Fields That Change Micro-Package Assembly Risk
Both Micro-BGAs and 01005 components may initially appear to be ready for price estimation, yet they may not provide sufficient detail about the assembly risk. The absence of the package code, ball map, CPL data, or assembly callouts could alter the assumed placement orientation, placement side, solder mask interpretation, X-ray location, and test access.
CPL is the centroid or pick-and-place file, which contains component coordinates, rotation, placement side, and reference designator data in accordance with the BOM and drawing. ODB++ is a PCB-related format containing board-layer and assembly data in one file set.
When "file clarification" is mentioned, it refers to any instance in which one or more files do not meet the expectations of the associated drawing, dimensional characteristics, or other items needed for price estimate confirmation.
Package Identity Fields for Orientation and X-Ray Location
For Micro-BGA packages, the BOM must contain more than just the part number. The manufacturer part number (MPN), package code, body size, pitch, and ball map additionally enable correct assembly against the footprint and pin-1 orientation; these items also support inspection positioning.
If these fields are not included, even a hidden-joint package may still be mountable, yet the X-ray location and post-placement check remain unclear.
For 01005 passives, the package identity affects feeder setup, placement vision, pad match, polarity if used, and solder paste expectations. When the board surface is dense or when components are near leadless packages, thermal pads, or test-point-dependent nets, a simple passive description is not enough.
CPL, Gerber, ODB++, and Drawing Data for Placement
CPL, Gerber, ODB++, and assembly drawing files should match for coordinates, rotation, placement side, solder mask opening, land pattern, and local fiducial data. If disparities exist between these files, from a business standpoint, quotes may take longer to receive. From an engineering standpoint, the PCB assembly manufacturer cannot judge whether the assembly risk originates from the component itself, erroneous pad geometry, placement data, or the assembly inspection plan.
Micro-BGA and 01005 Assembly File Requirements
| Assembly Object | BOM and Package Fields | Assembly Drawing Callout | Gerber, ODB++, and CPL Fields | Risk If Missing |
|---|---|---|---|---|
| Micro-BGA package | MPN; package code; ball map | Pin-1 mark; package outline; placement side | Land pattern; solder mask; XY coordinate; rotation | Ball misalignment; hidden bridge; delayed X-ray decision |
| 01005 passive | MPN; package size; polarity if used | Placement side; component orientation | Pad size; solder mask opening; centroid coordinate | Tombstoning; missing part; insufficient solder paste |
| Fine-pitch BGA or CSP | MPN; pitch; package body size | Keepout; polarity; package outline | Pad array; fiducial location; mask clearance | Offset short; open joint; stencil mismatch |
| Leadless package near micro zone | MPN; package type; thermal pad data | Orientation; thermal pad callout | Pad geometry; solder paste aperture layer | Floating package; solder starvation; bridge under body |
| MSL-sensitive SMD | MPN; MSL label; floor-life data | Assembly side; package location | Placement data tied to lot traceability | Moisture risk; delayed bake decision |
| Hidden-joint component | Package family; ball or pad array | Inspection callout when specified | X-ray location map; package coordinate | Hidden defect not visible by AOI |
| Test-point-dependent assembly | Net name; test pad callout | Probe side; fixture keepout | Test-point map; fixture data when available | ICT or FCT gap; uncovered-net list or test-coverage note needed |
The use of a complete package of Micro-BGA or 01005 assembly-related files will not remove every risk associated with the Micro-BGA or 01005 design; however, these files support the transition from draft assembly design to pricing or cost estimation for PCB assembly manufacturers. In cases where the CPL does not identify pin-1 orientation, placement side, or correct coordinates, the package may be identified; however, the placement and X-ray assumptions remain provisional. Those gaps must be closed before the board can be said to be comparable with respect to pricing.

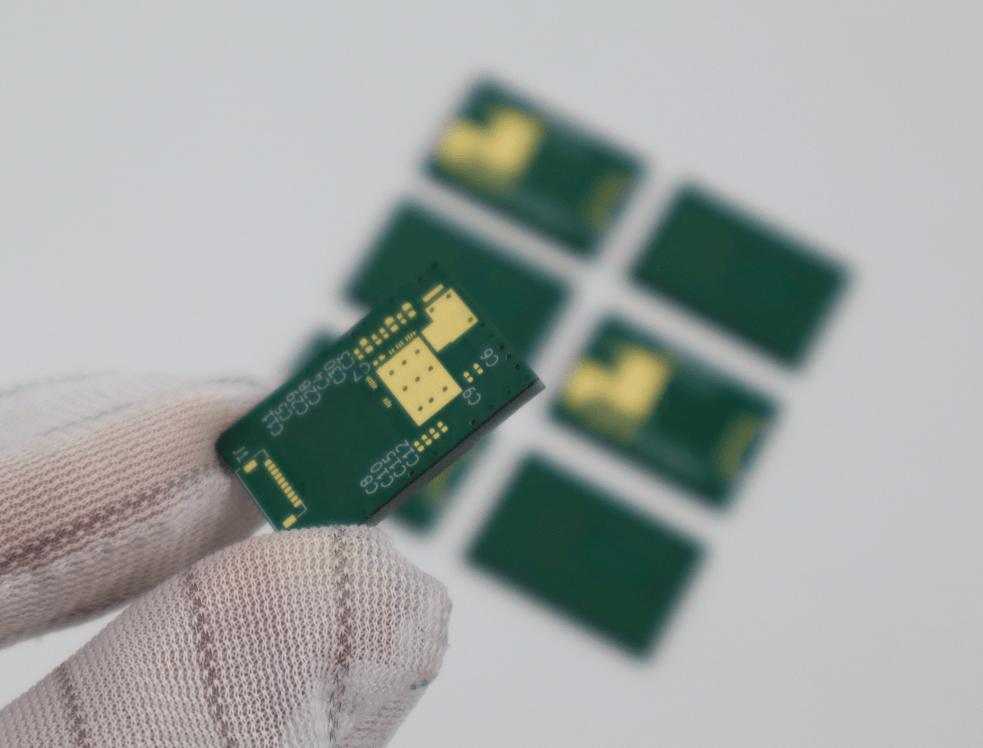

01005 Component Size, Pad Geometry, and Placement Window
The size, geometry, and placement of a 01005 component have the potential to become a manufacturing-process risk rather than simply an assembly drawing issue. It is important that, while the assembly line can place 01005 components, the assessment should include verifying other factors that can contribute to successful placement on the actual board layout, including sufficient distance between the component and adjacent components, as well as adequate placement windows for the component assembly process.
01005 Pad Size and Tombstoning Risk
Tombstoning, where one end of the component lifts during reflow due to soldering imbalance, and defects such as missing components, skewed orientation, and solder starvation can be associated with solder-paste imbalance. The imbalance can occur if the solder paste volumes applied to the two pads under the 01005 passive component are not similar. During the reflow process, the component may be pulled toward the higher-volume side due to the wetting force created by the solder.
For OEM production, the record should be more than a general statement that 01005 components can be placed. The record should show that Gerber or ODB++ data and CPL files match the package data for the 01005 component with respect to pad size, mask opening, orientation, and placement side. If any of these fields are unclear, it may be necessary to clarify the file set prior to the first build rather than allowing it to be released directly for production.
Placement Spacing Around Dense Passive Zones
The majority of 01005 components are located in dense passive cluster areas close to either a Micro-BGA or a leadless device package. Therefore, local fiducials, feeder loading, and vision recognition for an assembly machine become more critical when placing 01005 components into the cluster area. In addition, placement windows that fit an open board area may not work well for a cluster of parts if tool access, nozzle clearance, and adjacent component heights limit access.
With a dense passive device cluster, it is possible to have different file types, but it is more probable that there is a mismatch between the files. If the Gerber or ODB++ file shows pad geometry that does not match what is shown in the 01005 package data, the issue would move directly into reflow behavior. Soldering defects such as tombstoning, skew, or starved solder joints may end up being called soldering defects even though the true reason for the defect was an unresolved pad and placement mismatch.

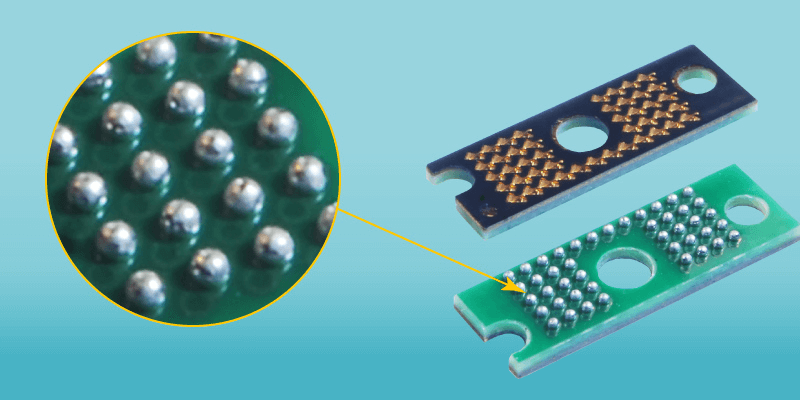

Micro-BGA Package Pitch, Ball Map, and Placement Records
Before the reflow stage, a Micro-BGA build can fail if the Micro-BGA package and placement records are treated like a generic BGA. The real assembly question is not whether the assembler can put the BGA package onto the board, but whether the ball map, pitch, pin-1 orientation, package outline, placement side, and inspection locations are all aligned to the same build condition.
Ball Map and Pin-1 Orientation
For a Micro-BGA build record to be useful, the ball map needs to be treated as assembly data and not just another reference source. The ball map helps confirm how pin-1 marks, pad array, package outline, and X-ray location should line up with the board data. If the bill of materials defines the package by part number but there is no visible definition of pin-1 or placement side on the drawing, the assembler may still have a clear understanding of the part number, but board-level orientation evidence can remain incomplete.
This is especially true when a Micro-BGA is located near other leadless packages or fine-pitch packages. Even a minor rotation error, incomplete polarity callout, or mismatch between package outlines can transfer the risk from normal SMT placement to hidden-joint inspection or possible rework. A matched set of BOM, package datasheet, assembly drawing, Gerber or ODB++ data, and CPL is the best practice to eliminate confusion.
Vision Alignment and Post-Placement Offset
The vision alignment process for Micro-BGA placement relies on package outline, body size, recognition limitations, and local fiducial conditions. The setup must allow the machine vision system to recognize the Micro-BGA package, but if the board data provides no definition of rotation, expected coordinate, or placement side, then post-placement inspection may show an offset between the package body and board data without showing how or why the offset occurred.
When working with sourcing and engineering personnel, the question will not be "Can this factory place a Micro-BGA?", but rather "What record will confirm that this Micro-BGA was placed against the correct package data?" The inspection may show some level of conformity of the package body position with post-placement AOI, but may require X-ray or automated X-ray inspection (AXI) for verification of the solder joint when it is hidden under the package body. If the intent of the inspection is to evaluate generic BGA assembly, the requirement should move to BGA assembly evaluation. If the concern is related to routing, via-in-pad, or stackup beneath the Micro-BGA, it belongs in PCB design or HDI checks rather than SMT assembly capability evaluation.
Stencil and Solder Paste Controls for Micro Packages
Solder paste volume measurement is important during setup for micro-package production and, along with aperture design, represents one of the primary factors contributing to open joints, bridges, or solder starvation during production. Paste deposit imbalance can lead to failure of very small components, such as 01005. Micro-BGA component placement can hide latent solder problems created by conflicting pad array data, aperture definition, and solder mask clearance specifications. It is useful to verify that stencil printing is available; however, verifying that the stencil file, solder paste layer, solder paste inspection (SPI) data, and design documentation all correlate to a common assembly condition is more important.
SPI Paste Height, Area, and Volume
The SPI process verifies solder paste height, area, and volume on the PCB before component placement and reflow. SPI results may help differentiate a placement issue from a paste deposit issue. If an 01005 component experiences solder joint failures, including tombstoning or solder starvation, SPI results should be documented as part of the inspection record rather than viewed as a standard inspection step.
For Micro-BGA components, SPI does not confirm the hidden solder joint after the component has been reflowed. Rather, SPI confirms that the solder paste was applied to the PCB in terms of volume and pattern prior to reflow. This can be useful when X-ray or AXI later discovers a hidden solder defect such as an open ball, bridge, or head-in-pillow solder joint defect. If there is no solder paste record, then the source may remain split between stencil design, pad geometry, package condition, and reflow behavior.

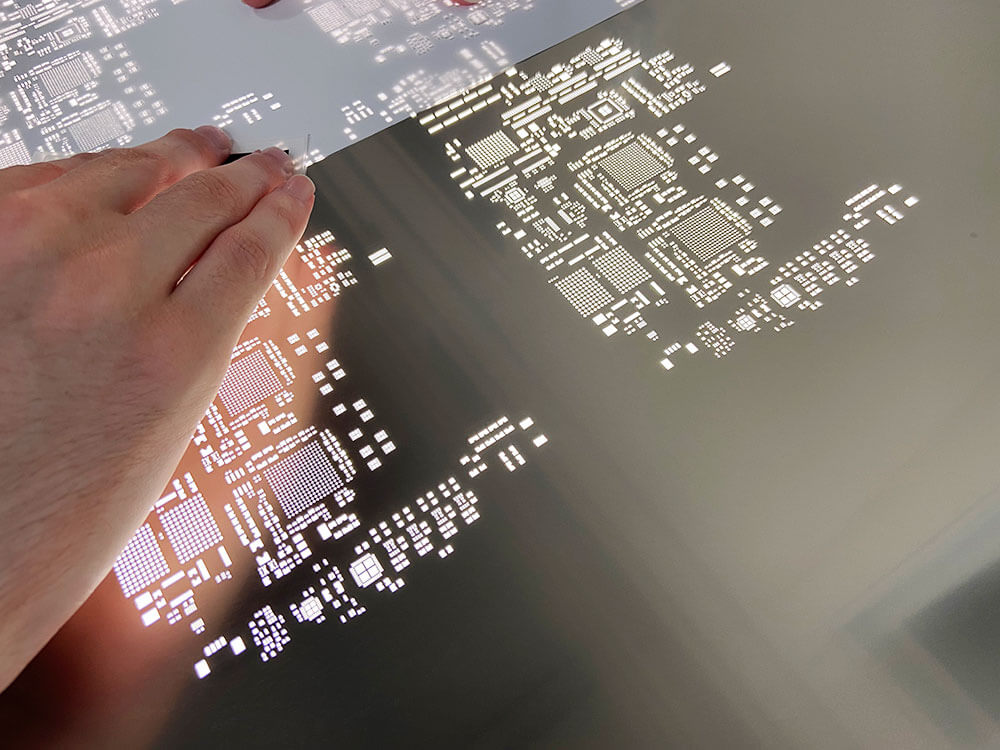

Aperture Shape, Solder Paste Layer, and Area Ratio
Stencil aperture decisions are a consequence of both the board layout and the condition of the package and should not be made from a generic SMT standard. In addition to aperture shape and solder paste layer, the area ratio, solder mask opening, local fiducials, and component density can significantly affect consistent paste release in the micro-placement zone. IPC-7525C may be used as a reference for stencil aperture guidance only when a stencil design check applies. IPC-7095E can also serve as a reference when BGA or fine-pitch BGA implementation is part of the assembly requirement. Both IPC standards should not be used in place of the package datasheet, the released drawing, or board-level file comparison.
Paste Printing and Micro-Placement Controls
| Assembly Check Item | Package Condition | Drawing Field | Setup Record / Check Output | Assembly Risk | When This Check Applies |
|---|---|---|---|---|---|
| 01005 solder paste deposit | 0.4 mm x 0.2 mm passive class | Pad size; mask opening; spacing | SPI paste height, area, and volume report | Tombstoning; insufficient solder; bridge | When 01005 solder paste volume needs to be validated before placement |
| Micro-BGA solder paste release | Fine-pitch ball array | Pad array; mask clearance; solder paste layer | Stencil aperture data; SPI report | Open ball; head-in-pillow; hidden bridge | When BGA or fine-pitch BGA implementation check applies |
| Stencil aperture | Micro pad or dense component zone | Aperture shape; solder paste layer; area ratio target | Stencil file; stencil supplier data | Uneven solder volume; solder balling | When stencil aperture guidance is required for the micro-package zone |
| 01005 pad geometry | Dense passive placement | Pad-to-pad spacing; copper balance | Gerber and ODB++ comparison; DFM finding | Component skew; tombstoning | When released land-pattern data or package datasheet data is needed for comparison |
| Local fiducial | Micro-placement zone | Fiducial count; fiducial clearance | Vision setup data; placement file | Offset placement; rotation error | When local fiducials are defined on the approved drawing |
| Vision alignment | Micro-BGA, 01005, or CSP | Package outline; polarity; body size | Pick-and-place vision data; post-place AOI image | Misorientation; offset short | When package recognition limits affect placement setup |
| Nozzle and feeder setup | 01005 and small passive reels | Reel package; feeder lane; component height | Feeder setup sheet with feeder lane and reel package | Missing part; flipped component; feed error | When micro passive loading is part of the assembly setup |
| Post-placement offset check | Dense SMT before reflow | Placement coordinate; rotation | AOI image; placement offset data | Short before reflow; rework after soldering | When offset inspection is included for the dense SMT area |
The useful check for procurement is to ensure that the returned SPI report, stencil file, solder paste layer, Gerber or ODB++ data, and CPL refer to the same board revision. If the returned SPI report belongs to a different file revision than the stencil aperture or pad data, then bridge and open-joint findings cannot easily be attributed to stencil design, component data, or assembly setup.
Visible and Hidden Solder Joint Inspection for Micro Packages
The inspection risks associated with micro packages can be compounded when a sourcing team considers SPI, AOI, X-ray, AXI, micro-CT, ICT, and FCT as interchangeable inspection checks. This is incorrect. The method of inspection used is defined by the inspection technique and what data is being provided. Different methods of inspection provide different information, from checking whether the solder paste was printed correctly, to checking whether the placement and visible solder joints are acceptable, to imaging hidden solder joints, to determining whether electrical and functional requirements can be tested after assembly. For Micro-BGA and 01005 assemblies, the inspection or check plan should start with what needs to be seen, not what inspection equipment is available.
SPI Before Reflow and AOI After Placement
SPI checks solder paste height, area, volume, and offset before the solder joint has been formed. SPI for micro packages is particularly significant when 01005 tombstoning, solder starvation, or unequal paste volume issues exist. However, SPI inspection cannot confirm the final hidden solder joint in a Micro-BGA package, but it can provide evidence of the paste condition before entering the reflow oven.
AOI inspections show visible component placement and visible solder-joint condition. AOI inspections can identify components that have been missed or placed incorrectly, including skew, polarity errors, offsets, lifted leads, and bridges on visible areas. In addition, AOI inspection reports for 01005 zones may assist in correlating component placement offsets to pad geometry or paste behavior. In the case of hidden-joint Micro-BGA assemblies, although AOI inspections are valuable around the body of the Micro-BGA and placement position, AOI cannot be a substitute for X-ray or AXI for solder joints located underneath the Micro-BGA assembly.
X-Ray and AXI for Hidden-Joint Packages
Micro-BGA, BGA, LGA, and similar hidden-joint packages require imaging when the solder interface is not visible. X-ray can help determine ball alignment, bridges, open conditions, and void patterns when the inspection requirement exists. If repeated hidden-joint package inspection requires a programmed inspection approach, then AXI may be used. IPC-7095E may be used for BGA implementation and inspection when inspecting a BGA or fine-pitch BGA; it should not be seen as a universal voiding limit or the default basis for acceptance of a BGA.
Micro-CT has a limited use. It may give a detailed view of an internal joint to aid failure analysis of high-risk parts, but it cannot provide proof of quality across an entire Micro-BGA lot by itself.
If a manufacturer requires regular confirmation of hidden-joint quality, then X-ray or AXI is the better inspection tool.
ICT and FCT Are Not Hidden-Joint Inspection
In-circuit test (ICT) and functional test (FCT) do not answer the same question that X-ray imaging does. While X-ray is used to inspect a solder joint through imaging, ICT relies upon test points, fixture access, and released net-level requirements. In contrast, FCT relies on proper firmware operation, functional limits, and a released test protocol. These tests help confirm that the assembly is electrically or functionally operable, but they cannot confirm that a solder joint exists underneath the BGA package.
Finally, when a quote states that a product has been "tested," it does not provide enough test method detail. A board may successfully pass a functional test and still require X-ray inspection if the assembly risk warrants assessment of hidden solder joints. The need for paste inspection, visible-joint inspection, hidden-joint imaging, electrical test, functional test, or a combination of these checks must be defined before getting comparable quotes.
Inspection Triggers for Micro Packages
| Inspection Tool | Trigger Package or Risk | Object Seen | Setup Data or Test Requirement | Inspection Record | Inspection or Test Limit Note | Acceptance or Check Basis |
|---|---|---|---|---|---|---|
| 3D SPI | 01005, Micro-BGA, dense solder paste deposits | Paste height; area; volume; offset | Stencil file; solder paste layer; pad data | SPI report; paste image | Paste anomaly recorded before reflow | When SPI is required |
| Post-placement AOI | 01005, polarity-sensitive SMD, dense SMT zone | Missing; skew; polarity; offset | CPL; BOM; polarity mark | AOI image; first article record | Unrecognized package noted for file clarification | Assembly drawing when placement attributes are specified |
| 3D AOI after reflow | 01005 solder joint and visible SMT joint | Tombstone; bridge; lifted lead; solder shape | AOI setup data; BOM; placement side | AOI report; defect image | Hidden joints require X-ray decision | IPC-A-610J when PCBA acceptability applies |
| X-ray | Micro-BGA, BGA, LGA, hidden solder joint | Ball alignment; bridge; void pattern | Package coordinate; inspection location | X-ray image; inspection report | Non-imaged joints noted as inspection limits | IPC-7095E when BGA inspection applies |
| AXI | Repeat hidden-joint inspection need | Ball array pattern; hidden bridge trend | Package map; inspection recipe | AXI report; defect image | Inspection limits recorded in the requirement | Released inspection requirement when AXI is required |
| Micro-CT | Failure analysis or high-risk hidden joint | Internal joint geometry; crack or void evidence | Sample ID; failure symptom; package data | Micro-CT image; FA report | Sample-based result, not lot-wide by itself | FA protocol when micro-CT is assigned |
| First Article Inspection | First build, revision change, new package family | Placement match; polarity; component identity | BOM; CPL; assembly drawing | FAI report; marked image | Unmatched item noted for file clarification | Approved drawing and BOM-defined data |
| ICT | Test-point-dependent assembly | Electrical node access; fixture contact | Test-point map; fixture file | ICT report; uncovered-net list | Uncovered nets limited by test access and fixture design | Fixture-released requirement when ICT applies |
| FCT | Firmware or functional load requirement | Functional pass or fail against protocol | Firmware; test protocol; limits | FCT report; test log | FCT result not recorded against unreleased limits | Test-protocol-defined requirement when FCT applies |
A comparison of test statements should only be made when there is an identifiable object that the tests cover. For example, while one company may offer a quotation that states it includes X-ray or AXI for inspection of Micro-BGAs, and another company may provide a quotation that states only AOI or functional testing, each may state that the assembly has been "tested," but they will not cover the same risk. Thus, the inspection coverage needs to be separated into four categories: paste records; visible-joint records; hidden-joint imaging; released electrical or functional test records.
Request a Quote
You may share your BOM, Gerber, CPL, assembly drawing, and inspection requirements with SUGA, where we can review the package-related assembly risk prior to comparing prices.
Upload BOM & Gerber
Reflow, MSL, and Thermal Handling Before SMT Build
Thermal risks can be identified before a PCB arrives at a reflow oven. A Micro-BGA that is properly placed can still exhibit a head-in-pillow solder defect, where the ball and paste do not fully coalesce during reflow, or an open ball condition if there are thermal mismatches between package handling, solder alloy, ball finish, floor life, or the local thermal mass of surrounding components prior to reflow. Similarly, a 01005 passive may also experience uneven wetting due to the localized imbalance caused by pad finish, solder paste behavior, and the mass of adjacent components, and all of these issues should be addressed prior to profiling, rather than reacting to flaws caused by thermal mismatch after defects occur.
MSL Level, Floor Life, and Bake Records
When considering MSL levels, floor life, and bake history on moisture-sensitive surface-mount device (SMD) components, select handling procedures based on the specific part number, package label, shipping condition, and the time the bag was first opened. MSL indicates a component's moisture sensitivity level, and J-STD-020F may apply to parts that meet the criteria for moisture and reflow sensitivity classification. J-STD-033D may apply to parts that require floor-life handling, dry-pack handling, or bake handling. These standards should not be interpreted as all-encompassing bake instructions for every SMD component; rather, determine whether the BOM and kit intake documentation provide enough data to identify MSL risk and whether the floor-life status is still valid before SMT setup.
MSL-sensitive Micro-BGA components require handling based on the part number, MSL label, and floor-life condition because moisture release during reflow can affect component integrity and solder-joint formation. When a file set includes all of the pertinent MSL-label data, dry-pack conditions, and floor-life data, an assembler has sufficient data to determine whether they will be able to proceed with the lot, if bake records are needed, or if clarification is required before they build the lot. Without these records in the lot file, there may be risks that show up later as soldering or inspection-related issues despite the fact that the original root cause occurred during material handling.

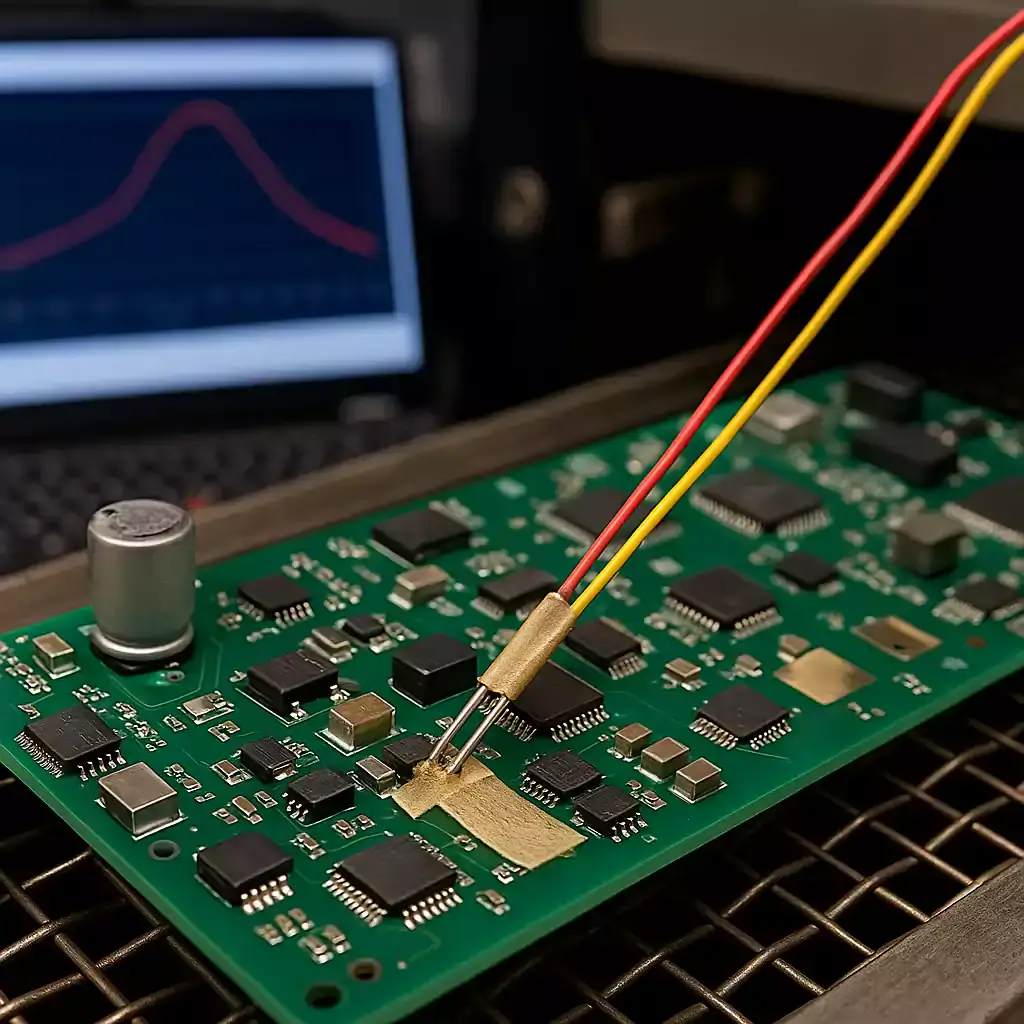

Reflow Profile and Mixed Thermal Mass
Reflow profiles are connected to the components' datasheets, the solder alloy, the board layout, and assembly conditions. IPC-7530B may be used as guidance when developing reflow profiles, but it should never be considered a universal recipe. The same oven settings may provide very different results when a Micro-BGA is located next to a component with a large thermal mass; likewise, the same settings will behave differently for 01005 passives positioned in crowded locations or during a second SMT pass.
Mixed thermal mass may drastically change the local soldering result. For example, a component with a large mass located close to a micro-package area may slow heating in that area, whereas smaller components may respond faster. If nitrogen reflow is called for due to oxidation risk or other solderability risks associated with a given assembly, that requirement should emerge as a confirmed assembly requirement and not as a generic statement.
Reflow, MSL, and Thermal Handling
| Thermal Condition | Component or Shipping Fields | Thermal Record | Biggest Risk If Not Done Correctly | When This Check Should Be Performed | Pre-SMT Check |
|---|---|---|---|---|---|
| MSL-sensitive SMD | MSL level; floor-life label; dry-pack condition | MSL log; bake records when used | Moisture damage due to popcorn effect | J-STD-020F when moisture/reflow sensitivity classification applies | Component specification, MPN, and MSL data matched to the BOM |
| Micro-BGA reflow | Package datasheet; solder alloy; ball finish | Package reflow profile record | Head-in-pillow; open balls; void trend | IPC-7530B when developing the reflow profile | Reflow profile tied to package data |
| 01005 passive package | Package termination; pad finish; solder paste type | SPI report; AOI image after reflow | Tombstones; solder starvation; skew | J-STD-001J when applying soldering process requirements | Pad and solder paste data checked before build |
| Mixed thermal mass; large component located close to micro package | adjacent component mass; copper area; component height | Reflow profile; thermocouple location | Uneven wetting; local overheating | When component mass imbalance is known from the assembly design or BOM | Density of small components relative to larger components checked |
| Double-sided SMT | First-side component mass; second-side reflow exposure | Assembly record; second reflow profile | Component shift; repeated heat exposure | Confirmation that second-side SMT is needed | Component mounting and retention checked before build |
| Nitrogen reflow | Package risk; solderability need; solder paste system used during oven operation | Oven atmosphere record when selected | Poor wetting; oxidation-related failure | When nitrogen reference is added to the customer order or quality plan | Nitrogen requirement documented prior to SMT setup |
| Bake prior to assembly | MSL status; open-bag time; dry-pack condition | Bake log; lot label | Moisture released during reflow | J-STD-033D for dry-pack handling and floor-life handling | MSL status checked during kit intake |
When thermal data related to a specific assembly is incomplete, decisions about the assignment of open balls, head-in-pillow, and wetting issues, such as 01005 wetting, should not be made based solely on parts placement. When there is no MSL status, no floor-life or dry-pack data, an unmatched solder alloy, or second-side reflow exposure, these items can drastically change the assessment of the root cause of soldering and inspection issues associated with the final assembly. Your pricing and production release decision should reflect the open thermal assumptions for the completed assembly and not treat the results of reflow as mere parts placement defects.
Rework Limits for Micro-BGA and 01005 Assemblies
Micro-BGA and 01005 assemblies should not be automatically considered eligible for rework. The factors that can impact the decision of whether to rework a Micro-BGA or 01005 assembly include board condition, pad integrity, solder mask condition, underfill status, component density around the area, and previous thermal exposure. Even though a Micro-BGA or 01005 component may appear physically removable, if the assembly site has lifted pads, delamination damage, underfill risk, or limited access to tooling, then the component should not be considered a suitable candidate for controlled rework.
Before-Rework Records and Approval
Prior to the decision to remove or replace a Micro-BGA assembly, the assembly records should document the location of the package on the board, X-ray results of the package, datasheet for the package, as well as the visual condition of the board. Further, to properly redress the assembly site, the pad condition, solder mask condition, and the ball pattern at the site of removal must all be clearly visible. IPC-7711/21D will provide guidance when rework or repair procedures are to be performed on hidden-joint packages; the references contained in the IPC-7711/21D documentation do not provide a default option for rework for every hidden-joint package.
When determining whether an 01005 assembly is correctable, there are additional points to consider for rework. In addition to the above-referenced factors, an AOI image should reflect a clear depiction of polarity, pad condition, adjacent component spacing, and thermal sensitivity. Further, if the component is densely clustered with other components, the likelihood of affecting adjacent components is significantly greater than when attempting to correct an isolated 01005 component.
When Rework Is Not Recommended
There are cases where it is not appropriate to perform rework due to the removal of underfill, or because the package has been affected by multiple heat exposures in the package area. Additionally, if the parts are too close to one another, the ability to adequately heat them using controlled methods is compromised. Furthermore, dense micro-package zones may be displaced when local rework is performed, especially when a Micro-BGA part is next to taller or heat-sensitive components. Therefore, the correct course of action in these circumstances may necessitate conducting a material or reliability evaluation instead of simply changing out a failed part.
For procurement, in order to effectively manage expectations with an assembler regarding the cost of a rework attempt, the allowed action after performing the rework and required steps for approval must first be clearly defined. Without that defined framework, the assumption that all Micro-BGA and 01005 reworks may be made available creates a misperception that reliability was not compromised.
Rework Acceptance for Production Assemblies
Questions about reballing and hand soldering are typically initiated through repair channels, but OEM PCBA production assembly excludes phones, CPUs, laptops, and repair-station work. For production assemblies, the better question should not be "How can I do this by hand?" The focus should instead be "Are the board site, thermal history, and component condition valid for a controlled rework process?"
Rework Limits for Micro-BGA and 01005
| Rework Scenario | Before-Rework Record | Permitted Rework | Not Recommended When | Approval or Post-Rework Record |
|---|---|---|---|---|
| Micro-BGA removal and replacement | X-ray image; package datasheet; board condition | Controlled removal; site preparation; replacement | Pad damage; underfill; repeated thermal exposure | Written approval; rework record; post-rework X-ray |
| Micro-BGA site redressing | Pad condition; solder mask condition; ball pattern | Site cleaning; solder level correction | Lifted pad; mask damage; laminate damage | IPC-7711/21D when rework or repair applies |
| 01005 correction | AOI image; polarity; pad condition | Micro hot-air or soldering correction | Dense cluster blocks tool access; adjacent part shift risk | Rework image; AOI result after correction |
| Underfilled micro package | Underfill material; package location; written requirement | Engineering evaluation before rework | Underfill removal risks pad or laminate damage | Written approval before rework action |
| Dense component cluster | Adjacent part height; spacing; thermal sensitivity | Local shield; limited heat exposure | Neighboring component movement risk | Rework record; inspection image |
| Repeat thermal exposure | Reflow history; prior rework count; package sensitivity | Engineering evaluation before further rework | Reliability downgrade risk; unknown joint history | Rework limit record; material evaluation record |
Before rework, the record should show whether each rework action is supported by package, board, thermal, and inspection data. If rework is determined to be viable based on the collected records, it should be supported by written approval and a post-rework inspection record.
Micro-BGA removal and replacement should use an X-ray image, package datasheet, and board condition before rework. Based on those evaluated records, a controlled removal and replacement method can be established while maintaining the board site for replacement. If the required records are not collected, the rework decision should remain unconfirmed until the missing records are complete.
The removal of underfill from a Micro-BGA may potentially damage the pads or laminate. Engineering evaluation prior to rework is essential. Written approval from the customer is required before any removal of the underfill material can occur.
If there is any risk of movement of a neighboring component during local rework, precautions are needed to protect the adjacent component from being damaged. For example, to reduce the risk of adjacent component shift during rework, one or more local heat shields may be used to minimize heat exposure and redirect heat to the corresponding pad.
If multiple past reflows have caused significant package degradation, an engineering evaluation of the component and the assembly is needed to determine if further rework is viable. If, after reviewing the previous thermal history and the condition of the package, it is determined that either the package has been downgraded or has been damaged due to previous thermal events, there will not be assurance of reliable joint integrity on any rework completed without established historical data for reliability.
Rework limits for both Micro-BGA and 01005 parts must be completed before replacing failed components. After the rework limit record and material evaluation record are established, review the original board revision documentation, defect photograph, and underfill condition documentation to determine whether the prior evaluations and approval requirements permit rework to proceed.
Micro-Package PCBA Files for Comparable Pricing
For comparable quotes for Micro-BGA or 01005 PCBAs, it must be clear which work details are included in both quotations. When matched file sets, paste records, imaging of hidden joints, MSL or floor-life handling, test-access limitations, and rework records are included on the same basis, prices are close enough to make a fair comparison; neither quote should be treated as identical work if it does not include the same major obligations.
Missing Files That Keep Pricing Provisional
If the source of your estimate is missing one or more of the critical files needed to make assembly assumptions, your quote will remain provisional until you receive those files. A Micro-BGA part without a valid ball map or inspection location will require a different inspection basis, while a 01005 cluster without clear pad geometry, placement side, or stencil/paste assumptions will require clarification before placement risk can be priced on a confirmed basis.
A price that is provisional can be used for early planning, but will not be satisfactory as a final determination for supplier-to-supplier comparison. Definitive resolution of unclarified items is necessary prior to comparing suppliers. Unclarified items do not mean that the project cannot be built; unclarified items mean that the project is not confirmed as to placement, inspection, or thermal handling.
Comparable Pricing When Work Details Match
Quotes become more readily comparable when the work obligations are matched and not only because both quotations have the same components. Many suppliers may provide an SPI report, X-ray images, MSL or floor-life handling, uncovered-net notes, and post-rework check records to establish an agreed selection of records or criteria for comparative quotes. These files do not have to eliminate every technical risk; however, they do have to provide the same basis and requirement for solder paste setup, placement, hidden-joint inspections, thermal handling, and records after assembly.
In the procurement process, the benefit of comparing different quotations is to determine not only "which quote is lower?" but "what records, exclusions, provisional assumptions, and approval limitations are included?" This will affect the pricing of both Micro-BGA and 01005 work, because the cost driver could be inspection requirements, stencil/paste setup, clarification of files, or controlled limits of rework rather than simply the placement of components.
When Inspection or Rework Scope Differs
When comparing quotes, the requirement to include a comparison of inspection or rework with differing levels of scope makes it difficult to compare prices accurately. A quote that does not include hidden-joint imaging, SPI, MSL or floor-life handling, test-access limits, or rework records could still be valid but should be viewed as a different coverage level. A price that looks cleaner may reflect fewer returned records, fewer defined checks, or more assumptions being made.
Before proceeding to price comparison, buyers should ask which records will be returned, which checks will not be included, which assumptions will be provisionally held open, and which of those elements will require approval prior to proceeding to production. This checklist will help prevent a Micro-BGA or 01005 quote from appearing to be less expensive simply because some elements of solder paste check, X-ray or AXI, test-access limits, or rework were omitted from the quote.
Micro-BGA and 01005 Assembly FAQ
Frequent inquiries about the assembly of Micro-BGA and 01005 component types are made about package definition, and the response usually includes the need for the following production files and checks: files, placement, solder paste, inspection, and rework limits. Below are the answers to the above questions, specific to OEM PCBA assembly. They are not applicable to mobile device, computer, laptop, or hand-soldering repairs.
01005 components are very small surface-mount passive packages used for components like resistors and capacitors. The size code not only identifies the size of the package but also affects pad geometry, solder paste volume, feeder configuration, placement tolerances, and inspection planning on OEM PCBA assemblies. Therefore, before the assembly is considered stable, a review of the BOM, package datasheet, Gerber or ODB++ data, CPL, and assembly drawings should be conducted for all 01005 parts included in a project.
Component thickness is dependent on the manufacturer, part series, and package datasheet. The size code alone is not a sufficient basis for determining component thickness. For assembly evaluation, package drawing or datasheet is the most useful, since the height of the component can affect feeder configuration choices, nozzle configuration, clearance between neighboring parts, and inspection planning.
A Micro-BGA is a fine-pitch ball-grid-array (BGA) package with the solder joints hidden under the package body. As the solder joints are not accessible from the outside, the assembly evaluation must include the ball map, package outline, pin-1 orientation, placement side, and inspection position. While AOI may identify visible placement issues, X-ray or AXI may identify issues that are not visible, such as lack of solder at the interface between the BGA and PCB.
BGA is a larger package family, while Micro-BGA refers to a smaller version, usually with smaller ball pitch, of BGA. The Micro-BGA requires more sensitive control over placement tolerance, solder paste control, and hidden-joint inspection, and thus requires the Micro-BGA package data to be properly defined before building the PCBA.
SMT and BGA are different. SMT refers to the type of assembly used to attach components onto a PCB surface. BGA is a type of package that can be assembled using SMT. In other words, this assembly category relates to SMT assembly due to the risks associated with surface-mount placement, solder paste application, reflow, inspection, and rework of Micro-BGA and 01005 packages, while broader BGA packages are concerned with a broader BGA assembly service.
Solder paste is normally required for SMT assembly of BGA packages. For BGA assembly, the solder paste and stencil process on the PCB pads and the balls on the BGA must be defined according to package data and PCB layout before production. For Micro-BGA work, solder paste record before reflow can help explain later X-ray or AXI findings.
BGA solder joints are not easy to visually inspect because they are hidden under the package. The factors that contribute to the difficulty of inspecting BGA joints in a production environment consist of how the package data, solder paste deposition, component placement, reflow process, and hidden-joint inspection are defined. Micro-BGA packages have tighter placement tolerance, resulting in greater difficulty in visual inspection of the BGA joints. When quoting a price for production assembly of Micro-BGA packages, it will be necessary to know whether X-ray or AXI will be included prior to making a decision to build.
Solder paste printing is the process of applying solder paste onto PCB pads in a controlled manner. When printing on the PCB pads for a Micro-BGA or 01005, there are many variables to consider when it comes to stencil design. Each of the factors listed above can contribute to defects such as tombstoning, solder bridges, open joints, and solder starvation. Therefore, using SPI can confirm the solder paste height, area, volume, or offset before the reflow process.
Hand soldering of BGA packages is typically not a preferred method of assembling OEM PCBA assemblies. The assembly of BGA and Micro-BGA packages requires controlled solder paste printing, controlled placement onto the PCB, the reflow process, and hidden-joint inspection of the BGA packages. If you are looking for phone, tablet, or laptop repair, this type of solution is outside our production services. For production boards, you will want to evaluate the condition of the package, the board, the inspection history, and the limits of rework. If those conditions are met, then a controlled assembly or rework method can be considered for BGA assembly or rework.
BGA reballing is the act of adding or repairing the solder ball connections on a BGA component, most often performed during rework or repair, and it should not be considered a default recovery option for PCBAs. There are several factors that need to be evaluated in order to determine whether to perform reballing as a rework option. These factors include the general condition of the BGA package, the general condition of the PCB, the integrity of the pads on the PCB, any underfill that may be present, the previous thermal history of the BGA over the course of the manufacturing process, and whether there is a controlled process following the rework for performing inspection. If you do not have access to the records for the above items, you cannot promise to perform any repair, only that you will evaluate the feasibility of the rework before proceeding.
